ZRE143L-GEXGKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 3ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

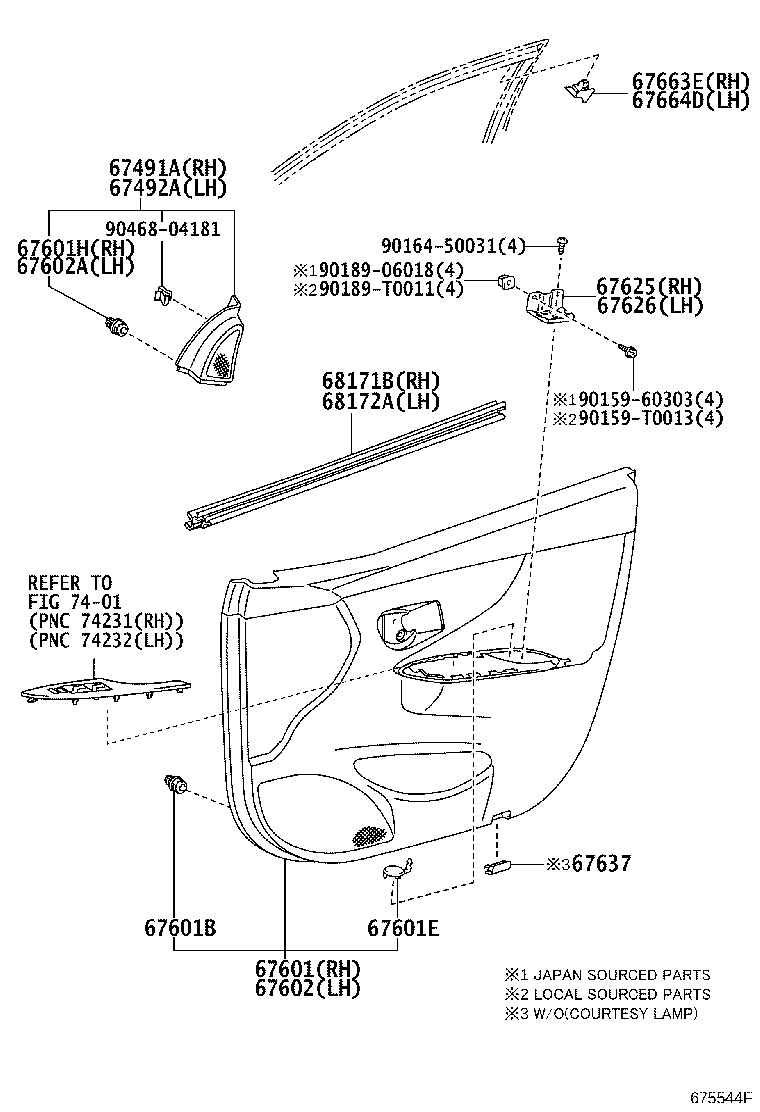

ILLUST NO. 2 OF 2(0712- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67491A 67492A 67601 67601B 67601E 67601H 67602 67602A 67625 67626 67637 67663E 67664D 68171B 68172A 7401 9015960303 90159T0013 9016450031 9018906018 90189T0011 9046804181
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-02330

ZRE143..(20G,20V)..TAIW

 1
67491-02330

ZRE143..TAIW

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-02330

ZRE143..(20G,20V)..TAIW

 1
67492-02330

ZRE143..TAIW

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-02M81E1

ZRE142,143..(18E,20G,G)..TAIW

GREGE,TRIM4#

 1
67610-02M81B2

ZRE142,143..(18E,G)..TAIW

DK.GRAY,TRIM12

 1
67610-02M81B2

ZRE142,143..(18E,G)..TAIW

DK.GRAY,TRIM1#

 1
67610-02M81B4

ZRE142,143..(18E,G)..TAIW

DK.GRAY/GRAY,TRIM13

 1
67610-02M81B2

ZRE143..20G..TAIW

DK.GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 20
90467-09206

ZRE14#..GCC,TAIW

 20
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
74223-02050B1

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

DK.GRAY,TRIM12

 2
74223-02050E0

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

GREGE,TRIM4#

 2
74223-02050B0

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

GRAY,TRIM11

 2
74223-02050B1

ZRE142,143..(18E,20G,G)..TAIW

DK.GRAY,TRIM1#

 2
74223-02050E0

ZRE14#..LHD..(18E,20G,G,GLI,XLI)

GREGE,TRIM4#

 2
67601H - RETAINER, DOOR TRIM, RH
67771-12060

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
67771-12060

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE143..CVFC..(TAIW,VN);ZRE142..GCC,IND,TAIW,VN;ZRE141,142..6F..(IDN,TH);CE140,NDE140,NZE140,ZRE141..(16E,16G,20D,20DSA,D,E,G,GLI,N,XLI)..(GCC,IND,MA,PKN,TH)

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-02M81B2

ZRE142,143..(18E,G)..TAIW

DK.GRAY,TRIM1#

 1
67620-02M81E1

ZRE142,143..(18E,20G,G)..TAIW

GREGE,TRIM4#

 1
67620-02M81B4

ZRE142,143..(18E,G)..TAIW

DK.GRAY/GRAY,TRIM13

 1
67620-02M81B2

ZRE142,143..(18E,G)..TAIW

DK.GRAY,TRIM12

 1
67620-02M81B2

ZRE143..20G..TAIW

DK.GRAY,TRIM1#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-12060

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
67771-12060

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE143..CVFC..(TAIW,VN);ZRE142..GCC,IND,TAIW,VN;ZRE141,142..6F..(IDN,TH);CE140,NDE140,NZE140,ZRE141..(16E,16G,20D,20DSA,D,E,G,GLI,N,XLI)..(GCC,IND,MA,PKN,TH)

 1
67625 - BRACKET, FRONT DOOR TRIM, RH
67625-02150

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

 1
67625-02150

ZRE142,143..TAIW

 1
67626 - BRACKET, FRONT DOOR TRIM, LH
67625-02150

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

 1
67625-02150

ZRE142,143..TAIW

 1
67663E - GARNISH, DOOR FRAME, RH
67663-48010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
67663-48010

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
67664D - GARNISH, DOOR FRAME, LH
67664-48010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
67664-48010

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-02220

ZRE14#..GCC,TAIW

 1
68171-02220

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-02210

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
68172-02210

ZRE14#..GCC,TAIW

 1
Common parts
90159-60303
90159-T0013
90164-50031
90189-06018
90189-T0011
90468-04181
Linked diagrams
7401
