ZRE143L-GEXGKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 3ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )

Click highlighted areas on diagram

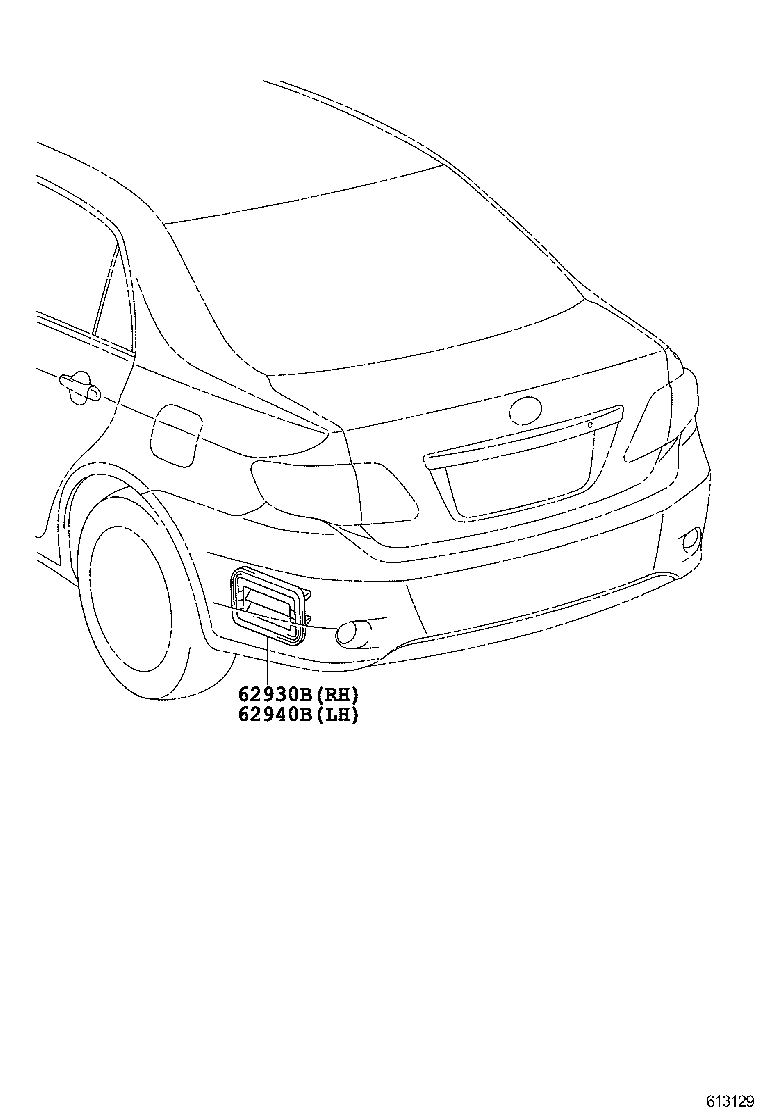

diagram 62930B 62940B
Part # Description Qty Price
62930B - DUCT ASSY, QUARTER VENT, RH
62940-06030

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC

 1
62940-06030

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-06030

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
62940-06030

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC

 1
