ZRE143L-GEXGKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 3ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )GCC,TAIW ; (1008- )IDN,MA,PHL,TH ;(1010- )VN ; (1104- )PKN ; (

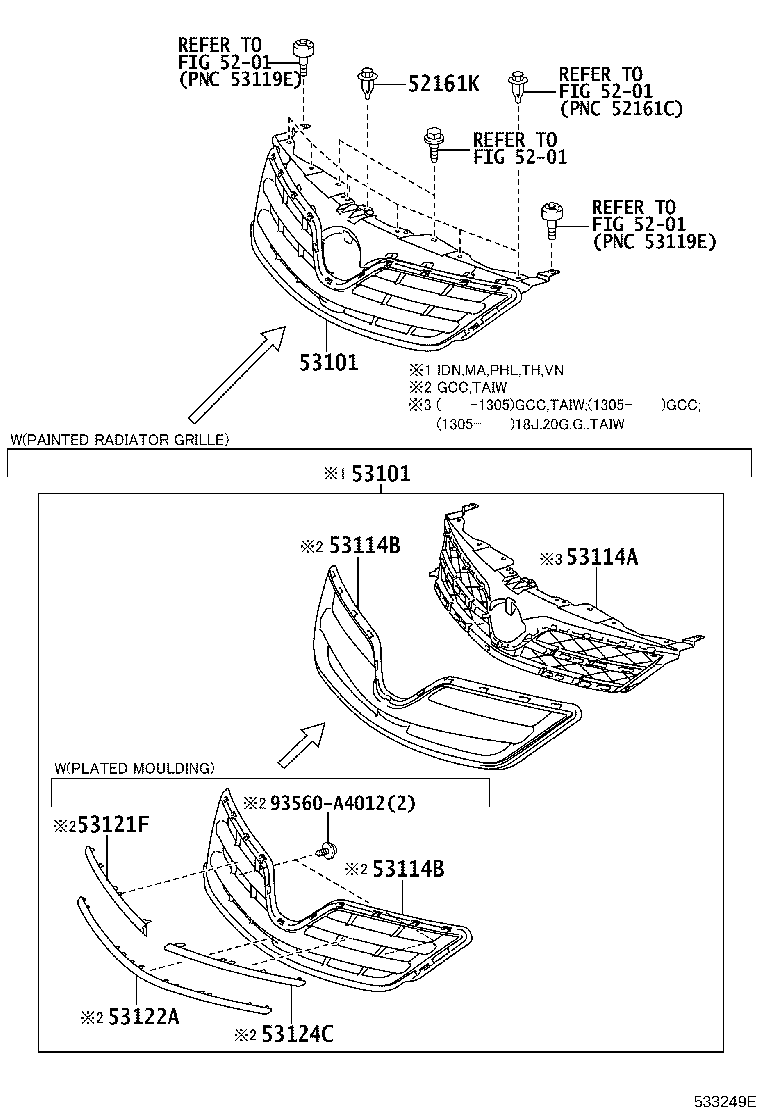

Click highlighted areas on diagram

diagram 5201 5201 5201 5201 52161K 53101 53101 53114A 53114B 53114B 53121F 53122A 53124C 93560A4012
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-16010

CE140,NDE140,NZE140,ZRE14#..GCC,IND,PKN,TAIW

 1
53114A - GRILLE, RADIATOR, INNER
53114-02230

ZRE142,143..(18J,20G,G)..TAIW

 1
53114-02240

ZRE143..G

GRADE MARK : 2.0Z

 1
53114B - GRILLE, RADIATOR, UPPER
53111-02904

ZRE142,143..(18J,20G,G)..TAIW

 1
53111-02905

ZRE143..G

GRADE MARK : 2.0Z

 1
53114B - GRILLE, RADIATOR, UPPER
53111-02904

ZRE142,143..(18J,20G,G)..TAIW

 1
53111-02905

ZRE143..G

GRADE MARK : 2.0Z

 1
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-02120

ZRE142,143..TAIW

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-02110

ZRE142,143..TAIW

 1
53124C - MOULDING, RADIATOR GRILLE, UPPER LH
53124-02110

ZRE142,143..TAIW

 1
Common parts
93560-A4012
Linked diagrams
5201
