ZRE143L-GEXGKR (2010)
Toyota Corolla/Altis
ILLUST NO. 1 OF 2(0712- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02600 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 47311-02600 |
ZRE142,143..GCC,TAIW |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 90412-10260 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI);ZRE141,142..(16E,16G,16V,18E,18J,D,GLI,N,XLI)..(GCC,IDN,MA,PHL,PKN,TAIW,TH)..HTWC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02500 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 47312-02500 |
ZRE142,143..GCC,TAIW |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02550 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 47313-02550 |
ZRE142,143..GCC,TAIW |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2043 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 90947-T2043 |
ZRE14#..GCC,TAIW |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 90401-10058 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 90401-10058 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2044 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 90947-T2044 |
ZRE14#..GCC,TAIW |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02550 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 47314-02550 |
ZRE142,143..GCC,TAIW |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02300 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 47315-02300 |
ZRE14#..GCC,TAIW |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02470 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 47317-02670 |
ZRE142,143..GCC,TAIW |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02490 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 47318-02690 |
ZRE142,143..GCC,TAIW |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 90401-10058 |
ZRE142..HTWCF;ZRE142,ZZE141..(16G,18J,LIMO)..(TAIW,TH);ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);ZRE141,142..(16V,18E,18J)..(IND,PHL,TH)..HTWC;ZRE142..(18E,18G,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 90401-10058 |
ZRE142..HTWCF;ZRE142,ZZE141..(16G,18J,LIMO)..(TAIW,TH);ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);ZRE141,142..(16V,18E,18J)..(IND,PHL,TH)..HTWC;ZRE142..(18E,18G,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE142..HTWCF;ZRE142,ZZE141..(16G,18J,LIMO)..(TAIW,TH);ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);ZRE141,142..(16V,18E,18J)..(IND,PHL,TH)..HTWC;ZRE142..(18E,18G,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE142..HTWCF;ZRE142,ZZE141..(16G,18J,LIMO)..(TAIW,TH);ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);ZRE141,142..(16V,18E,18J)..(IND,PHL,TH)..HTWC;ZRE142..(18E,18G,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2047 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 90947-T2047 |
ZRE142..HTWCF;ZRE142,ZZE141..(16G,18J,LIMO)..(TAIW,TH);ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);ZRE141,142..(16V,18E,18J)..(IND,PHL,TH)..HTWC;ZRE142..(18E,18G,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2048 |
ZRE142..HTWCF;ZRE142,ZZE141..(16G,18J,LIMO)..(TAIW,TH);ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);ZRE141,142..(16V,18E,18J)..(IND,PHL,TH)..HTWC;ZRE142..(18E,18G,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 90947-T2048 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02270 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 47321-02270 |
ZRE14#..GCC,TAIW |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02270 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 47322-02270 |
ZRE14#..GCC,TAIW |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04050 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 90949-04050 |
ZRE141,142..LHD;ZRE143..LHD..CVFC |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-12240 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 47371-12240 |
ZRE141,142..LHD;ZRE143..LHD..CVFC |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01C82 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 90949-01C82 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01D17 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
3 | ||
| 90949-01D17 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
3 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01C82 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D17 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01D79 |
ZRE143..LHD..CVFC |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-01D81 |
ZRE143..LHD..CVFC |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D28 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 90949-01D28 |
ZRE143..LHD..CVFC |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00904 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 90464-00904 |
ZRE141,142..LHD;ZRE143..LHD..CVFC |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01C51 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 90949-01C51 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00857 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-12050 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 47391-12050 |
ZRE141,142..LHD;ZRE143..LHD..CVFC |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-02020 |
ZRE143..TAIW |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0229 | ||||
| 90119-T0319 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90468-T0004 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

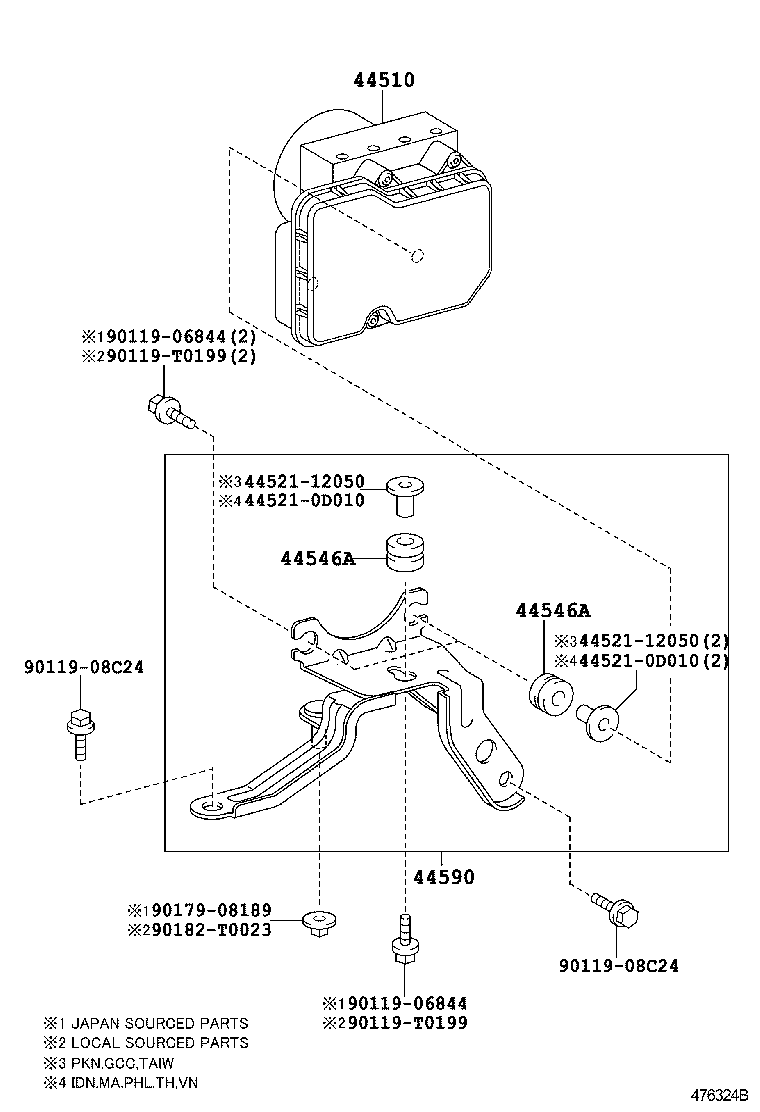

ILLUST NO. 2 OF 2(0712- )ZRE14#,ZZE141..16E,16G,16V,18E,18EL,18G,18J,20E,20G,D,G,GLI,N,XLI..GCC,I
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-02380 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 44050-02380 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 44050-02380 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 44050-02380 |
ZRE142,143..GCC,TAIW |
1 | ||
| 44050-02380 |
ZRE142,143..GCC,TAIW |
1 | ||
| 44050-02380 |
ZRE142,143..GCC,TAIW |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
3 | ||
| 44546-12110 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
3 | ||
| 44546-12110 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
3 | ||
| 44546-12110 |
ZRE142..GCC,TAIW;CE140,NZE140,ZRE141,143..(20DSA,20G,D,G,GLI,N)..(PKN,TAIW) |
3 | ||
| 44546-12110 |
ZRE142..GCC,TAIW;CE140,NZE140,ZRE141,143..(20DSA,20G,D,G,GLI,N)..(PKN,TAIW) |
3 | ||
| 44546-12110 |
ZRE142..GCC,TAIW;CE140,NZE140,ZRE141,143..(20DSA,20G,D,G,GLI,N)..(PKN,TAIW) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
3 | ||
| 44546-12110 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
3 | ||
| 44546-12110 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
3 | ||
| 44546-12110 |
ZRE142..GCC,TAIW;CE140,NZE140,ZRE141,143..(20DSA,20G,D,G,GLI,N)..(PKN,TAIW) |
3 | ||
| 44546-12110 |
ZRE142..GCC,TAIW;CE140,NZE140,ZRE141,143..(20DSA,20G,D,G,GLI,N)..(PKN,TAIW) |
3 | ||
| 44546-12110 |
ZRE142..GCC,TAIW;CE140,NZE140,ZRE141,143..(20DSA,20G,D,G,GLI,N)..(PKN,TAIW) |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02240 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 44590-02240 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 44590-02240 |
ZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI) |
1 | ||
| 44590-02240 |
ZRE142,143..GCC,TAIW |
1 | ||
| 44590-02240 |
ZRE142,143..GCC,TAIW |
1 | ||
| 44590-02240 |
ZRE142,143..GCC,TAIW |
1 | ||
| Common parts | ||||
| 44521-0D010 | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 90119-08C24 | ||||
| 90119-T0199 | ||||
| 90179-08189 | ||||
| 90182-T0023 | ||||
