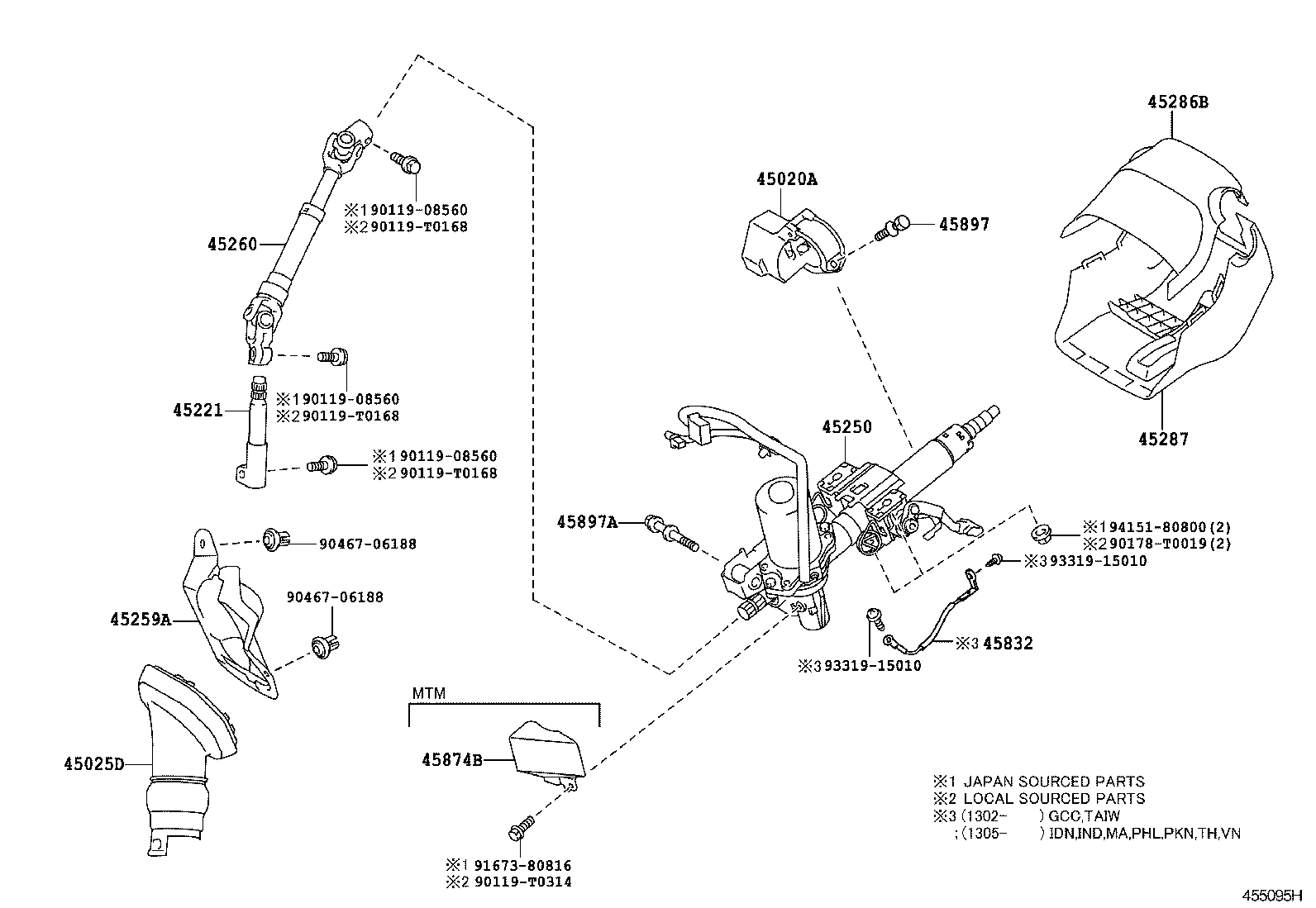

ZRE143L-GEXGKR (2010)
Toyota Corolla/Altis
(0712- )NDE140,NZE140,ZRE141,143,ZZE142..16E,16G,16J,18E,18G,18J,18V,20G,ALT,D,E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45025-02150 |
ZRE14#..GCC,TAIW |
1 | ||
| 45025-02150 |
ZRE14#..GCC,TAIW |
1 | ||
| 45025-02150 |
ZRE14#..GCC,TAIW |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221-12350 |
ZRE14#..GCC,TAIW |
1 | ||
| 45221-12350 |
ZRE14#..GCC,TAIW |
1 | ||
| 45221-12350 |
ZRE14#..GCC,TAIW |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-12D42 |
ZRE143..TAIW |
1 | ||
| 45250-12D42 |
ZRE143..TAIW |
1 | ||
| 45250-12D42 |
ZRE143..TAIW |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45259-02140 |
ZRE14#..GCC,TAIW |
1 | ||
| 45259-02140 |
ZRE14#..GCC,TAIW |
1 | ||
| 45259-02140 |
ZRE14#..GCC,TAIW |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260-12620 |
ZRE14#..GCC,TAIW |
1 | ||
| 45260-12620 |
ZRE14#..GCC,TAIW |
1 | ||
| 45260-12620 |
ZRE14#..GCC,TAIW |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-02390B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02390B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02390B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02390E0 |
ZRE143..20G..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45286-02390E0 |
ZRE143..20G..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45286-02390E0 |
ZRE143..20G..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45286-02350B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-02350B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-02350B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-02340B0 |
ZRE143..(20G,20V)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45287-02340B0 |
ZRE143..(20G,20V)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45287-02340B0 |
ZRE143..(20G,20V)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45287-02340E0 |
ZRE143..(20G,20V)..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45287-02340E0 |
ZRE143..(20G,20V)..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45287-02340E0 |
ZRE143..(20G,20V)..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45287-02340B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45287-02340B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45287-02340B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45832 - CABLE, TILT STEERING SUPPORT BOND | ||||
| 45832-21010 |
ZRE14#..GCC,TAIW |
1 | ||
| 45832-21010 |
ZRE14#..GCC,TAIW |
1 | ||
| 45832-21010 |
ZRE14#..GCC,TAIW |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-12020 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-12020 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-42010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-42010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-42010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-T0168 | ||||
| 90119-T0314 | ||||
| 90178-T0019 | ||||
| 90467-06188 | ||||
| 91673-80816 | ||||
| 93319-15010 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0712- )ZRE142,143,ZZE141..16E,16G,16J,16V,18E,18EL,18G,18J,20E,E,GLI,LIMO,XLI..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45025-02150 |
ZRE14#..GCC,TAIW |
1 | ||
| 45025-02150 |
ZRE14#..GCC,TAIW |
1 | ||
| 45025-02150 |
ZRE14#..GCC,TAIW |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221-12350 |
ZRE14#..GCC,TAIW |
1 | ||
| 45221-12350 |
ZRE14#..GCC,TAIW |
1 | ||
| 45221-12350 |
ZRE14#..GCC,TAIW |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-12D42 |
ZRE143..TAIW |
1 | ||
| 45250-12D42 |
ZRE143..TAIW |
1 | ||
| 45250-12D42 |
ZRE143..TAIW |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45259-02140 |
ZRE14#..GCC,TAIW |
1 | ||
| 45259-02140 |
ZRE14#..GCC,TAIW |
1 | ||
| 45259-02140 |
ZRE14#..GCC,TAIW |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260-12620 |
ZRE14#..GCC,TAIW |
1 | ||
| 45260-12620 |
ZRE14#..GCC,TAIW |
1 | ||
| 45260-12620 |
ZRE14#..GCC,TAIW |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-02390B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02390B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02390B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02390E0 |
ZRE143..20G..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45286-02390E0 |
ZRE143..20G..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45286-02390E0 |
ZRE143..20G..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45286-02350B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-02350B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-02350B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-02340B0 |
ZRE143..(20G,20V)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45287-02340B0 |
ZRE143..(20G,20V)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45287-02340B0 |
ZRE143..(20G,20V)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45287-02340E0 |
ZRE143..(20G,20V)..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45287-02340E0 |
ZRE143..(20G,20V)..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45287-02340E0 |
ZRE143..(20G,20V)..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45287-02340B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45287-02340B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45287-02340B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45832 - CABLE, TILT STEERING SUPPORT BOND | ||||
| 45832-21010 |
ZRE14#..GCC,TAIW |
1 | ||
| 45832-21010 |
ZRE14#..GCC,TAIW |
1 | ||
| 45832-21010 |
ZRE14#..GCC,TAIW |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-12020 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-12020 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-42010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-42010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-42010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-T0168 | ||||
| 90119-T0314 | ||||
| 90178-T0019 | ||||
| 90467-06188 | ||||
| 91673-80816 | ||||
| 93319-15010 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0712- )ZRE142,143..6F,CVFC..18V,20V,G..IDN,IND,PHL,TAIW,TH
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-42150 |
ZRE14#..(16V,18G,20G)..(IDN,PHL,TAIW);ZRE142,143..(6F,CVFC)..(18V,20V,G)..(IDN,IND,PHL,TAIW,TH,VN) |
1 | ||
| 45020-42150 |
ZRE14#..(16V,18G,20G)..(IDN,PHL,TAIW);ZRE142,143..(6F,CVFC)..(18V,20V,G)..(IDN,IND,PHL,TAIW,TH,VN) |
1 | ||
| 45020-42150 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 45020-42150 |
ZRE143..(20G,20V)..TAIW |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45025-02150 |
ZRE14#..GCC,TAIW |
1 | ||
| 45025-02150 |
ZRE14#..GCC,TAIW |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221-12350 |
ZRE14#..GCC,TAIW |
1 | ||
| 45221-12350 |
ZRE14#..GCC,TAIW |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-12D42 |
ZRE143..TAIW |
1 | ||
| 45250-12D42 |
ZRE143..TAIW |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45259-02140 |
ZRE14#..GCC,TAIW |
1 | ||
| 45259-02140 |
ZRE14#..GCC,TAIW |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260-12620 |
ZRE14#..GCC,TAIW |
1 | ||
| 45260-12620 |
ZRE14#..GCC,TAIW |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-02390B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02390B0 |
ZRE143..20G..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02390E0 |
ZRE143..20G..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45286-02390E0 |
ZRE143..20G..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45286-02350B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-02350B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-02340B0 |
ZRE143..(20G,20V)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45287-02340B0 |
ZRE143..(20G,20V)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45287-02340E0 |
ZRE143..(20G,20V)..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45287-02340E0 |
ZRE143..(20G,20V)..TAIW ASH BROWN,TRIM4# |
1 | ||
| 45287-02340B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45287-02340B0 |
ZRE143..TAIW DK.GRAY,TRIM1#,4# |
1 | ||
| 45832 - CABLE, TILT STEERING SUPPORT BOND | ||||
| 45832-21010 |
ZRE14#..GCC,TAIW |
1 | ||
| 45832-21010 |
ZRE14#..GCC,TAIW |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-12020 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-42010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 45897-42010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-T0168 | ||||
| 90119-T0314 | ||||
| 90178-T0019 | ||||
| 90467-06188 | ||||
| 91673-80816 | ||||
| 93319-15010 | ||||
| 94151-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
