ZRE143L-GEXGKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 3ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0712- )LHD..ATM

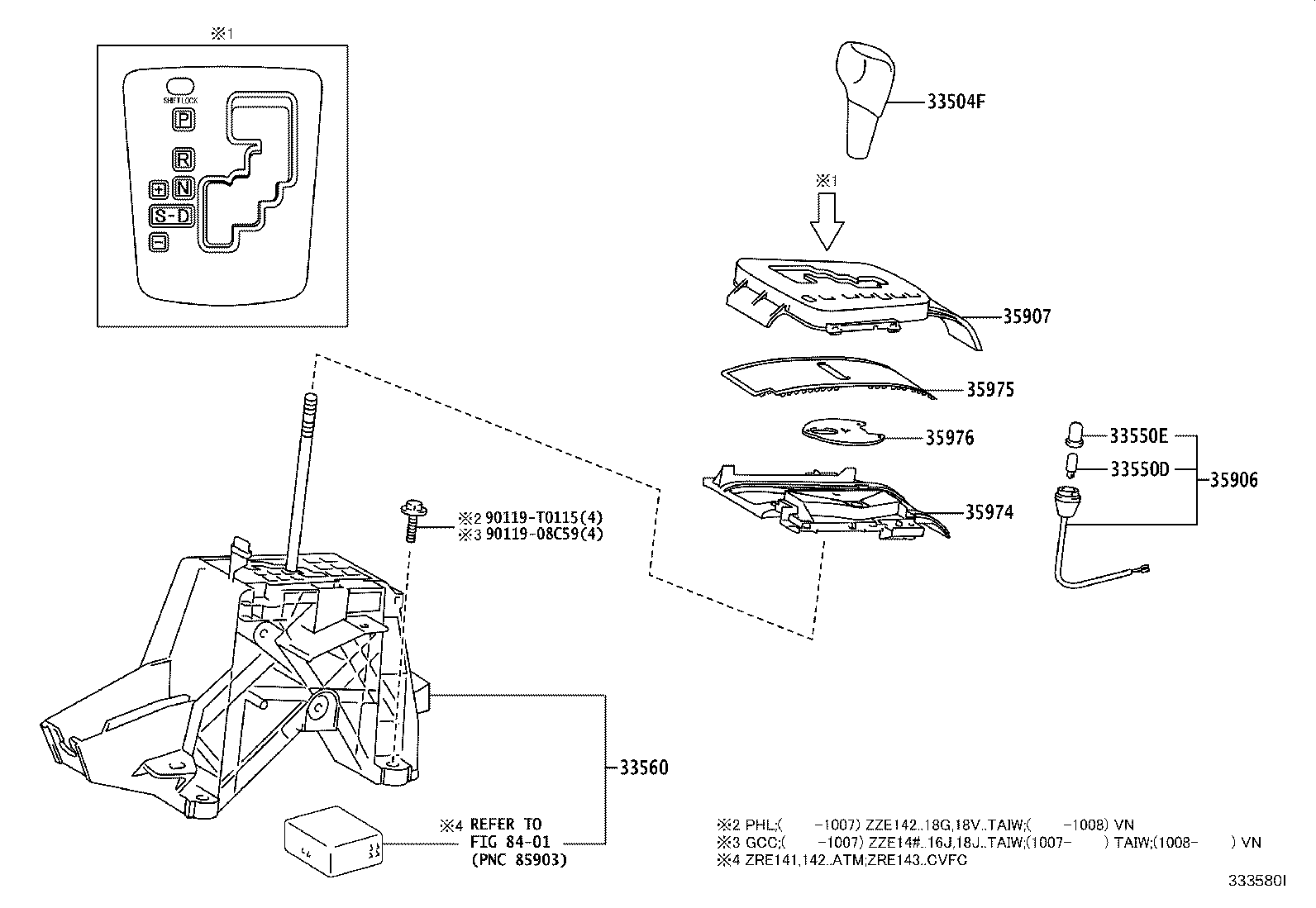

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33560 35906 35907 35974 35975 35976 8401 9011908C59 90119T0115
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-06100E0

ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI)..(GCC,TAIW)

ASH BROWN,TRIM4#

 1
33504-06100B0

ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI)..(GCC,TAIW)

DK.GRAY,TRIM1#

 1
33504-06100B0

ZRE142,143..LHD..(18E,20G,G,GLI)

DK.GRAY,TRIM1#,4#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

12V 1.2W W/O SOCKET

 1
90981-11018

ZRE143..LHD..CVFC;ZRE141,142..LHD..ATM

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04071

ZRE143..LHD..CVFC;ZRE141,142..LHD..ATM

 1
90339-04071

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-02100

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

 1
33560-02100

ZRE142,143..LHD..CVFC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12270

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
35906-12270

ZRE143..LHD..CVFC;ZRE141,142..LHD..ATM

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-02200

ZRE142,143..LHD..CVFC..(18E,18G,20G,20V,G)

 1
35907-02070

ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-02070

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
35974-02070

ZRE143..LHD..CVFC;ZRE141,142..LHD..ATM

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-02080

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
35975-02080

ZRE143..LHD..CVFC;ZRE141,142..LHD..ATM

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-02060

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
35976-02060

ZRE143..LHD..CVFC;ZRE141,142..LHD..ATM

 1
Common parts
90119-08C59
90119-T0115
Linked diagrams
8401
