ZRE143L-GEXGKR (2010)
Toyota Corolla/Altis

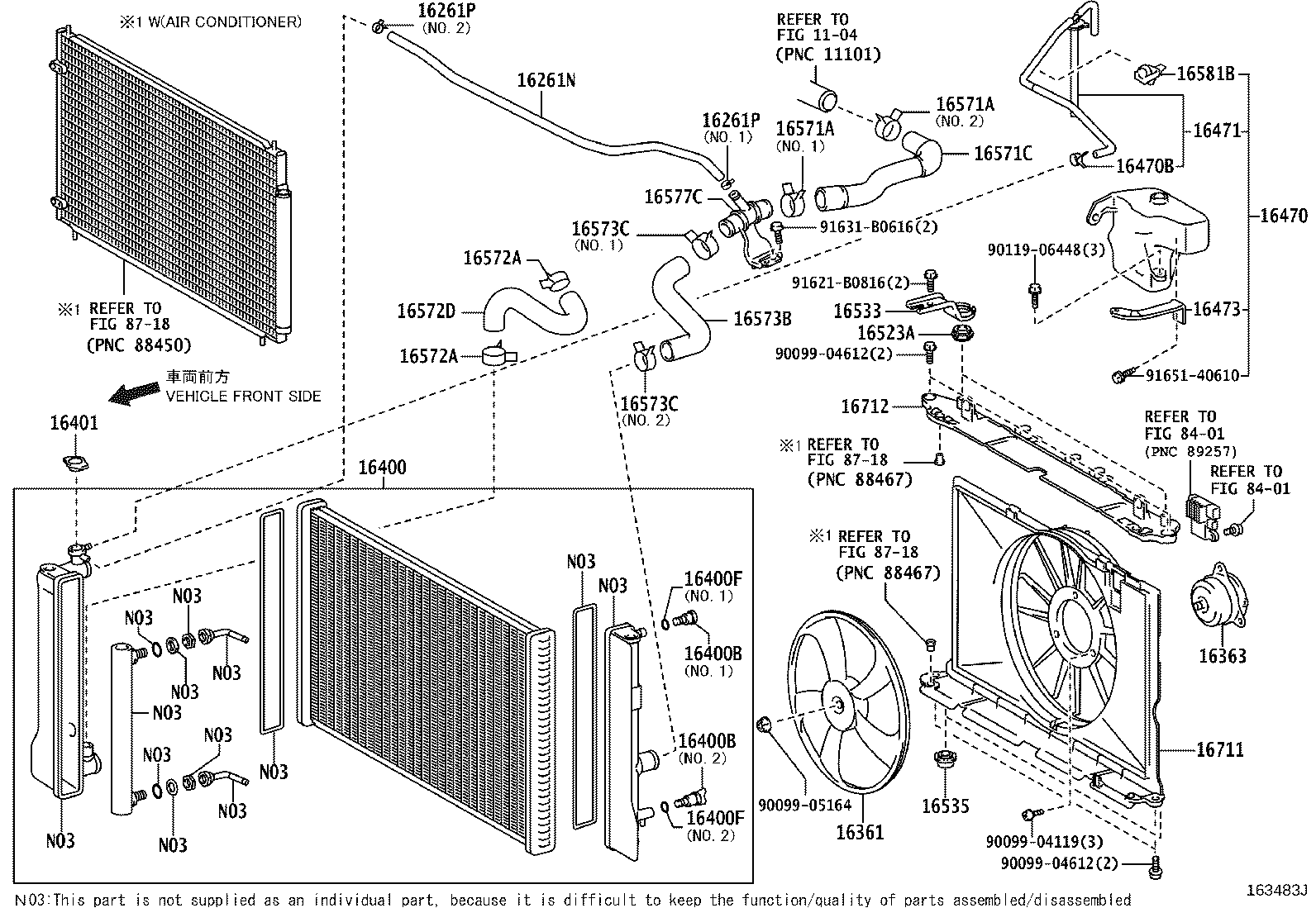

ILLUST NO. 1 OF 2(0712- )1Z#,2ZRFE,3Z#..GCC,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-0D180 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) (L) |
1 | ||
| 16261-0D181 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW (L) |
1 | ||
| 16261-0D180 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW (L) |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 90467-15022 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 96136-41901 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW NO.1 |
1 | ||
| 90467-15022 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW NO.2 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 90467-15022 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 96136-41901 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW NO.1 |
1 | ||
| 90467-15022 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW NO.2 |
1 | ||
| 16361 - FAN | ||||
| 16361-0D270 |
3ZRFE..ZRE143..CVFC;1ZRFE,2ZRFE..ZRE141,142..GCC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0D160 |
3ZRFE..ZRE143..CVFC;1ZRFE,2ZRFE..ZRE141,142..GCC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-0D430 |
1ZZFE,3ZRFE..ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 16410-0T060 |
2ZRFE,3ZRFE..ZRE142,143..TAIW |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1ZZFE,3ZRFE..ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW NO.2 |
1 | ||
| 16417-28530 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.1 |
1 | ||
| 16417-28530 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC NO.1 |
1 | ||
| 16417-0C180 |
2ZRFE..ZRE142..HTWCF;1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW NO.2 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1ZZFE,3ZRFE..ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW NO.2 |
1 | ||
| 16417-28530 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.1 |
1 | ||
| 16417-28530 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC NO.1 |
1 | ||
| 16417-0C180 |
2ZRFE..ZRE142..HTWCF;1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW NO.2 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-20290 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.1 |
1 | ||
| 16492-21050 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.2 |
1 | ||
| 16418-20290 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC NO.1 |
1 | ||
| 16492-21050 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC NO.2 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-20290 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.1 |
1 | ||
| 16492-21050 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.2 |
1 | ||
| 16418-20290 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC NO.1 |
1 | ||
| 16492-21050 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC NO.2 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0D060 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 16470-0D060 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11003 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 90466-11003 |
3ZRFE..ZRE143..CVFC;1ZRFE,2ZRFE..ZRE141,142;3ZZFE..ZZE141..(16G,LIMO)..TH |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0D110 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 16405-0D110 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 16473 - SUPPORT(FOR RADIATOR RESERVE TANK) | ||||
| 16473-64260 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 16473-64260 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D070 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 16523-0D070 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-0D070 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
2 | ||
| 16533-0D070 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0D150 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 16535-0D150 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.2 |
1 | ||
| 96136-44301 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.1 |
1 | ||
| 96136-43901 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC NO.2 |
1 | ||
| 96136-44301 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.2 |
1 | ||
| 96136-44301 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.1 |
1 | ||
| 96136-43901 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC NO.2 |
1 | ||
| 96136-44301 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC NO.1 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T230 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
2 | ||
| 96136-44301 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
2 | ||
| 96136-44301 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0T080 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0D080 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) (L) |
1 | ||
| 16573-0D080 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW (L) |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW NO.2 |
1 | ||
| 90466-35001 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.1 |
1 | ||
| 96136-44301 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.2 |
1 | ||
| 90466-35001 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW NO.1 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW NO.2 |
1 | ||
| 90466-35001 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.1 |
1 | ||
| 96136-44301 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) NO.2 |
1 | ||
| 90466-35001 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW NO.1 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-22040 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) (L) |
1 | ||
| 16577-22040 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW (L) |
1 | ||
| 16577-22031 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW (L) |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22130 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 16581-22130 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0D340 |
3ZRFE..ZRE143..CVFC |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0D180 |
1ZZFE,3ZRFE..ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 16712-0D180 |
2ZRFE,3ZRFE..ZRE142,143..TAIW |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06448 | ||||
| 91621-B0816 | ||||
| 91631-B0616 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8401 | ||||
| 8718 | ||||
ILLUST NO. 2 OF 2(1007- )3ZRFE..CVFC..TAIW,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-28040 |
3ZRFE..ZRE143..CVFC |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0T120 |
2ZRFE,3ZRFE..ZRE142,143..6F,CVFC (L) |
1 | ||
| 16261-37051 |
2ZRFE,3ZRFE..ZRE142,143..6F,CVFC (J) |
1 | ||
| 16261-0T121 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);2ZRFE,3ZRFE..ZRE142,143..(18E,18J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH,VN)..HTWC (L) |
1 | ||
| 16261-37052 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);2ZRFE,3ZRFE..ZRE142,143..(18E,18J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH,VN)..HTWC (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) (J) |
1 | ||
| 16262-0T020 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC (L) |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90466-T0020 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN (L) |
2 | ||
| 96136-42501 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN (J) |
2 | ||
| 96136-42501 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90466-T0020 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN (L) |
2 | ||
| 96136-42501 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN (J) |
2 | ||
| 96136-42501 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37041 |
2ZRFE,3ZRFE..ZRE142,143..6F,CVFC (J) |
1 | ||
| 16264-0T080 |
2ZRFE,3ZRFE..ZRE142,143..6F,CVFC (L) |
1 | ||
| 16264-0T081 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);2ZRFE,3ZRFE..ZRE142,143..(18E,18J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH,VN)..HTWC (L) |
1 | ||
| 16264-37042 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);2ZRFE,3ZRFE..ZRE142,143..(18E,18J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH,VN)..HTWC (J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0T050 |
3ZRFE..ZRE143..CVFC (L) |
1 | ||
| 16267-37020 |
3ZRFE..ZRE143..CVFC (J) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
3ZRFE..ZRE143..CVFC NO.1 |
1 | ||
| 96136-52701 |
3ZRFE..ZRE143..CVFC NO.2 |
1 | ||
| 96136-42501 |
3ZRFE..ZRE143 (J),NO.1 |
1 | ||
| 90466-T0020 |
3ZRFE..ZRE143 (L),NO.1 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
3ZRFE..ZRE143..CVFC NO.1 |
1 | ||
| 96136-52701 |
3ZRFE..ZRE143..CVFC NO.2 |
1 | ||
| 96136-42501 |
3ZRFE..ZRE143 (J),NO.1 |
1 | ||
| 90466-T0020 |
3ZRFE..ZRE143 (L),NO.1 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-37010 |
3ZRFE..ZRE143..CVFC..(TAIW,VN) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37030 |
3ZRFE..ZRE143..CVFC |
1 | ||
| 16323-37031 |
3ZRFE..ZRE143 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) TYPE A:REFER ILLUST. |
1 | ||
| 16325-0H020 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC TYPE B:REFER ILLUST. |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03145 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) *WAX 82-95,FUJISEIKO |
1 | ||
| 90916-03144 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) *WAX 82-95,KUZEH |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21030 |
3ZRFE..ZRE143..CVFC;2ZRFE..ZRE142..CVFC..(IND,TAIW,VN) NO.1 |
1 | ||
| 16581-37010 |
3ZRFE..ZRE143..CVFC..(TAIW,VN) NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21030 |
3ZRFE..ZRE143..CVFC;2ZRFE..ZRE142..CVFC..(IND,TAIW,VN) NO.1 |
1 | ||
| 16581-37010 |
3ZRFE..ZRE143..CVFC..(TAIW,VN) NO.2 |
1 | ||
| Common parts | ||||
| 82715-28L80 | ||||
| 90105-08433 | ||||
| 90116-06127 | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 90178-T0018 | ||||
| 90464-00934 | ||||
| 91551-80825 | ||||
| 91553-F0830 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3401 | ||||
| 3414 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
