ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0712- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0811- )ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN

Click highlighted areas on diagram

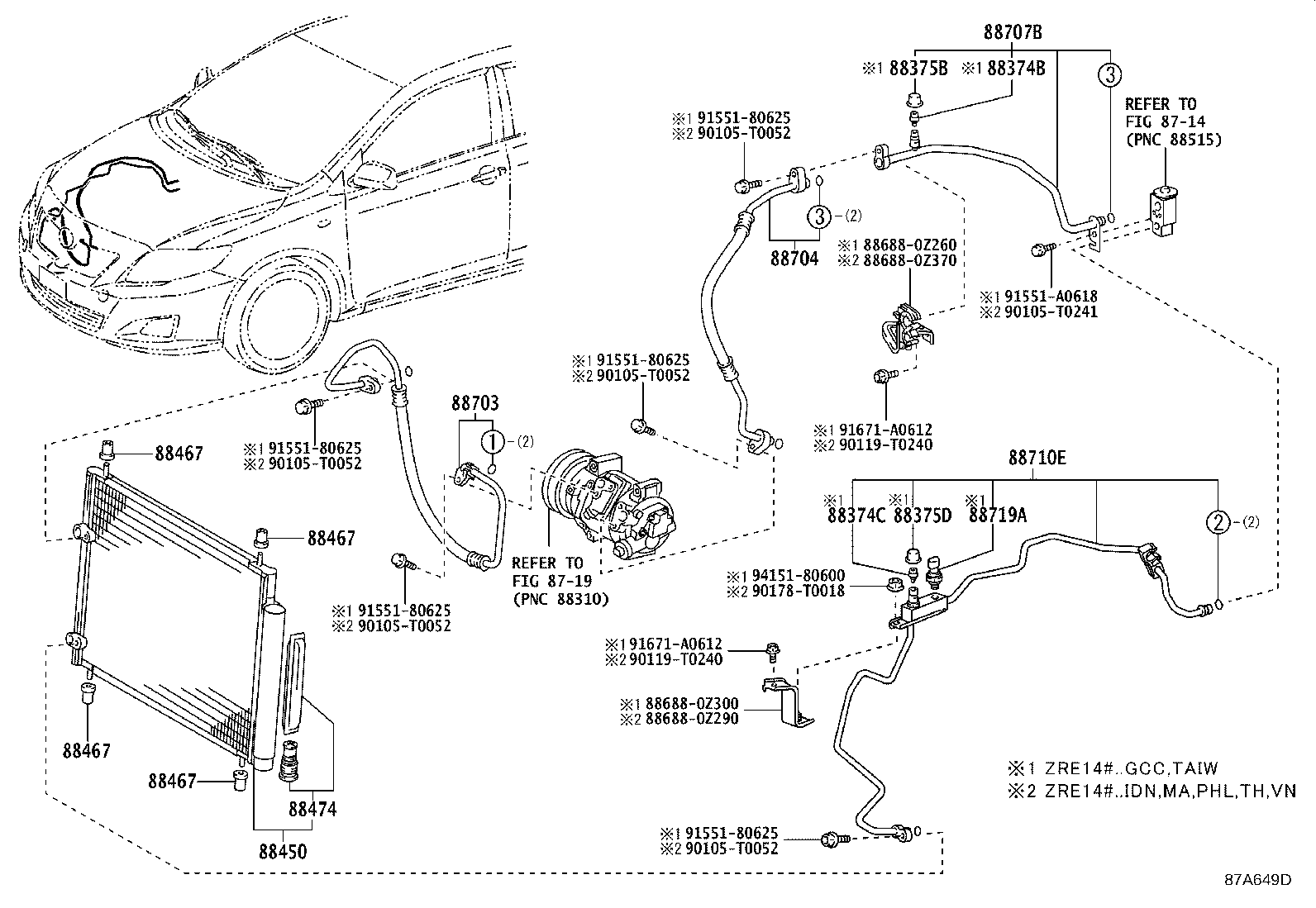

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88467 88467 88474 886880Z260 886880Z290 886880Z300 886880Z370 88703 88704 88707B 88710E 88719A 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0240 90119T0240 90178T0018 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 91671A0612 91671A0612 9415180600
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02360

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 4
88474 - DRYER, COOLER
88474-17010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02660

ZRE143..TAIW

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0Z020

ZRE143..TAIW

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-02100

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0Z230

ZRE143..TAIW

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ZRE143,ZZE14#..(20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
Common parts
88688-0Z260
88688-0Z290
88688-0Z300
88688-0Z370
90105-T0052
90105-T0241
90119-T0240
90178-T0018
91551-80625
91551-A0618
91671-A0612
94151-80600
