ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )ZRE14#

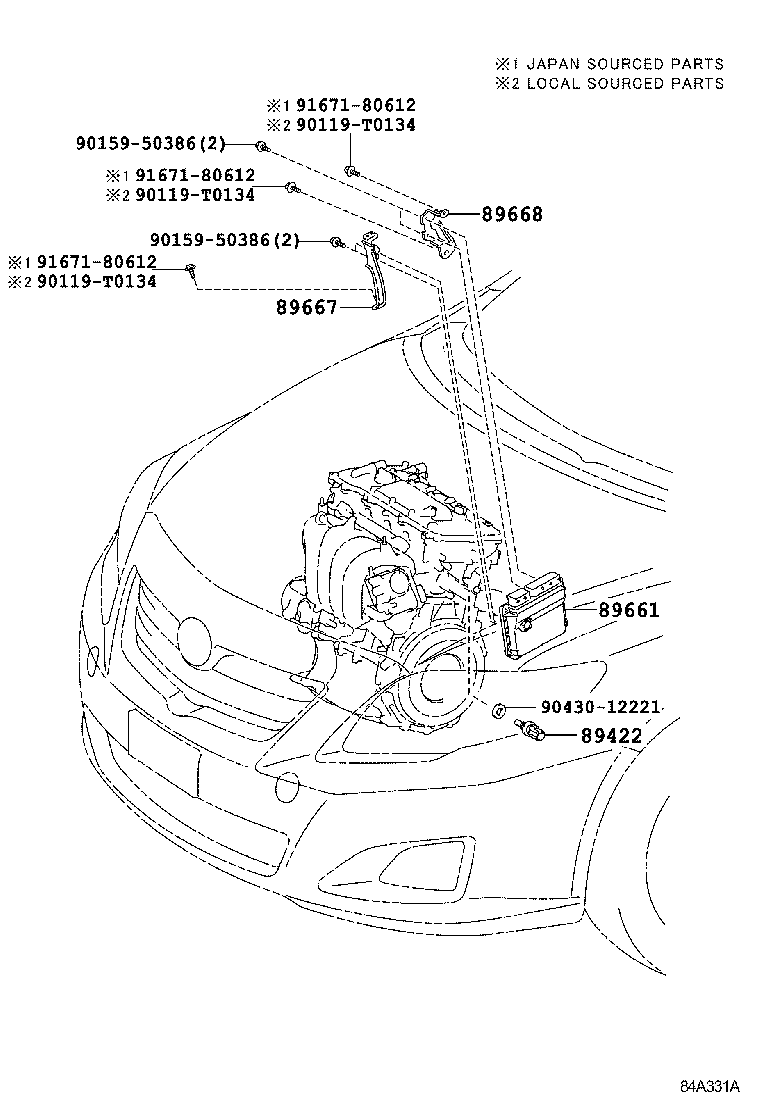

Click highlighted areas on diagram

diagram 89422 89661 89667 89668 90119T0134 90119T0134 90119T0134 9015950386 9015950386 9043012221 9167180612 9167180612 9167180612
Part # Description Qty Price
89661 - COMPUTER, ENGINE CONTROL
89661-12K60

ZRE143..TAIW

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-02240

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02210

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
Common parts
90119-T0134
90159-50386
90430-12221
91671-80612
