ZRE143L-GEPEKR (2008)
Toyota Corolla/Altis
ILLUST NO. 5 OF 8(0712- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12520 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0M010 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW TYPE B:REFER ILLUST. |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0M010 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW TYPE B:REFER ILLUST. |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20340 |
CE140,NDE140,NZE140,ZRE143,ZZE14#..4FC,5F,6F |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01163 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 12V 1.2W,W(CAP) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52021 |
ZRE143..20E Z AEROTOURER |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 2 OF 8(0712- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
ZRE143,ZZE14#..(20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 90119-T0096 | ||||
| 91631-B0614 | ||||
| 93315-14010 | ||||
ILLUST NO. 4 OF 8(0712- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
3ZRFE..ZRE143..20E Z AEROTOURER,P/N LABEL=9098702027 |
1 | ||
| 90987-T2001 |
3ZRFE..ZRE143..20E Z AEROTOURER,P/N LABEL=90987T2001 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-T2009 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ZZE142..18V..IND;CE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) |
1 | ||
| 81980-0D050 |
ZRE143,ZZE14#..GCC,TAIW |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12240 |
ZRE143,ZZE14#..LHD..(4FC,5F) |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12250 |
ZRE143,ZZE14#..LHD..(4FC,5F) |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12260 |
ZRE143,ZZE14#..LHD..(4FC,5F) |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-02740 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12B50 |
CE140,NDE140,NZE140,ZRE143,ZZE14#..4FC,5F,6F |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-12030 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
CE140,NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(IDN,IND,MA,PHL,PKN,TAIW,TH,VN) |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
CE140,NDE140,NZE140,ZRE143,ZZE14#..4FC,5F,6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ZRE143,ZZE14#..LHD..(4FC,5F) |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-06050 |
ZRE143,ZZE14#..LHD..4FC..(16J,18E,18G,18J,18V,20E,20G,20V,GLI,XLI) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-T2001 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-28010 |
ZZE142..18V..IND;CE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,LIMO)..(IDN,IND,MA,PHL,PKN,TH,VN) |
1 | ||
| 895A0-46020 |
ZRE143,ZZE142..TAIW |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12810 |
ZRE143..TAIW |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-12450 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90119-T0294 | ||||
| 90159-60431 | ||||
| 90159-60546 | ||||
| 90159-70004 | ||||
| 90159-T0014 | ||||
| 90168-T0001 | ||||
| 90178-T0018 | ||||
| 90179-06110 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
ILLUST NO. 8 OF 8(0712- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12830 |
CE140,ZRE143,ZZE14#..(4FC,5F)..(16J,18E,18G,18J,18V,20D,20DSA,20E,20G,20V)..(PKN,TAIW) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12830 |
CE140,ZRE143,ZZE14#..(4FC,5F)..(16J,18E,18G,18J,18V,20D,20DSA,20E,20G,20V)..(PKN,TAIW) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02040 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02040 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02040 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02040 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06040 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06040 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06040 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06040 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D160 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D160 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-12050 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 84947B - COVER, SWITCH | ||||
| 69219-68010 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 89407C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR | ||||
| 89407-12010 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| Common parts | ||||
| 48966-68010 | ||||
| 90159-40085 | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-70001 | ||||
| 91631-B0820 | ||||
| 94150-10641 | ||||
ILLUST NO. 6 OF 8(0712- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82291D - WIRE, TO SOLENOID | ||||
| 82291-42010 |
ZRE143,ZZE14#..LHD..(16J,18E,18J,20E,GLI,XLI) |
1 | ||
| 82291-42010 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 84052-71010 |
ZRE143,ZZE14#..LHD..(16J,18E,18J,20E,GLI,XLI) |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-52010 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 84113B - BRACKET, SWITCH, NO.2 | ||||
| 84113-52020 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-12140 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 84250-12060 |
ZZE142..(18E,18G)..TAIW;ZZE142..(18G,18V,G)..(IDN,IND,MA,PHL,TH,VN);NDE140,ZRE143,ZZE141..(4FC,5F,6F)..(16G,16V,20E,20G,E,G)..(IND,PHL,TAIW) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-12140 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 84250-12060 |
ZZE142..(18E,18G)..TAIW;ZZE142..(18G,18V,G)..(IDN,IND,MA,PHL,TH,VN);NDE140,ZRE143,ZZE141..(4FC,5F,6F)..(16G,16V,20E,20G,E,G)..(IND,PHL,TAIW) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0D110 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 84450-12200 |
ZRE143..4FC..VN;ZZE142..(18E,18J)..(IDN,TAIW);ZRE143,ZZE142..(4FC,5F)..(18E,18G,18J,18V,20G,ALT,G,GLI,XLI)..(GCC,IND,MA,PHL,PKN,TH,VN);CE140,NDE140,NZE140,ZRE143,ZZE141..(4FC,5F,6F)..(16E,16G,16J,16V,20D,20DSA,20E,E,G,GLI,LIMO,XLI) |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-52020 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-52020 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-52030 |
ZRE143..20E Z AEROTOURER,LH |
1 | ||
| 84610-52040 |
ZRE143..20E Z AEROTOURER,RH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-52030 |
ZRE143..20E Z AEROTOURER,LH |
1 | ||
| 84610-52040 |
ZRE143..20E Z AEROTOURER,RH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-52030 |
ZRE143..20E Z AEROTOURER,LH |
1 | ||
| 84610-52040 |
ZRE143..20E Z AEROTOURER,RH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-52030 |
ZRE143..20E Z AEROTOURER,LH |
1 | ||
| 84610-52040 |
ZRE143..20E Z AEROTOURER,RH |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
ZRE143,ZZE14#..LHD..(16J,18E,18J,20E,GLI,XLI) |
1 | ||
| 85432-71010 |
ZRE143..20E Z AEROTOURER |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 90159-T0007 | ||||
| 90168-40113 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 8(0712- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-40044 | ||||
| 90167-T0019 | ||||

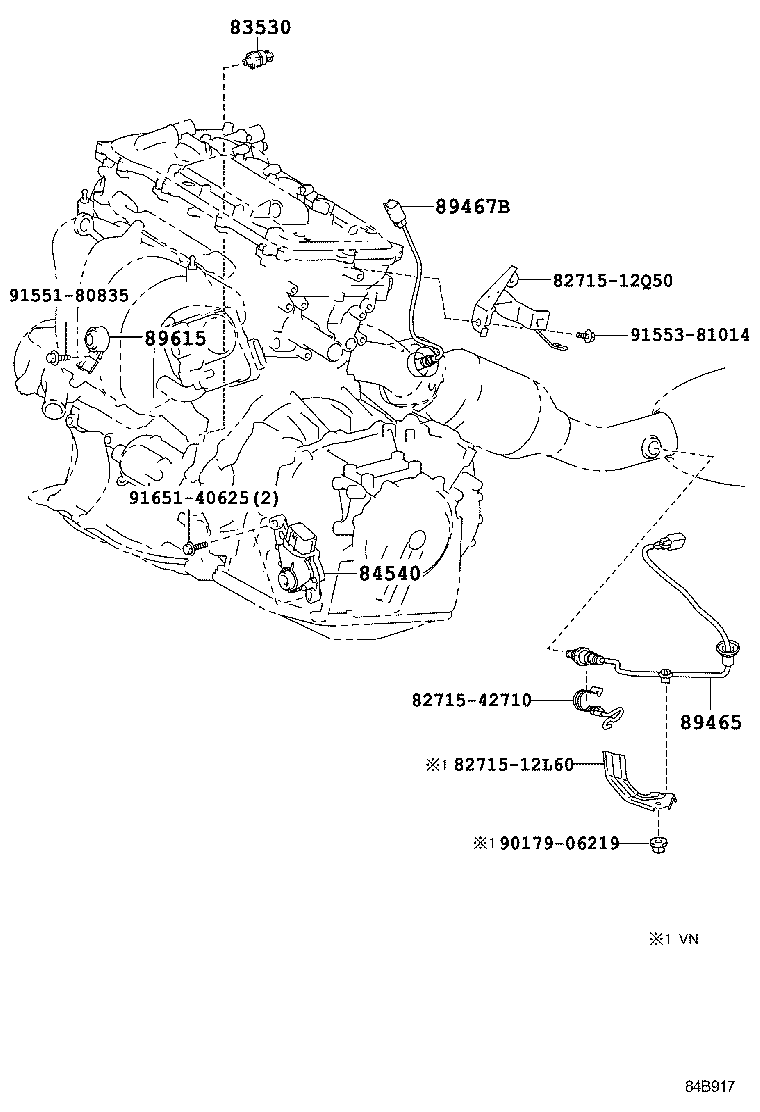

ILLUST NO. 1 OF 8(0811-1007)ZRE143..TAIW ; (0812-1008)ZRE143..IDN,PHL,TH ; (0906-1010)ZRE143..VN
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) DENSO |
1 | ||
| 83530-60020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) YAZAKI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02210 |
ZRE143,ZZE14#..4FC,5F |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12030 |
ZRE143..TAIW |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 82715-12L60 | ||||
| 82715-12Q50 | ||||
| 82715-42710 | ||||
| 90179-06219 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40625 | ||||
ILLUST NO. 3 OF 8(0712- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
CE140,NDE140,NZE140,ZRE14#,ZZE14# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12280 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12090 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.3 |
1 | ||
| 82631-12080 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.2 |
1 | ||
| 82631-12070 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.1 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12090 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.3 |
1 | ||
| 82631-12080 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.2 |
1 | ||
| 82631-12070 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.1 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12090 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.3 |
1 | ||
| 82631-12080 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.2 |
1 | ||
| 82631-12070 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.1 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-47020 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12660 |
ZRE143..TAIW |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12100 |
NZE140;ZRE143,ZZE14#..(4FC,5F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,GLI,XLI)..(GCC,IDN,MA,PHL,PKN,TAIW,TH,VN) |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12110 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZRE143,ZZE14#..(20E,20G,20V,GLI,XLI)..(GCC,TAIW) P/N LABEL=9098702027 |
1 | ||
| 90987-T2001 |
ZRE143,ZZE14#..(20E,20G,20V,GLI,XLI)..(GCC,TAIW) P/N LABEL=90987T2001 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
