ZRE143L-GEPEKR (2008)
Toyota Corolla/Altis
ILLUST NO. 4 OF12(0712- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-02G80 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02590 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02430 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-12F30 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-12F40 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
ILLUST NO. 6 OF12(0712- )
SEAT
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 7 OF12(0712- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E350 | ||||
| 82715-02F20 | ||||
| 82715-02F90 | ||||
| 82715-02K20 | ||||
| 82715-02K40 | ||||
| 82715-02K50 | ||||
| 82715-12420 | ||||
| 82715-12870 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12A90 | ||||
| 82715-12B00 | ||||
| 82715-12E30 | ||||
| 82715-12F20 | ||||
| 82715-12F30 | ||||
| 82715-12G20 | ||||
| 82715-12K00 | ||||
| 82715-12K70 | ||||
| 82715-12L50 | ||||
| 82715-20430 | ||||
| 82715-20810 | ||||
| 82715-32390 | ||||
| 82715-33140 | ||||
| 82715-33570 | ||||
| 82715-42560 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52140 | ||||
| 82715-52C50 | ||||
| 82715-52C60 | ||||
| 82715-68050 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90119-T0019 | ||||
| 90119-T0094 | ||||
| 90119-T0134 | ||||
| 90119-T0237 | ||||
| 91621-J0612 | ||||
| 91651-B0614 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
ILLUST NO. 5 OF12(0712- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-02W10 |
ZRE143,ZZE142..(18E,20E)..TAIW |
1 | ||
| 82161-02W11 |
ZRE143,ZZE142..(18E,20E)..TAIW |
1 | ||
| 82161-02W10 |
ZRE143,ZZE142..(18E,20E)..TAIW PART NUMBER LABEL=82161-02W10 |
1 | ||
| 82161-02W11 |
ZRE143,ZZE142..(18E,20E)..TAIW PART NUMBER LABEL=82161-02W11 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-02851 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW |
1 | ||
| 82162-02860 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 82162-02861 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 82162-02861 |
ZRE143..20E PART NUMBER LABEL=82162-02861 |
1 | ||
| 82162-02860 |
ZRE143..20E PART NUMBER LABEL=82162-02860 |
1 | ||
| 82162-02851 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW PART NUMBER LABEL=82162-02851 |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-02020 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02D80 |
ZRE143,ZZE142..(18J,20E)..TAIW |
1 | ||
| 82171-02K20 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 82171-02D80 |
ZRE143,ZZE142..(18J,20E)..TAIW PART NUMBER LABEL=82171-02D80 |
1 | ||
| 82171-02K20 |
ZRE143..20E PART NUMBER LABEL=82171-02K20 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02160 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12480 |
ZRE143,ZZE14#..GCC,TAIW |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
ZRE143,ZZE14#..GCC,TAIW |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-12470 |
ZRE143,ZZE14#..GCC,TAIW |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20280 |
ZRE143,ZZE14#..GCC,TAIW |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-1A640 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
ILLUST NO.10 OF12(0712- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-11967 | ||||
ILLUST NO. 1 OF12(0712- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0ZU20 |
ZRE143..20E |
1 | ||
| 82111-0ZU21 |
ZRE143..20E |
1 | ||
| 82111-0ZU22 |
ZRE143..20E |
1 | ||
| 82111-0ZU20 |
ZRE143..20E |
1 | ||
| 82111-0ZU21 |
ZRE143..20E |
1 | ||
| 82111-0ZU22 |
ZRE143..20E |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90178-T0018 | ||||
| 90467-06193C0 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF12(0712- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-0ZK90 |
ZRE143..20E |
1 | ||
| 82145-0ZJ50 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 82145-0ZJ50 |
ZRE143..20E Z AEROTOURER |
1 | ||
| 82145-0ZK90 |
ZRE143..20E |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02210 |
ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02300 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-02010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-02020 |
ZRE143,ZZE14#..(18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60546 | ||||
| 90159-70004 | ||||
| 90168-T0001 | ||||
| Linked diagrams | ||||
| 8401 | ||||

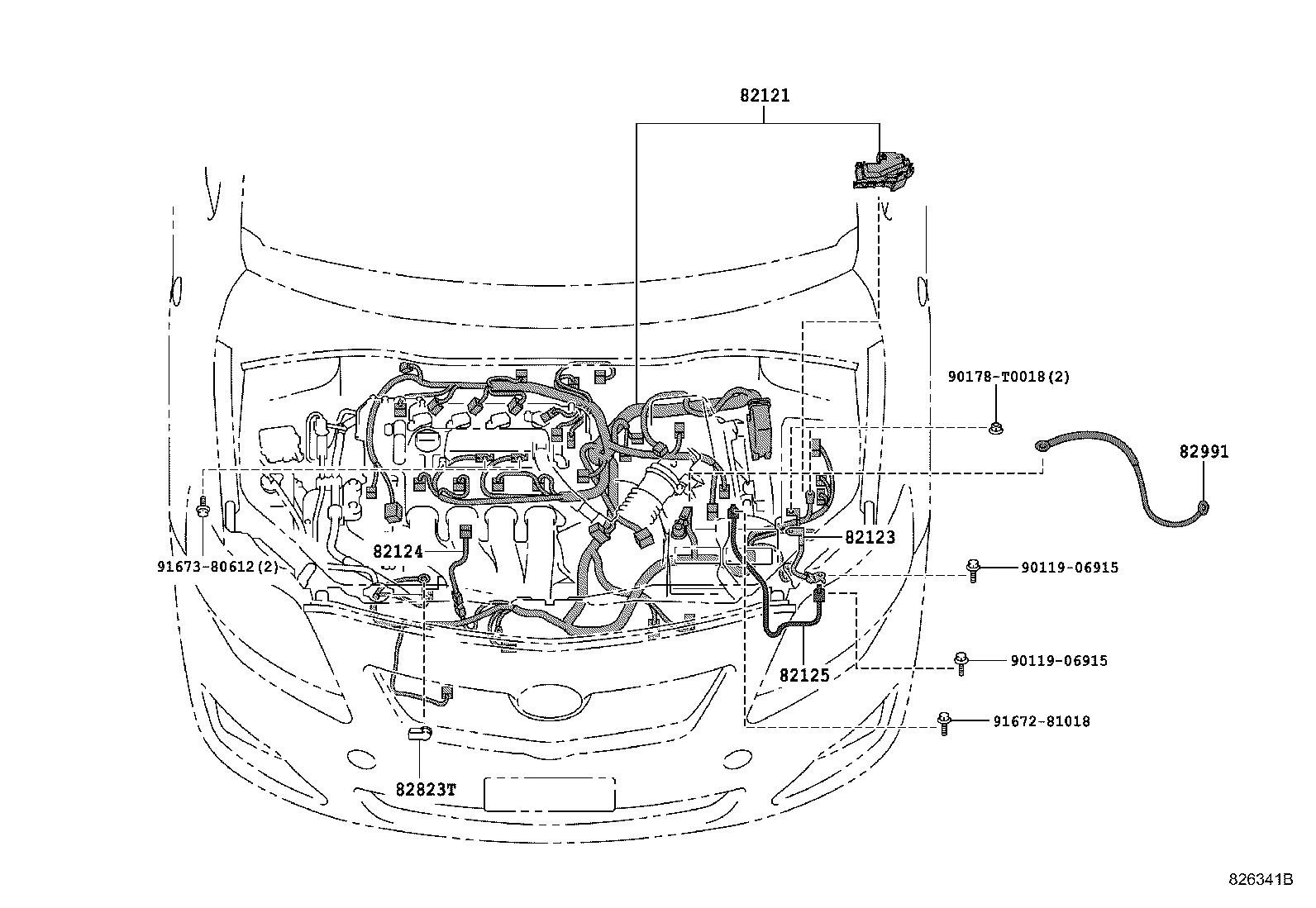

ILLUST NO. 2 OF12(0811- )ZRE143..4FC
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-02T80 |
ZRE143..TAIW |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02370 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZRE143..TAIW |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-02350 |
ZRE143..TAIW |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12110 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90178-T0018 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
ILLUST NO. 8 OF12(0712- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02K30 | ||||
| 82715-12B20 | ||||
| 82715-12B50 | ||||
| 82715-12B70 | ||||
| 82715-12B80 | ||||
| 82715-12C70 | ||||
| 82715-12G10 | ||||
| 82715-12N40 | ||||
| 82715-12N80 | ||||
| 82715-12Q30 | ||||
| 82715-12Q41 | ||||
| 82715-12R10 | ||||
| 82715-20B70 | ||||
| 82715-20C20 | ||||
| 82715-28K50 | ||||
| 82715-52S30 | ||||
| 82715-52U00 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82729-20070 | ||||
| 90105-T0066 | ||||
| 90119-T0134 | ||||
| 90119-T0237 | ||||
| 91551-80612 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81018 | ||||
ILLUST NO.11 OF12(0712- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52330 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11909 | ||||
| 90980-11918 | ||||
| 90980-12212 | ||||
| 90980-12303 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12490 | ||||
| 90980-12551 | ||||
| 90980-12553 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
ILLUST NO.12 OF12(0712- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52440 | ||||
| 90980-10619 | ||||
| 90980-10792 | ||||
| 90980-12686 | ||||
| 90980-12687 | ||||
