ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )ZRE14#..LHD

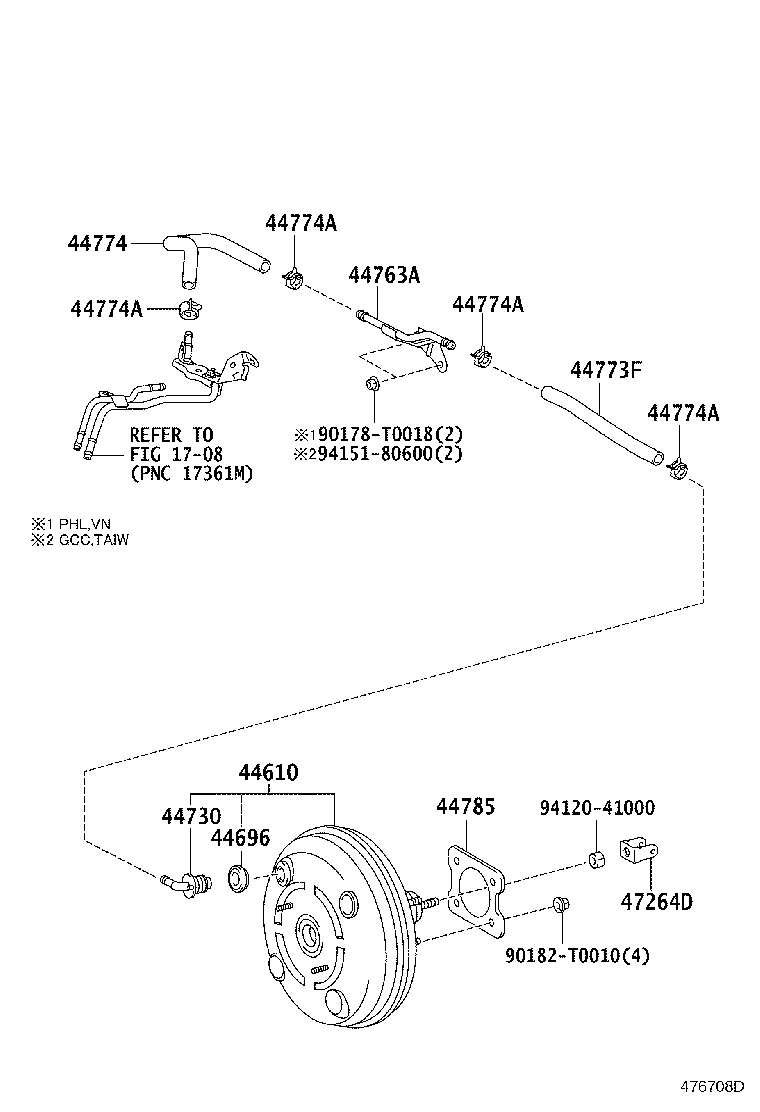

Click highlighted areas on diagram

diagram 1708 44610 44696 44730 44763A 44773F 44774 44774A 44774A 44774A 44774A 44785 47264D 90178T0018 90182T0010 9412041000 9415180600
Part # Description Qty Price
44696 - GROMMET, CHECK VALVE
90480-24439

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-02150

ZRE143..TAIW

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-02170

ZRE143..TAIW

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-02190

ZRE143..TAIW

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-02120

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
Common parts
90178-T0018
90182-T0010
94120-41000
94151-80600
Linked diagrams
1708
