ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )20E ; (0811- )ZRE143..4FC..IDN,PHL,TH,VN

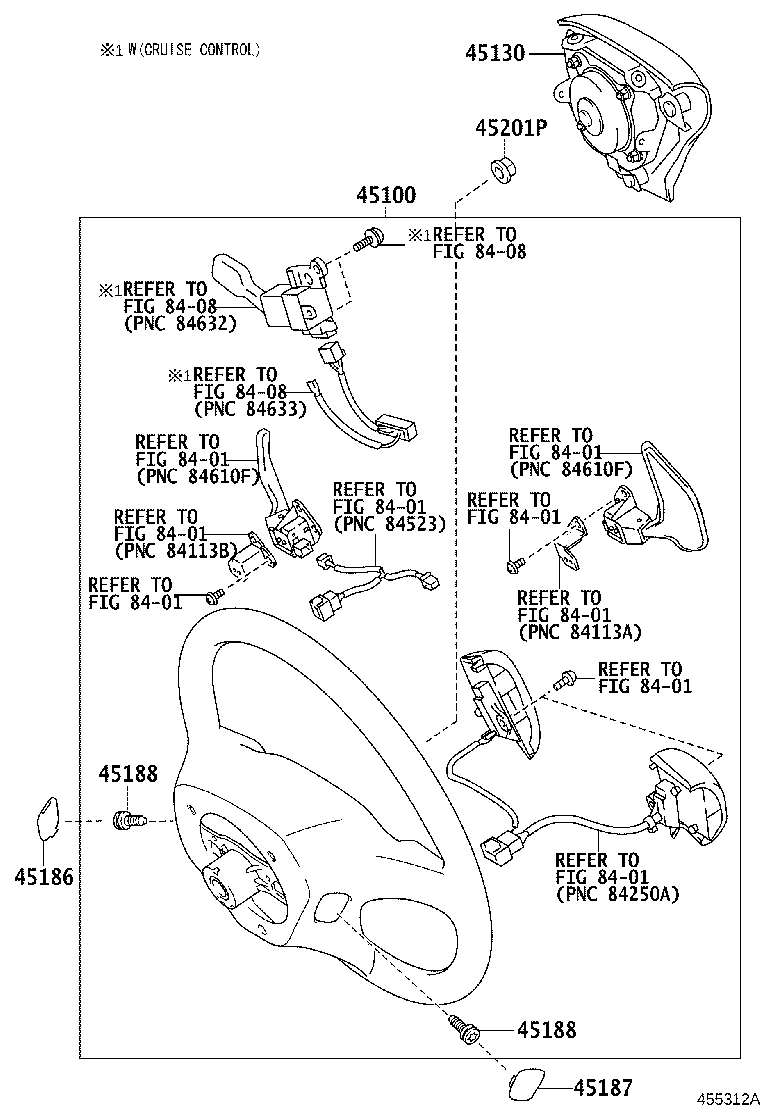

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45186 45187 45188 45188 45201P 8401 8401 8401 8401 8401 8401 8401 8401 8401 8408 8408 8408
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-02G30E0

ZRE143,ZZE142..(18E,20E)..TAIW

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

 1
45100-12E40E0

ZRE143..20E

3-SPOKE,LEATHER,Z AEROTOURER,ASH BROWN,TRIM4#

 1
45100-12E40B0

ZRE143..20E

3-SPOKE,LEATHER,Z AEROTOURER,DK.GRAY,TRIM1#

 1
45100-02G30B0

ZRE143,ZZE142..(18E,20E)..TAIW

4-SPOKE,LEATHER,DK.GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-02440B0

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

DK.GRAY,TRIM1#

 1
45130-12B80E0

ZRE143..20E

Z AEROTOURER,ASH BROWN,TRIM4#

 1
45130-12B80B0

ZRE143..20E

Z AEROTOURER,DK.GRAY,TRIM1#

 1
45130-02440E0

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

ASH BROWN,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06160E0

ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW

ASH BROWN,TRIM4#

 1
45186-06160B0

ZRE143,ZZE142..(18E,20E,20G,20V)..TAIW

DK.GRAY,TRIM1#

 1
45186-12010B0

ZRE143..20E

Z AEROTOURER,DK.GRAY,TRIM1#

 1
45186-12010E0

ZRE143..20E

Z AEROTOURER,ASH BROWN,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-06100B0

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

DK.GRAY,TRIM1#

 1
45187-06100E0

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

ASH BROWN,TRIM4#

 1
45187-12020B0

ZRE143..20E

Z AEROTOURER,DK.GRAY,TRIM1#

 1
45187-12020E0

ZRE143..20E

Z AEROTOURER,ASH BROWN,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
Linked diagrams
8401
8408
