ZRE143L-GEPEKR (2008)
Toyota Corolla/Altis
ILLUST NO. 3 OF 3(0712- )
| Part # | Description | Qty | Price |
|---|

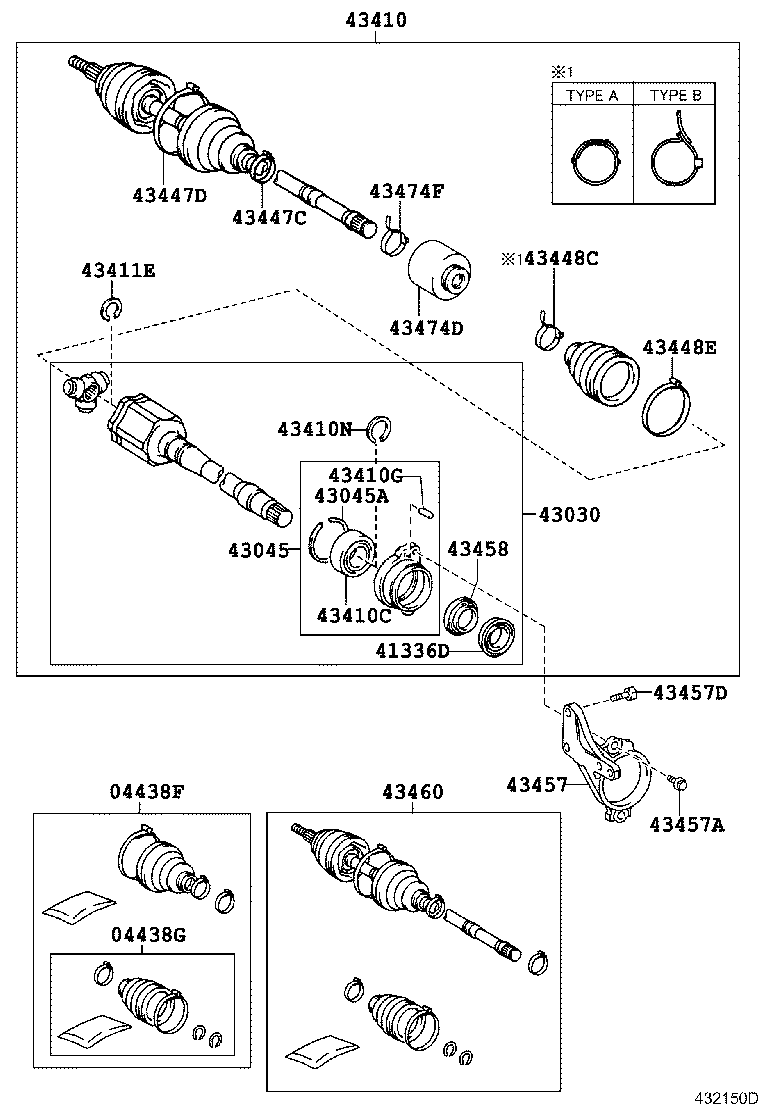

ILLUST NO. 1 OF 3(0811- )ZRE143
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04428-58030 |
ZRE143..TAIW |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-42180 |
ZRE143..TAIW |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-44021 |
ZRE143..TAIW |
1 | ||
| 43045 - CASE SUB ASSY, DRIVE SHAFT BEARING | ||||
| 43045-64020 |
ZRE143..TAIW |
1 | ||
| 43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) | ||||
| 90520-69002 |
ZRE143..TAIW |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-44040 |
ZRE143..TAIW |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-41003 |
ZRE143..TAIW |
1 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-06003 |
ZRE143..TAIW |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-38015 |
ZRE143..TAIW |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-28010 |
ZRE143..TAIW |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-42100 |
ZRE143..TAIW |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-42090 |
ZRE143..TAIW |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01559 |
ZRE143..TAIW TYPE B:REFER ILLUST. |
1 | ||
| 42345-42010 |
ZRE143..TAIW TYPE A:REFER ILLUST. |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-28060 |
ZRE143..TAIW |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10361 |
ZRE143..TAIW *10-1.25PX22-19.5 |
2 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90105-10381 |
ZRE143..TAIW |
3 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-12010 |
ZRE143..TAIW |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-49126 |
ZRE143..TAIW |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-28010 |
ZRE143..TAIW |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-14010 |
ZRE143..TAIW |
1 | ||

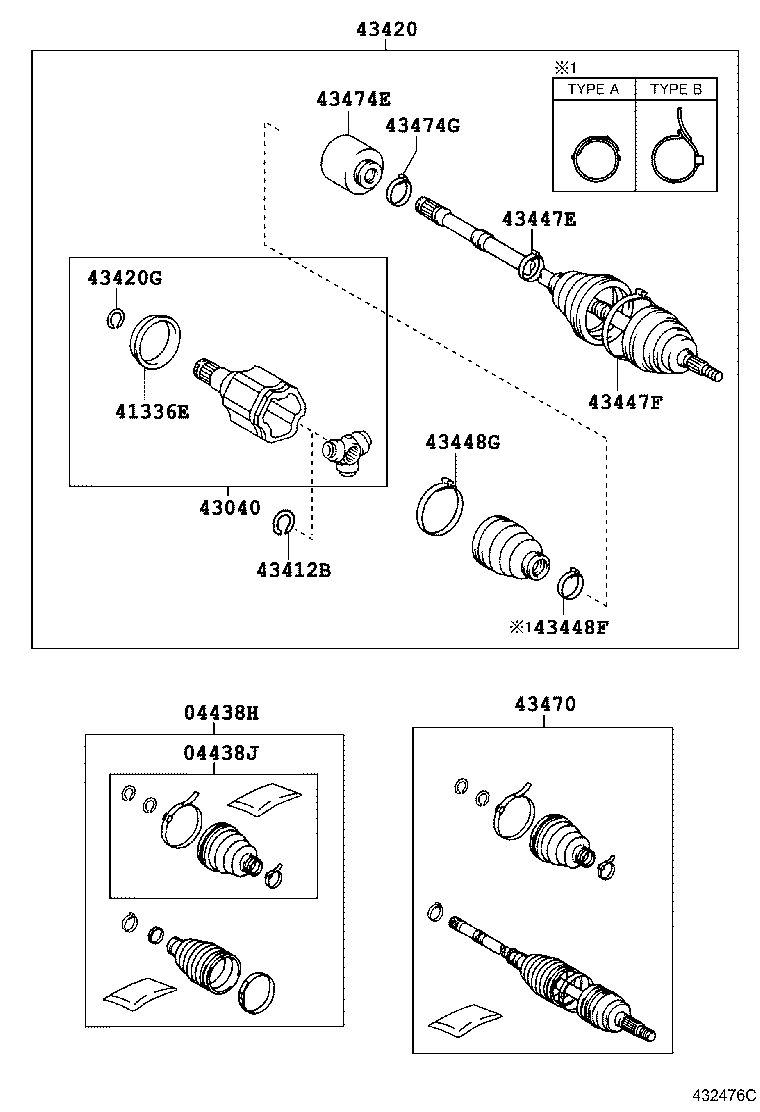

ILLUST NO. 2 OF 3(0811- )ZRE143
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-42110 |
ZRE143..TAIW |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-42180 |
ZRE143..TAIW |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-28011 |
ZRE143..TAIW |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-28010 |
ZRE143..TAIW |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-44040 |
ZRE143..TAIW |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-42100 |
ZRE143..TAIW |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-42090 |
ZRE143..TAIW |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01559 |
ZRE143..TAIW TYPE B:REFER ILLUST. |
1 | ||
| 42345-42010 |
ZRE143..TAIW TYPE A:REFER ILLUST. |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-80064 |
ZRE143..TAIW |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-44010 |
ZRE143..TAIW |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-14010 |
ZRE143..TAIW |
1 | ||
