ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )ZRE143..4FC

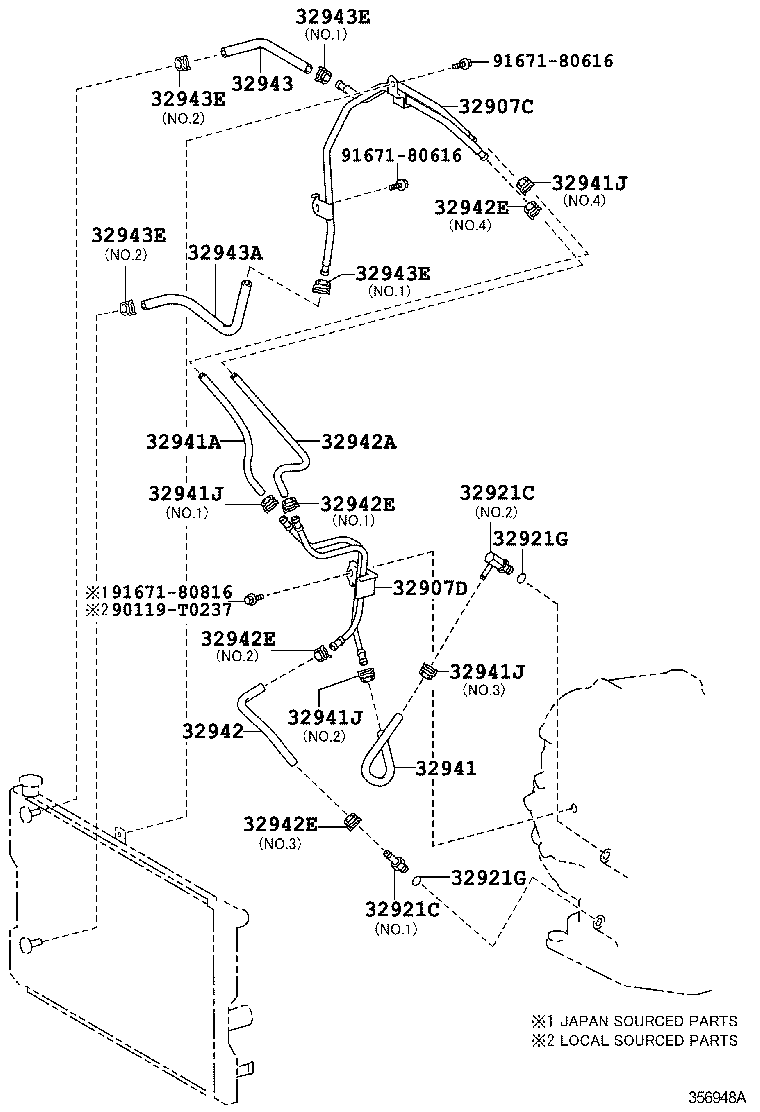

Click highlighted areas on diagram

U241E

diagram 32907C 32907D 32921C 32921C 32921G 32921G 32941 32941A 32941J 32941J 32941J 32941J 32942 32942A 32942E 32942E 32942E 32942E 32943 32943A 32943E 32943E 32943E 32943E 90119T0237 9167180616 9167180616 9167180816
Part # Description Qty Price
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-02200

ZRE143,ZZE142..TAIW

 1
32907D - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2
32907-02180

ZRE143..TAIW

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-13009

ZRE143..TAIW

NO.2

 1
90404-13004

ZRE143..TAIW

NO.1

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-13009

ZRE143..TAIW

NO.2

 1
90404-13004

ZRE143..TAIW

NO.1

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32943-02290

ZRE143..TAIW

 1
32941A - HOSE, OIL COOLER INLET, NO.2
90445-T0020

ZRE143,ZZE14#..(20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90467-16022

ZRE143..TAIW

NO.2

 1
96137-41501

ZRE143..TAIW

NO.1

 1
90466-16004

ZRE143..TAIW

NO.2

 1
96135-51300

ZRE143..TAIW

NO.1

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90467-16022

ZRE143..TAIW

NO.2

 1
96137-41501

ZRE143..TAIW

NO.1

 1
90466-16004

ZRE143..TAIW

NO.2

 1
96135-51300

ZRE143..TAIW

NO.1

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90467-16022

ZRE143..TAIW

NO.2

 1
96137-41501

ZRE143..TAIW

NO.1

 1
90466-16004

ZRE143..TAIW

NO.2

 1
96135-51300

ZRE143..TAIW

NO.1

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90467-16022

ZRE143..TAIW

NO.2

 1
96137-41501

ZRE143..TAIW

NO.1

 1
90466-16004

ZRE143..TAIW

NO.2

 1
96135-51300

ZRE143..TAIW

NO.1

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32943-02280

ZRE143..TAIW

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
90445-T0020

ZRE143..TAIW

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300

ZRE143..TAIW

NO.1

 1
90466-16004

ZRE143..TAIW

NO.2

 1
96137-41501

ZRE143..TAIW

NO.1

 1
90467-16022

ZRE143..TAIW

NO.2

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300

ZRE143..TAIW

NO.1

 1
90466-16004

ZRE143..TAIW

NO.2

 1
96137-41501

ZRE143..TAIW

NO.1

 1
90467-16022

ZRE143..TAIW

NO.2

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300

ZRE143..TAIW

NO.1

 1
90466-16004

ZRE143..TAIW

NO.2

 1
96137-41501

ZRE143..TAIW

NO.1

 1
90467-16022

ZRE143..TAIW

NO.2

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300

ZRE143..TAIW

NO.1

 1
90466-16004

ZRE143..TAIW

NO.2

 1
96137-41501

ZRE143..TAIW

NO.1

 1
90467-16022

ZRE143..TAIW

NO.2

 1
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-02340

ZRE143,ZZE142..TAIW

 1
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
32943-02350

ZRE143,ZZE142..TAIW

 1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
96135-51300

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

NO.1

 2
96137-41501

ZRE143,ZZE142..TAIW

NO.1

 2
96137-41501

ZRE143,ZZE14#..4FC..(IDN,IND,MA,PHL,PKN,TAIW,TH,VN)

NO.2

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
96135-51300

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

NO.1

 2
96137-41501

ZRE143,ZZE142..TAIW

NO.1

 2
96137-41501

ZRE143,ZZE14#..4FC..(IDN,IND,MA,PHL,PKN,TAIW,TH,VN)

NO.2

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
96135-51300

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

NO.1

 2
96137-41501

ZRE143,ZZE142..TAIW

NO.1

 2
96137-41501

ZRE143,ZZE14#..4FC..(IDN,IND,MA,PHL,PKN,TAIW,TH,VN)

NO.2

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
96135-51300

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

NO.1

 2
96137-41501

ZRE143,ZZE142..TAIW

NO.1

 2
96137-41501

ZRE143,ZZE14#..4FC..(IDN,IND,MA,PHL,PKN,TAIW,TH,VN)

NO.2

 2
Common parts
90119-T0237
91671-80616
91671-80816
