ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )ZRE143..4FC

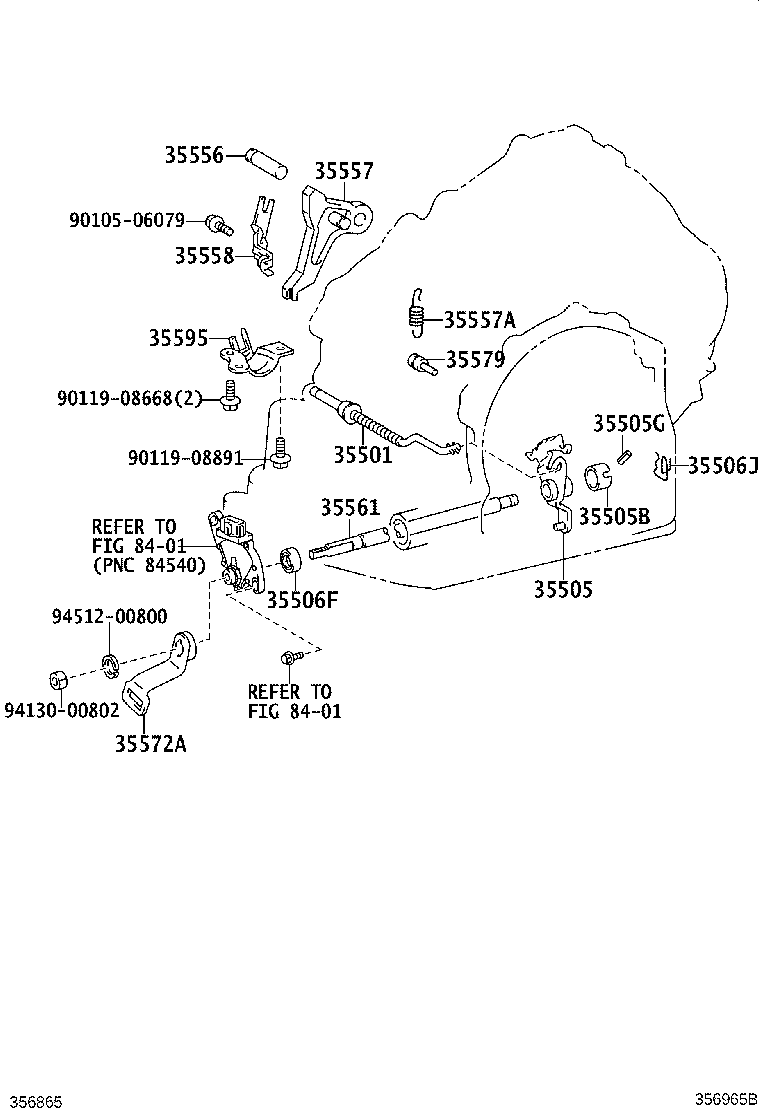

Click highlighted areas on diagram

U241E

diagram 35501 35505 35505B 35505G 35506F 35506J 35556 35557 35557A 35558 35561 35572A 35579 35595 8401 8401 9010506079 9011908668 9011908891 9413000802 9451200800
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-21010

ZRE143..TAIW

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20006

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

ZRE143..TAIW

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-09001

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-32030

ZRE143..TAIW

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90506-18077

ZRE143..TAIW

 1
35558 - CLAMP, PAWL SHAFT
35558-32010

ZRE143..TAIW

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-21010

ZRE143..TAIW

 1
35579 - PIN, PARKING LOCK PAWL
35594-21010

ZRE143..TAIW

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-21010

ZRE143..TAIW

 1
Common parts
90105-06079
90119-08668
90119-08891
94130-00802
94512-00800
Linked diagrams
8401
