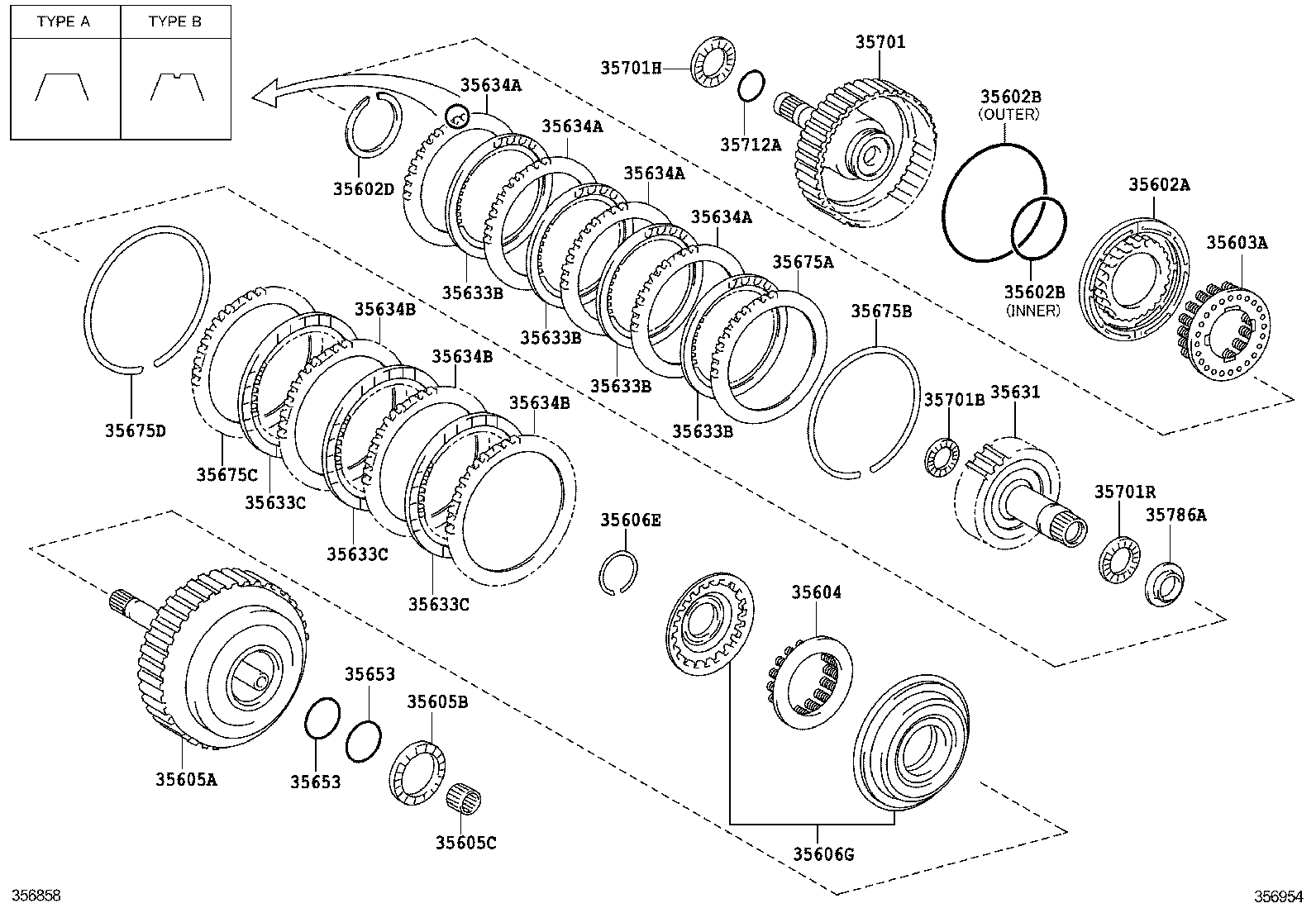

ZRE143L-GEPEKR (2008)
Toyota Corolla/Altis
(0811- )ZRE143..4FC
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602A - PISTON SUB-ASSY, FORWARD CLUTCH | ||||
| 35602-21010 |
ZRE143..TAIW |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99104 |
ZRE143..TAIW OUTER |
1 | ||
| 90301-64008 |
ZRE143..TAIW INNER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99104 |
ZRE143..TAIW OUTER |
1 | ||
| 90301-64008 |
ZRE143..TAIW INNER |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-54004 |
ZRE143..TAIW |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-21010 |
ZRE143..TAIW |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-21010 |
ZRE143..TAIW |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-48010 |
ZRE143..TAIW |
1 | ||
| 35605B - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-53002 |
ZRE143..TAIW BLACK |
1 | ||
| 90374-53001 |
ZRE143..TAIW BROWN |
1 | ||
| 35605C - BEARING, NEEDLE ROLLER | ||||
| 90364-18010 |
ZRE143..TAIW |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-38019 |
ZRE143..TAIW |
1 | ||
| 35606G - PISTON SET, DIRECT CLUTCH | ||||
| 35606-21010 |
ZRE143..TAIW |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35061-33010 |
ZRE143..TAIW |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-21010 |
ZRE143..TAIW |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-21010 |
ZRE143..TAIW |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-21010 |
ZRE143..TAIW |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-21010 |
ZRE143..TAIW |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-28030 |
ZRE143..TAIW |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-28030 |
ZRE143..TAIW |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-28030 |
ZRE143..TAIW |
3 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-21010 |
ZRE143..TAIW T=1.8,TYPE A:REFER ILLUST. |
4 | ||
| 35634-33071 |
ZRE143..TAIW T=1.8,TYPE B:REFER ILLUST. |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-21010 |
ZRE143..TAIW T=1.8,TYPE A:REFER ILLUST. |
4 | ||
| 35634-33071 |
ZRE143..TAIW T=1.8,TYPE B:REFER ILLUST. |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-21010 |
ZRE143..TAIW T=1.8,TYPE A:REFER ILLUST. |
4 | ||
| 35634-33071 |
ZRE143..TAIW T=1.8,TYPE B:REFER ILLUST. |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-21010 |
ZRE143..TAIW T=1.8,TYPE A:REFER ILLUST. |
4 | ||
| 35634-33071 |
ZRE143..TAIW T=1.8,TYPE B:REFER ILLUST. |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-21010 |
ZRE143..TAIW T=3.0 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-21010 |
ZRE143..TAIW T=3.0 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-21010 |
ZRE143..TAIW T=3.0 |
3 | ||
| 35653 - RING, REAR CLUTCH OIL SEAL, OUTER | ||||
| 35653-33010 |
ZRE143..TAIW |
2 | ||
| 35653 - RING, REAR CLUTCH OIL SEAL, OUTER | ||||
| 35653-33010 |
ZRE143..TAIW |
2 | ||
| 35675A - FLANGE, FORWARD CLUTCH | ||||
| 35635-21030 |
ZRE143..TAIW T=3.30 |
1 | ||
| 35635-21010 |
ZRE143..TAIW T=3.00 |
1 | ||
| 35635-21020 |
ZRE143..TAIW T=3.15 |
1 | ||
| 35635-21040 |
ZRE143..TAIW T=3.45 |
1 | ||
| 35635-21060 |
ZRE143..TAIW T=3.75 |
1 | ||
| 35635-21070 |
ZRE143..TAIW T=2.85 |
1 | ||
| 35635-21050 |
ZRE143..TAIW T=3.60 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90520-99025 |
ZRE143..TAIW |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-21040 |
ZRE143..TAIW T=3.3 |
1 | ||
| 35675-21020 |
ZRE143..TAIW T=3.1 |
1 | ||
| 35675-21010 |
ZRE143..TAIW T=3.0 |
1 | ||
| 35675-21060 |
ZRE143..TAIW T=3.5 |
1 | ||
| 35675-21030 |
ZRE143..TAIW T=3.2 |
1 | ||
| 35675-21050 |
ZRE143..TAIW T=3.4 |
1 | ||
| 35675-33060 |
ZRE143..TAIW T=3.6 |
1 | ||
| 35675-21080 |
ZRE143..TAIW T=2.9 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90520-99028 |
ZRE143..TAIW |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-48010 |
ZRE143..TAIW |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-23002 |
ZRE143..TAIW |
1 | ||
| 35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-34005 |
ZRE143..TAIW OD=52.2 |
1 | ||
| 35701R - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-37005 |
ZRE143..TAIW |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-21010 |
ZRE143..TAIW |
1 | ||
| 35786A - RACE, THRUST BEARING, NO.1 | ||||
| 35786-21010 |
ZRE143..TAIW |
1 | ||
