ZRE143L-GEPEKR (2008)
Toyota Corolla/Altis
(0811- )ZRE143..4FC
U241E

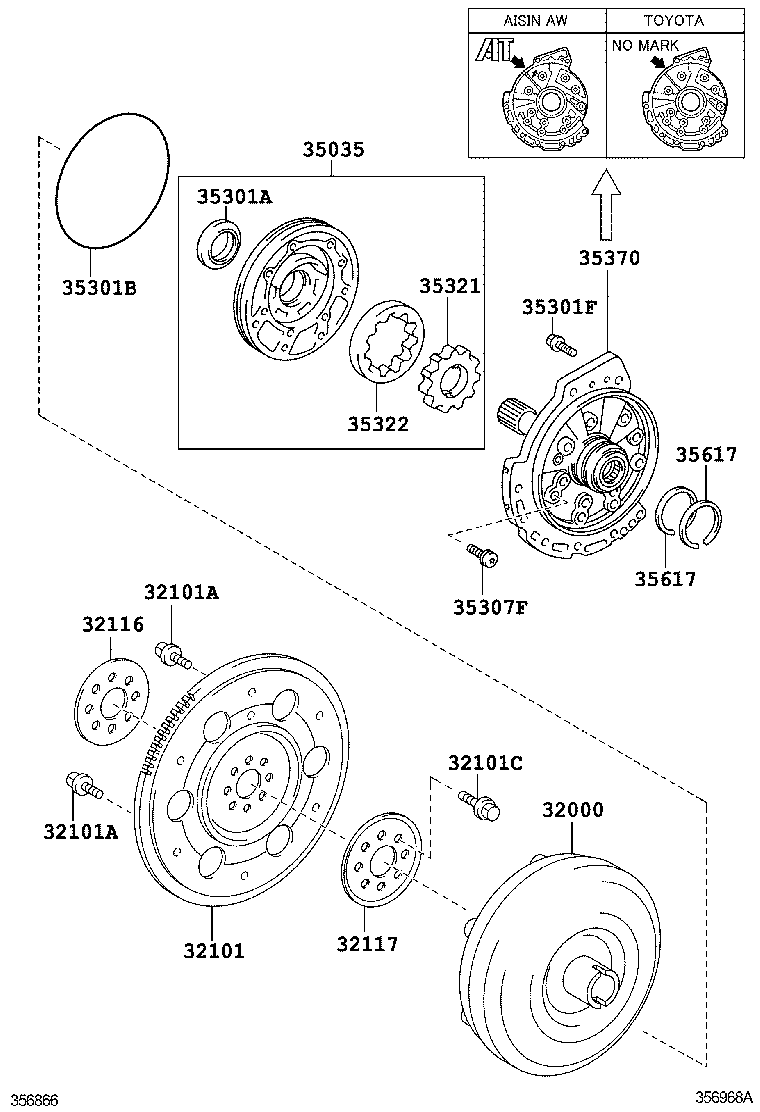

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-20341 |
ZRE143..TAIW |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-28050 |
ZRE143..TAIW |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
ZRE143..TAIW *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ZRE143..TAIW *9-1.25PX12.4-8.4,SILVER |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
ZRE143..TAIW *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ZRE143..TAIW *9-1.25PX12.4-8.4,SILVER |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
ZRE143;ZZE142..18V..IND;ZZE142..(18E,18J)..TAIW;ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,ALT,GLI,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) *10-1.25PX18-13,(J) |
8 | ||
| 90105-10048 |
ZRE143,ZZE14#..GCC,TAIW *10-1.25PX18-13 |
8 | ||
| 90105-A0022 |
ZRE143;ZZE142..18V..IND;ZZE142..(18E,18J)..TAIW;ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,ALT,GLI,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) *10-1.25PX18-13,(L) |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-12030 |
ZRE143..TAIW |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-12040 |
ZRE143..TAIW |
1 | ||
| 35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR | ||||
| 35035-21020 |
ZRE143..TAIW TOYOTA:REFER TO ILL. |
1 | ||
| 35035-28010 |
ZRE143..TAIW AISIN AW:REF.ILLUST |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38083 |
ZRE143..TAIW |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99099 |
ZRE143..TAIW |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08050 |
ZRE143..TAIW *8-1.25PX28-28 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60027 |
ZRE143..TAIW |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-21070 |
ZRE143..TAIW T=10.700-10.709,TOYOTA:REFER TO ILL. |
1 | ||
| 35321-21090 |
ZRE143..TAIW T=10.721-10.730,TOYOTA:REFER TO ILL. |
1 | ||
| 35321-21080 |
ZRE143..TAIW T=10.710-10.720,TOYOTA:REFER TO ILL. |
1 | ||
| 35321-28100 |
ZRE143..TAIW T=10.715,MARK 5,AISIN AW:REF.ILLUST |
1 | ||
| 35321-21100 |
ZRE143..TAIW T=10.731-10.740,TOYOTA:REFER TO ILL. |
1 | ||
| 35321-28090 |
ZRE143..TAIW T=10.715,MARK 4,AISIN AW:REF.ILLUST |
1 | ||
| 35321-28060 |
ZRE143..TAIW T=10.715,MARK 1,AISIN AW:REF.ILLUST |
1 | ||
| 35321-21060 |
ZRE143..TAIW T=10.690-10.699,TOYOTA:REFER TO ILL. |
1 | ||
| 35321-28080 |
ZRE143..TAIW T=10.715,MARK 3,AISIN AW:REF.ILLUST |
1 | ||
| 35321-28070 |
ZRE143..TAIW T=10.715,MARK 2,AISIN AW:REF.ILLUST |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-21060 |
ZRE143..TAIW T=10.690-10.699,TOYOTA:REFER TO ILL. |
1 | ||
| 35322-21070 |
ZRE143..TAIW T=10.700-10.709,TOYOTA:REFER TO ILL. |
1 | ||
| 35322-21080 |
ZRE143..TAIW T=10.710-10.720,TOYOTA:REFER TO ILL. |
1 | ||
| 35322-21100 |
ZRE143..TAIW T=10.731-10.740,TOYOTA:REFER TO ILL. |
1 | ||
| 35322-28060 |
ZRE143..TAIW T=10.715,MARK 1,AISIN AW:REF.ILLUST |
1 | ||
| 35322-28100 |
ZRE143..TAIW T=10.715,MARK 5,AISIN AW:REF.ILLUST |
1 | ||
| 35322-28080 |
ZRE143..TAIW T=10.715,MARK 3,AISIN AW:REF.ILLUST |
1 | ||
| 35322-21090 |
ZRE143..TAIW T=10.721-10.730,TOYOTA:REFER TO ILL. |
1 | ||
| 35322-28090 |
ZRE143..TAIW T=10.715,MARK 4,AISIN AW:REF.ILLUST |
1 | ||
| 35322-28070 |
ZRE143..TAIW T=10.715,MARK 2,AISIN AW:REF.ILLUST |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-21020 |
ZRE143 TOYOTA:REFER TO ILL. |
1 | ||
| 35370-28010 |
ZRE143..TAIW AISIN AW:REF.ILLUST |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35613-21010 |
ZRE143..TAIW |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35613-21010 |
ZRE143..TAIW |
2 | ||
