ZRE143L-GEPEKR (2008)
Toyota Corolla/Altis
Production
Nov 2008
-
Jul 2010
Engine
3ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1ZRFE,2ZRFE,3ZRFE

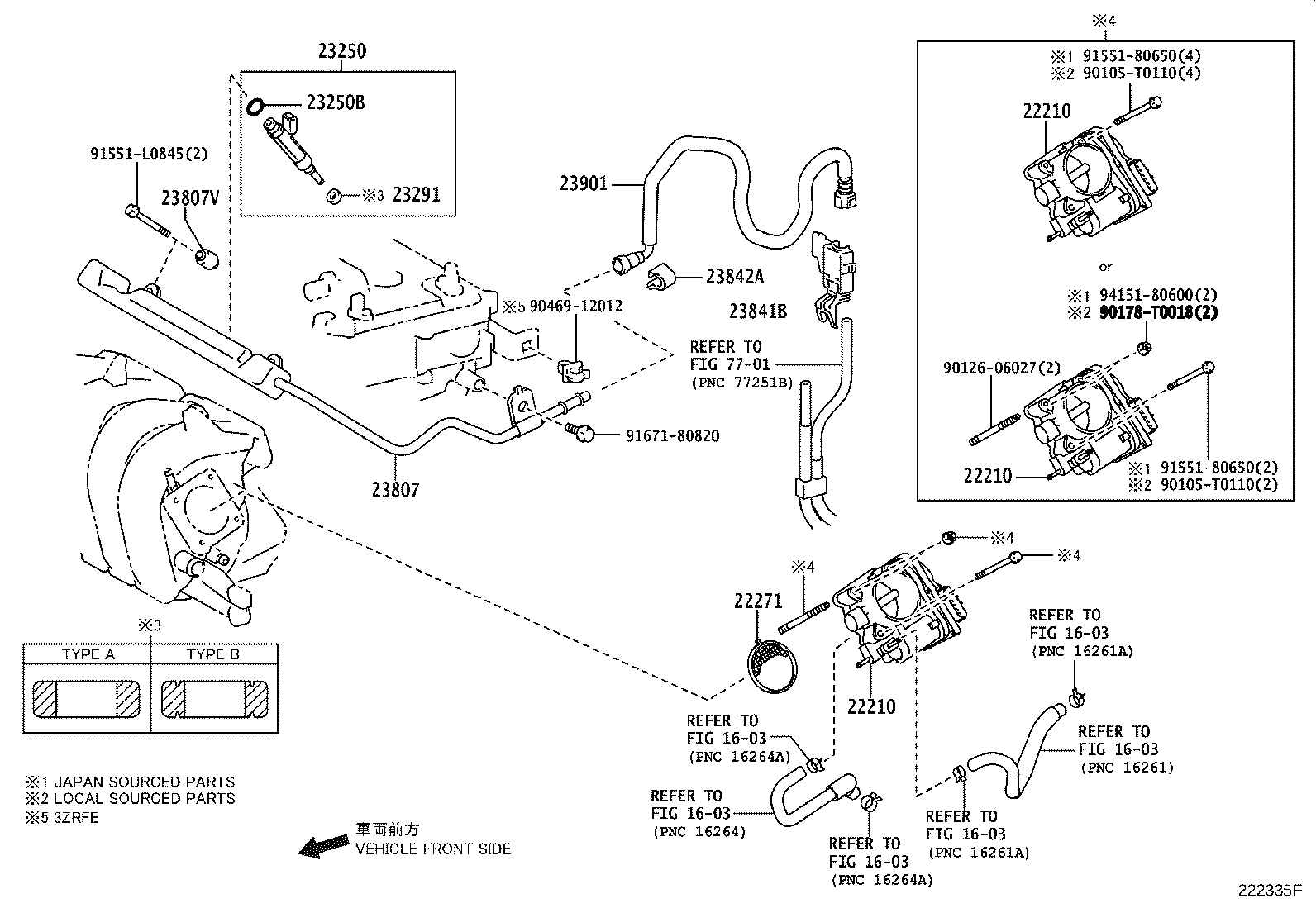

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-37050 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-37050 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-37050 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-75031 |
1ZZFE,3ZRFE..ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-39145 |
3ZRFE..ZRE143 |
4 | ||
| 23209-39146 |
3ZRFE..ZRE143..TAIW |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
1ZZFE,3ZRFE..ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
3ZRFE..ZRE143..TAIW TYPE B:REFER ILLUST. |
4 | ||
| 23291-23010 |
3ZRFE..ZRE143..TAIW TYPE A:REFER ILLUST. |
4 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-21040 |
1ZZFE,3Z#..ZRE143,ZZE14#..4FC,5F |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-28010 |
1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 90105-T0110 | ||||
| 90126-06027 | ||||
| 90178-T0018 | ||||
| 90469-12012 | ||||
| 91551-80650 | ||||
| 91551-L0845 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7701 | ||||
