ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1ZRFE,2ZRFE,3ZRFE..GCC,TAIW

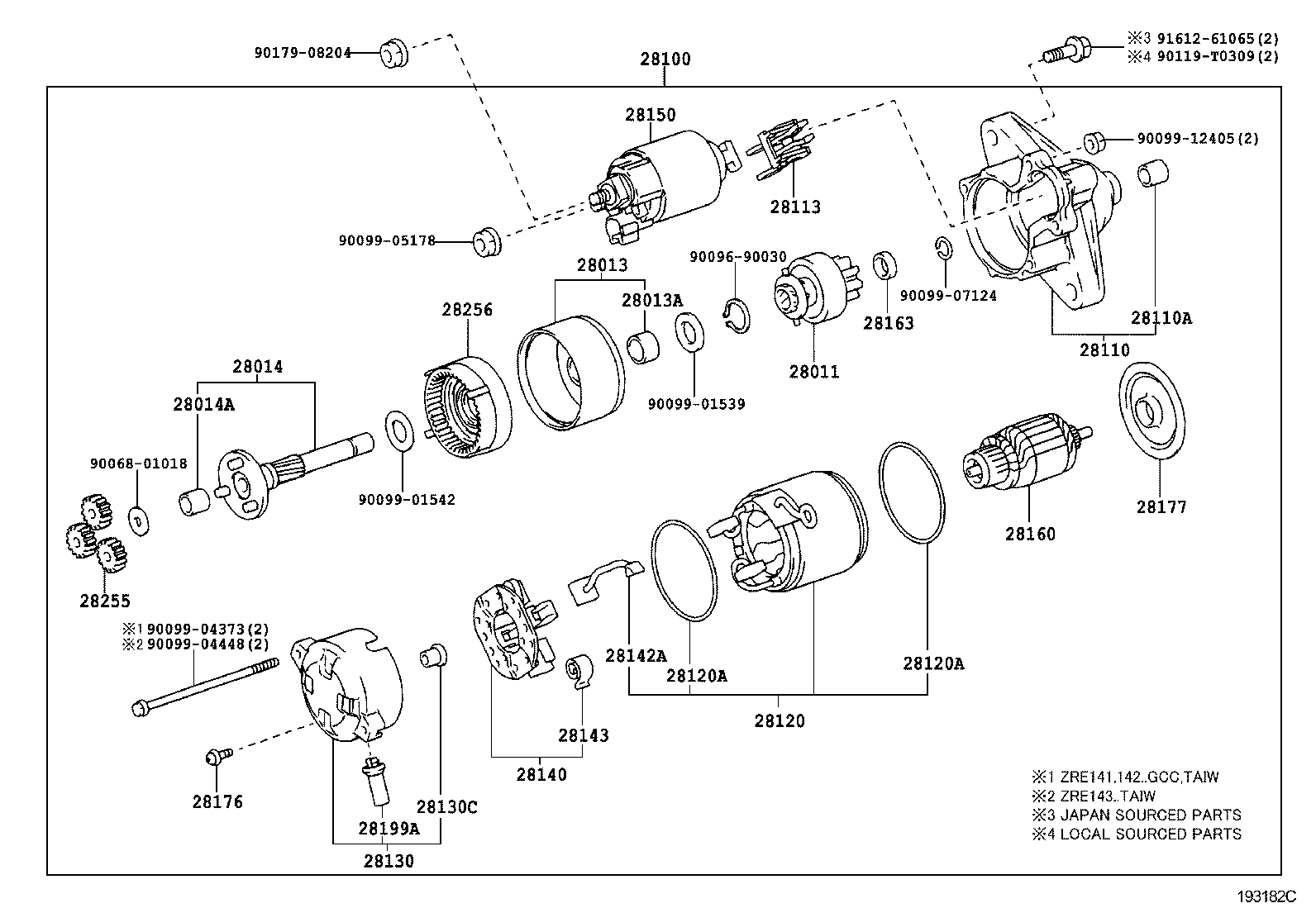

Click highlighted areas on diagram

12V 0.8KW,1.0KW

diagram 28011 28013 28013A 28014 28014A 28100 28110 28110A 28113 28120 28120A 28120A 28130 28130C 28140 28142A 28143 28150 28160 28163 28176 28177 28199A 28255 28256 9006801018 9009690030 9009901539 9009901542 9009904373 9009904448 9009905178 9009907124 9009912405 90119T0309 9017908204 9161261065
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0T080

3ZRFE..ZRE143..TAIW

 1
28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
90099-10181

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-70020

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
28014A - BUSH OR BEARING, PLANET CARRIER SHAFT
90099-10180

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
28100 - STARTER ASSY
28100-0T080

3ZRFE..ZRE143..TAIW

12V 1.0KW

 1
28100-0T081

3ZRFE..ZRE143..TAIW

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0T080

3ZRFE..ZRE143..TAIW

 1
28110A - BEARING(FOR STARTER HOUSING)
90068-10034

3ZRFE..ZRE143..TAIW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0T080

3ZRFE..ZRE143..TAIW

 1
28120 - YOKE ASSY, STARTER
28120-70050

3ZRFE..ZRE143..TAIW

 1
28120-40130

3ZRFE..ZRE143..TAIW

 1
28120A - RING, O(FOR STARTER YOKE)
90099-14092

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 2
28120A - RING, O(FOR STARTER YOKE)
90099-14092

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0T080

3ZRFE..ZRE143..TAIW

 1
28130C - BEARING, STARTER FLANGE
90099-10183

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0T080

3ZRFE..ZRE143..TAIW

 1
28142A - STARTER KIT
28142-70020

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 2
28143 - SPRING, STARTER BRUSH
28143-70020

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 4
28160 - ARMATURE ASSY, STARTER
28160-70050

3ZRFE..ZRE143..TAIW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-70020

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
28176 - SCREW, STARTER
90099-00270

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 2
28177 - PLATE(FOR STARTER ARMATURE)
28177-0T080

3ZRFE..ZRE143..TAIW

 1
28199A - PROTECTOR, DUST STARTER
28199-46080

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
28255 - GEAR, PLANET
28255-70020

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 3
28256 - GEAR, STARTER INTERNAL
28256-0T080

3ZRFE..ZRE143..TAIW

 1
Common parts
90068-01018
90096-90030
90099-01539
90099-01542
90099-04373
90099-04448
90099-05178
90099-07124
90099-12405
90119-T0309
90179-08204
91612-61065
