ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1ZRFE,2ZRFE,3ZRFE..GCC,IDN,MA,PHL,TAIW,TH,VN ; (1207- )1ZRFE..PKN

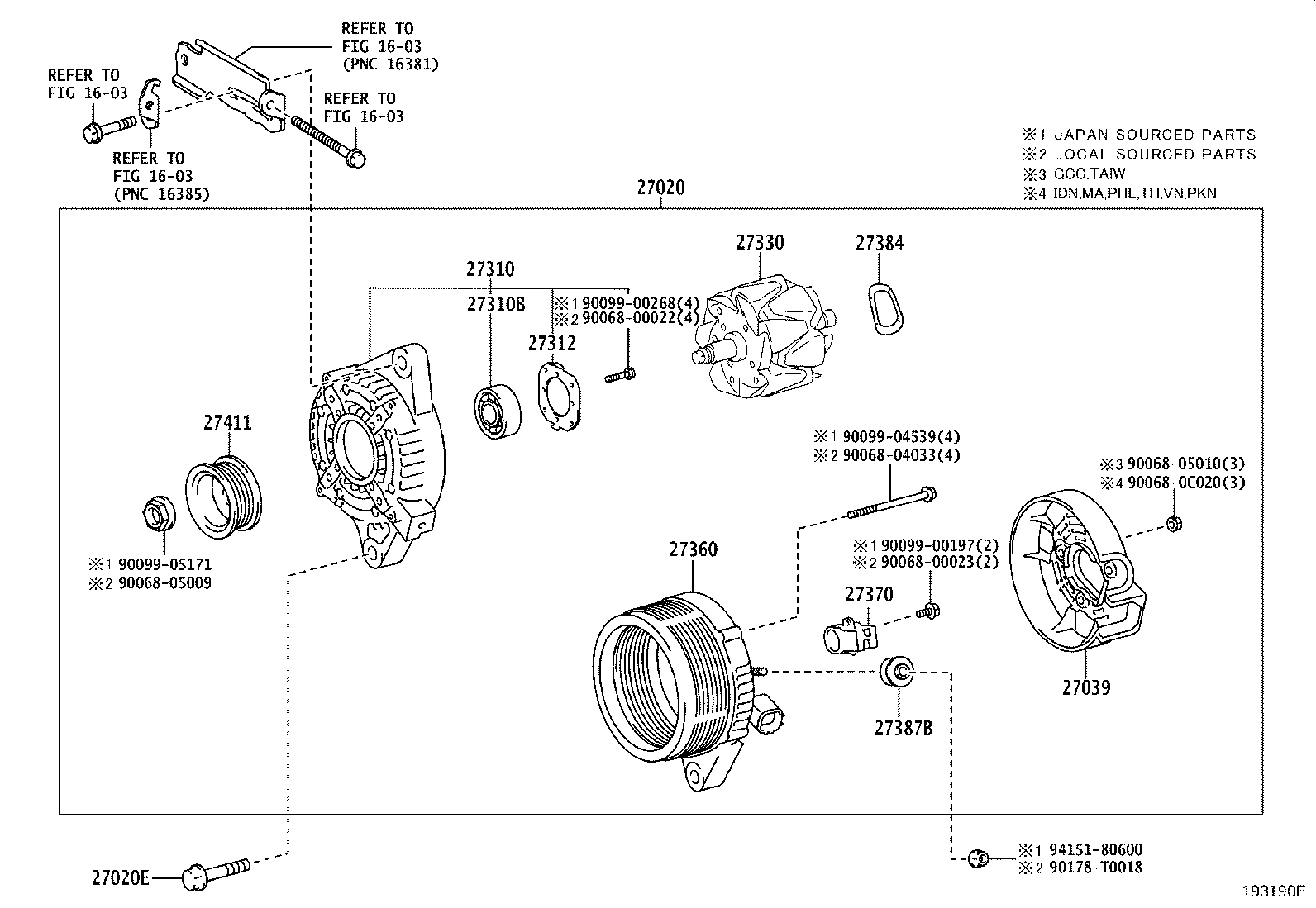

Click highlighted areas on diagram

12V 80A

diagram 1603 1603 1603 1603 27020 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387B 27411 9006800022 9006800023 9006804033 9006805009 9006805010 900680C020 9009900197 9009900268 9009904539 9009905171 90178T0018 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0T110

3ZRFE..ZRE143..TAIW

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10307

3ZRFE..ZRE143..TAIW

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0T100

3ZRFE..ZRE143..TAIW

 1
27310-0T090

3ZRFE..ZRE143..TAIW

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0H080

3ZRFE..ZRE143..TAIW

 1
27360 - COIL ASSY, ALTERNATOR
27360-0T100

3ZRFE..ZRE143..TAIW

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
27384 - WASHER
27384-16380

3ZRFE..ZRE143..TAIW

 1
27411 - PULLEY, ALTERNATOR
27411-0M070

3ZRFE..ZRE143..TAIW

 1
Common parts
90068-00022
90068-00023
90068-04033
90068-05009
90068-05010
90068-0C020
90099-00197
90099-00268
90099-04539
90099-05171
90178-T0018
94151-80600
Linked diagrams
1603
