ZRE143L-GEPEKR (2008)
Toyota Corolla/Altis
Production
Nov 2008
-
Jul 2010
Engine
3ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

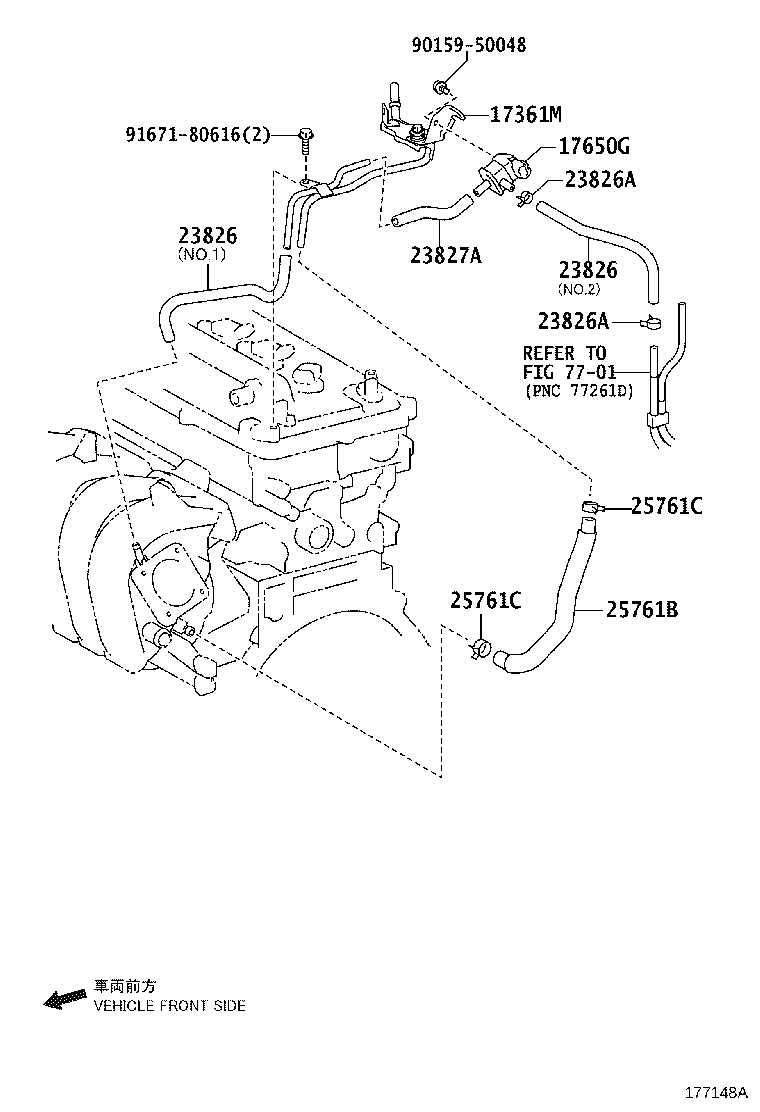

(0811-0910)3ZRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17361M - TUBE, AIR | ||||
| 17361-37010 |
3ZRFE..ZRE143 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12276 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-37020 |
3ZRFE..ZRE143 NO.1 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-37020 |
3ZRFE..ZRE143 NO.1 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-37020 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-37010 |
3ZRFE..ZRE143 |
1 | ||
| 25761-37011 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
3ZRFE..ZRE143..TAIW |
2 | ||
| 96136-41801 |
3ZRFE..ZRE143 |
2 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
3ZRFE..ZRE143..TAIW |
2 | ||
| 96136-41801 |
3ZRFE..ZRE143 |
2 | ||
| Common parts | ||||
| 90159-50048 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 7701 | ||||

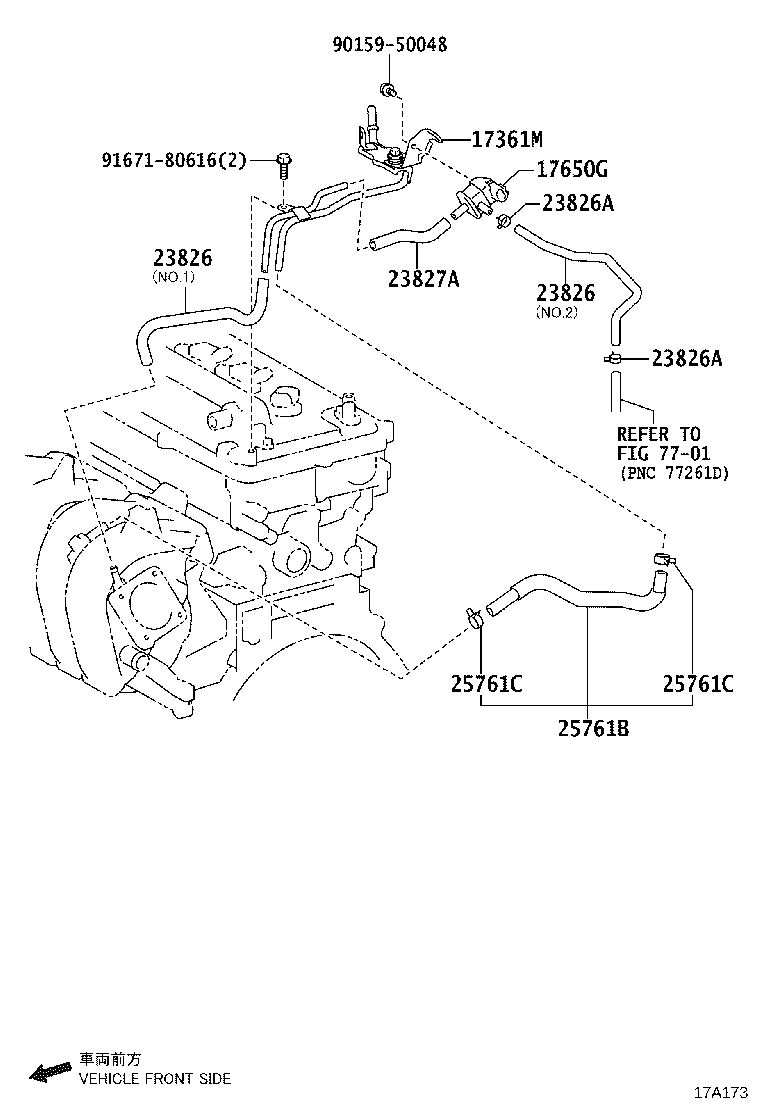

(0910- )1ZRFE,2ZRFE,3ZRFE..4FC,6F..16E,16G,16J,16V,20E,20G,20V,D,GLI,N,XLI
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17361M - TUBE, AIR | ||||
| 17361-37010 |
3ZRFE..ZRE143 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12276 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-37020 |
3ZRFE..ZRE143 NO.1 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-37020 |
3ZRFE..ZRE143 NO.1 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-37020 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-37010 |
3ZRFE..ZRE143 |
1 | ||
| 25761-37011 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
3ZRFE..ZRE143..TAIW |
2 | ||
| 96136-41801 |
3ZRFE..ZRE143 |
2 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
3ZRFE..ZRE143..TAIW |
2 | ||
| 96136-41801 |
3ZRFE..ZRE143 |
2 | ||
| Common parts | ||||
| 90159-50048 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 7701 | ||||
