ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811-1007)3ZRFE..TAIW ; (0812-1008)3ZRFE..IDN,PHL,TH ; (0812-1010)3ZRFE..VN

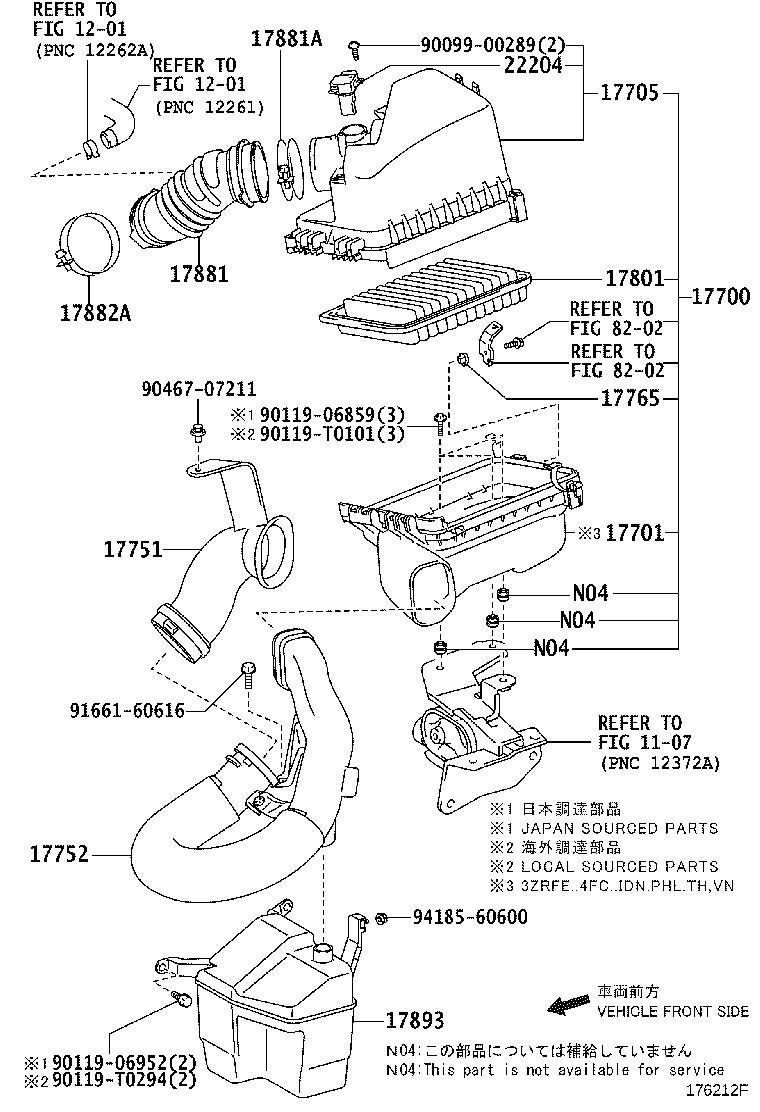

Click highlighted areas on diagram

diagram 1107 1201 1201 17700 17701 17705 17751 17752 17765 17801 17881 17881A 17882A 17893 22204 8202 8202 9009900289 9011906859 9011906952 90119T0101 90119T0294 9046707211 9166160616 9418560600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-0T100

3ZRFE..ZRE143..TAIW

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0T100

3ZRFE..ZRE143..TAIW

 1
17751 - INLET, AIR CLEANER, NO.1
17751-37060

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
17752 - INLET, AIR CLEANER, NO.2
17752-37070

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
17765 - STAY, AIR CLEANER, NO.1
17706-22010

1ZZFE..ZZE142..18V..IND;1ZZFE..ZZE142..(18E,18J)..TAIW;3Z#..ZRE143,ZZE141..(16E,20E,20G,20V)..(IDN,MA,PHL,TAIW);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN)

 1
17706-21010

1ZZFE,3Z#..ZRE143,ZZE14#..GCC,TAIW

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0M020

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-0T100

3ZRFE..ZRE143..TAIW

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

3ZRFE..ZRE143..TAIW

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

3ZRFE..ZRE143..TAIW

 1
17893 - RESONATOR, INTAKE AIR
17893-22030

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
Common parts
90099-00289
90119-06859
90119-06952
90119-T0101
90119-T0294
90467-07211
91661-60616
94185-60600
Linked diagrams
1107
1201
8202
