ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1ZRFE,2ZRFE,3ZRFE..4FC,6F..16E,16G,16J,16V,20E,20G,20V,D,GLI,N,XLI

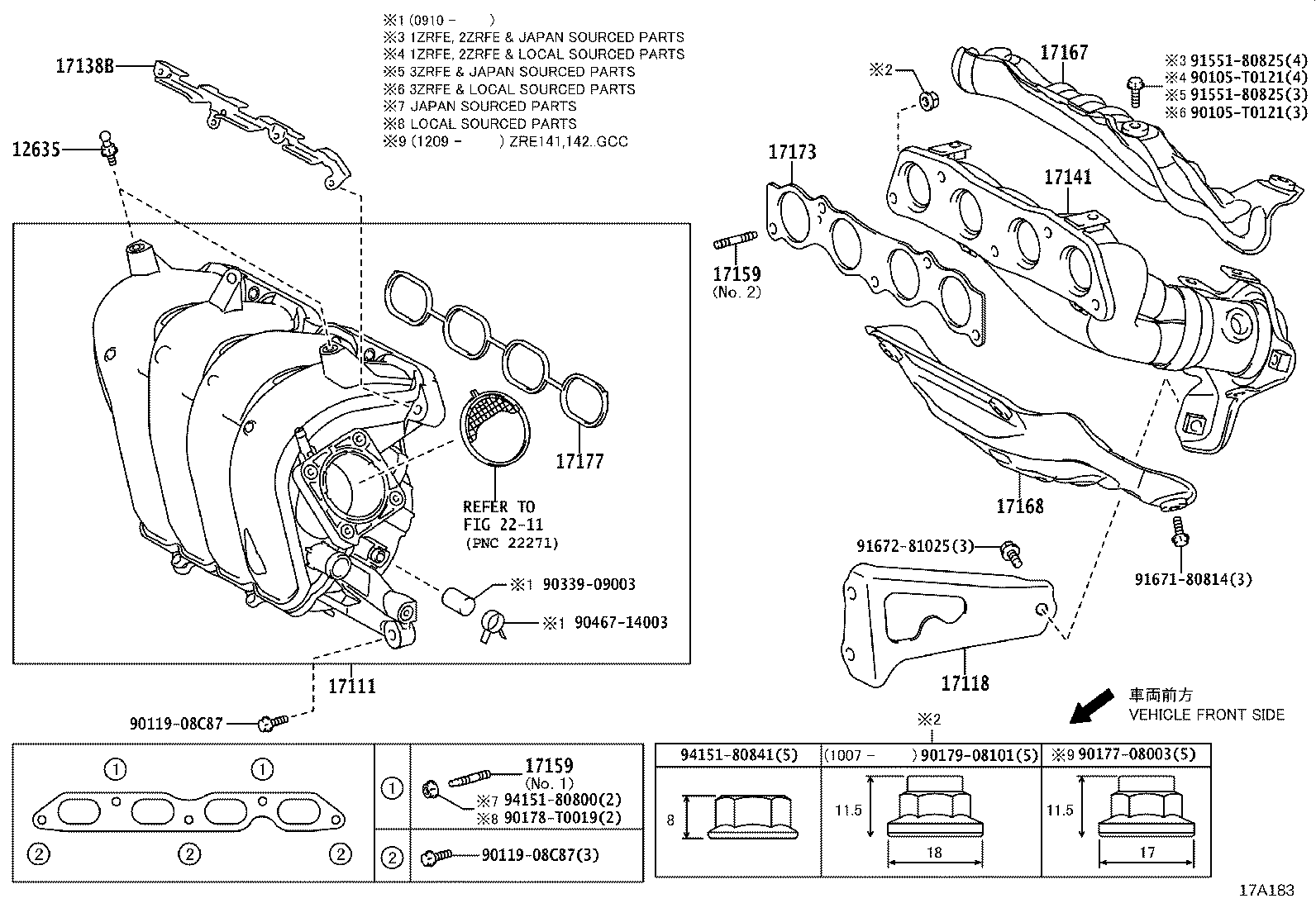

Click highlighted areas on diagram

diagram 12635 17111 17118 17138B 17141 17159 17159 17167 17168 17173 17177 2211 90105T0121 90105T0121 9011908C87 9011908C87 9017708003 90178T0019 9017908101 9033909003 9046714003 9155180825 9155180825 9167180814 9167281025 9415180800 9415180841
Part # Description Qty Price
12635 - JOINT, ENGINE COVER
90109-06385

3ZRFE..ZRE143..TAIW

 2
17111 - MANIFOLD, INTAKE
17120-37030

3ZRFE..ZRE143

 1
17118 - STAY, MANIFOLD
17118-37050

3ZRFE..ZRE143..TAIW

 1
17138B - STAY, INTAKE MANIFOLD
17138-37010

3ZRFE..ZRE143..TAIW

 1
17141 - MANIFOLD, EXHAUST
17141-37080

3ZRFE..ZRE143..TAIW

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37050

3ZRFE..ZRE143..TAIW

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37070

3ZRFE..ZRE143..TAIW

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010

3ZRFE..ZRE143..TAIW

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030

3ZRFE..ZRE143..TAIW

 1
Common parts
90105-T0121
90119-08C87
90177-08003
90178-T0019
90179-08101
90339-09003
90467-14003
91551-80825
91671-80814
91672-81025
94151-80800
94151-80841
Linked diagrams
2211
