ZRE143L-GEPEKR (2008)
Toyota Corolla/Altis
Production
Nov 2008
-
Jul 2010
Engine
3ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1ZRFE,2ZRFE,3ZRFE

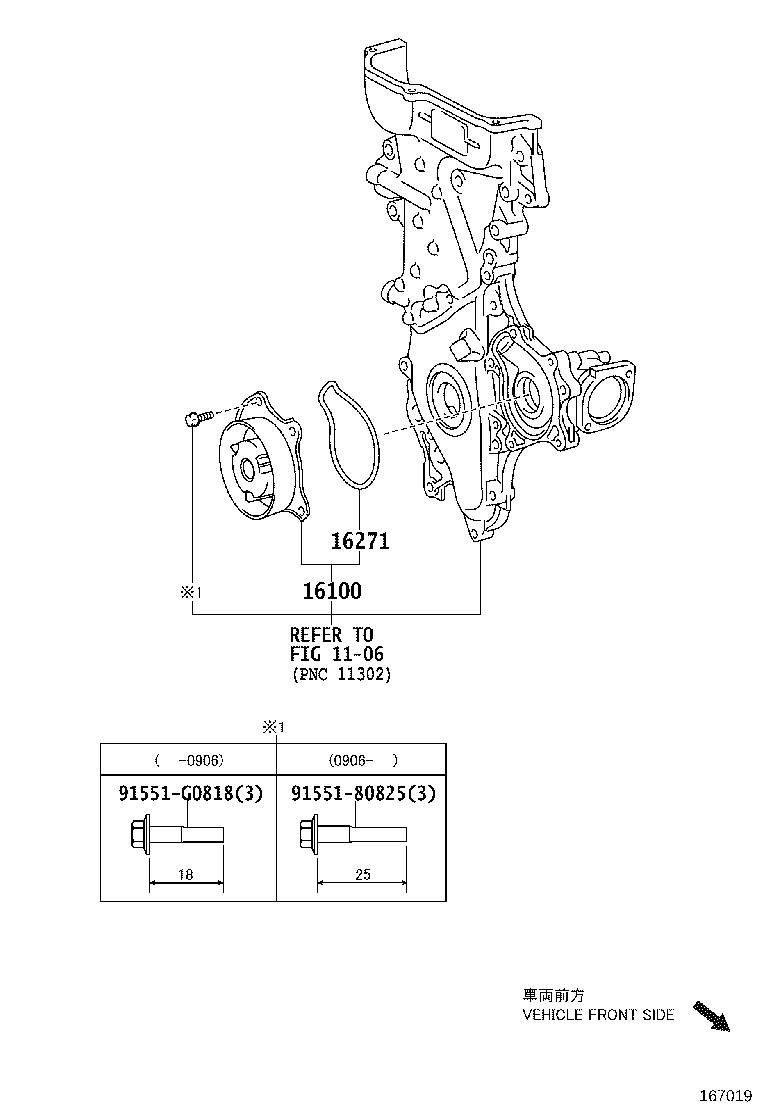

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39465 |
3ZRFE..ZRE143 |
1 | ||
| 16100-39466 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-37010 |
3ZRFE..ZRE143..TAIW |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| 91551-G0818 | ||||
| Linked diagrams | ||||
| 1106 | ||||
