ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1ZRFE,2ZRFE,3ZRFE

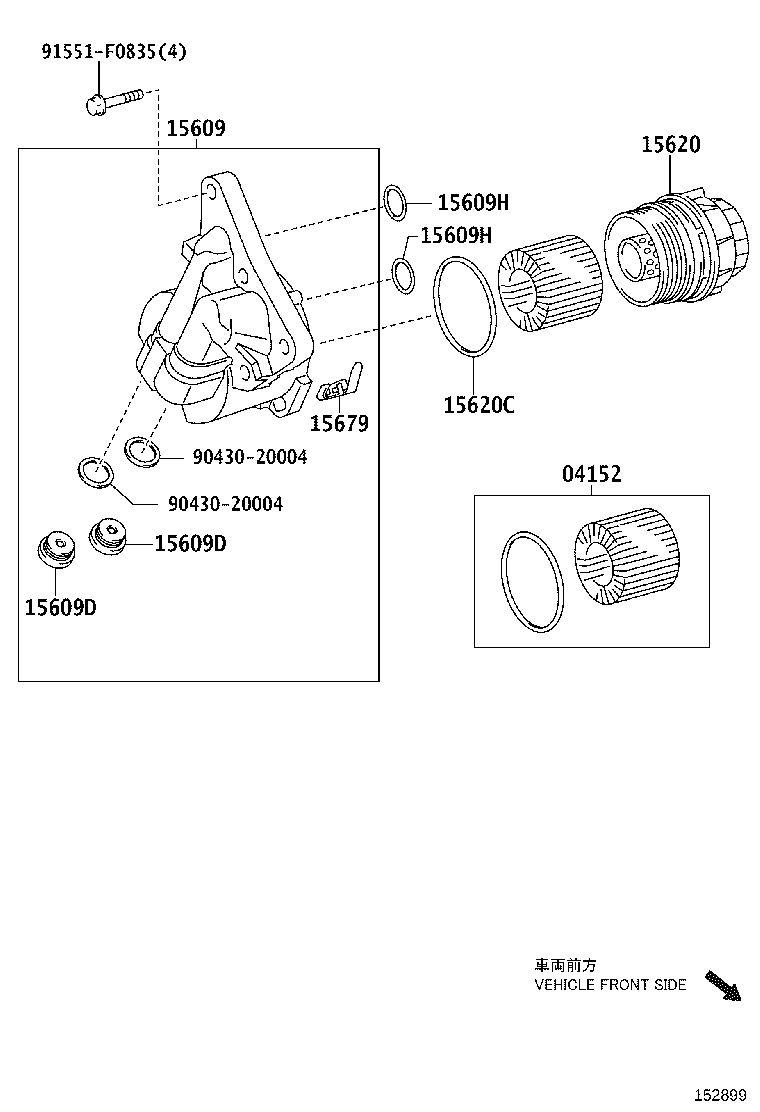

Click highlighted areas on diagram

diagram 04152 15609 15609D 15609D 15609H 15609H 15620 15620C 15679 9043020004 9043020004 91551F0835
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-37010

3ZRFE..ZRE143..TAIW

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-37040

3ZRFE..ZRE143..TAIW

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

3ZRFE..ZRE143..TAIW

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

3ZRFE..ZRE143..TAIW

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

3ZRFE..ZRE143..TAIW

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

3ZRFE..ZRE143..TAIW

 2
15620 - CAP ASSY, OIL FILTER
15620-37010

3ZRFE..ZRE143..TAIW

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-69011

3ZRFE..ZRE143..TAIW

 1
15679 - CLIP, OIL FILTER BRACKET
15679-37010

3ZRFE..ZRE143..TAIW

 1
Common parts
90430-20004
91551-F0835
