ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1ZRFE,2ZRFE,3ZRFE

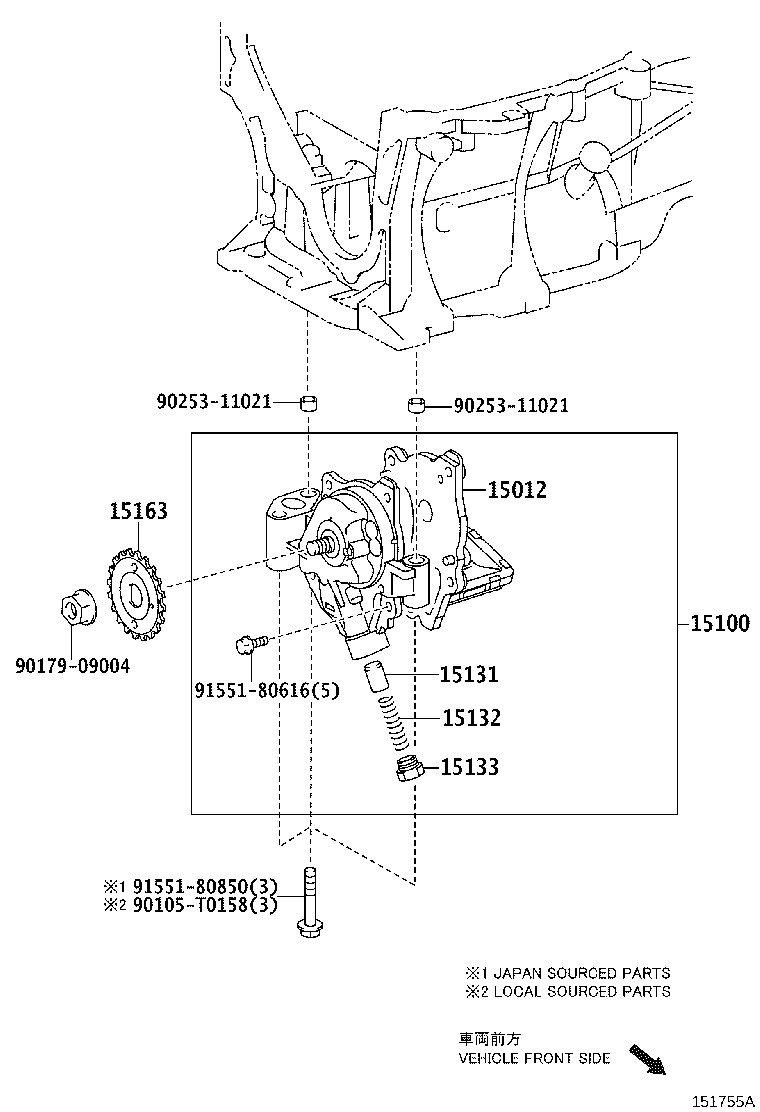

Click highlighted areas on diagram

diagram 15012 15100 15131 15132 15133 15163 90105T0158 9017909004 9025311021 9025311021 9155180616 9155180850
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-37010

3ZRFE..ZRE143..TAIW

 1
15100 - PUMP ASSY, OIL
15100-37030

3ZRFE..ZRE143..TAIW

 1
15131 - VALVE, OIL PUMP RELIEF
15131-0A040

3ZRFE..ZRE143..TAIW

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46060

3ZRFE..ZRE143..TAIW

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-28020

3ZRFE..ZRE143..TAIW

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-28010

3ZRFE..ZRE143..TAIW

 1
Common parts
90105-T0158
90179-09004
90253-11021
91551-80616
91551-80850
