ZRE143L-GEPEKR (2008)
Toyota Corolla/Altis
(0811- )1ZRFE,2ZRFE,3ZRFE

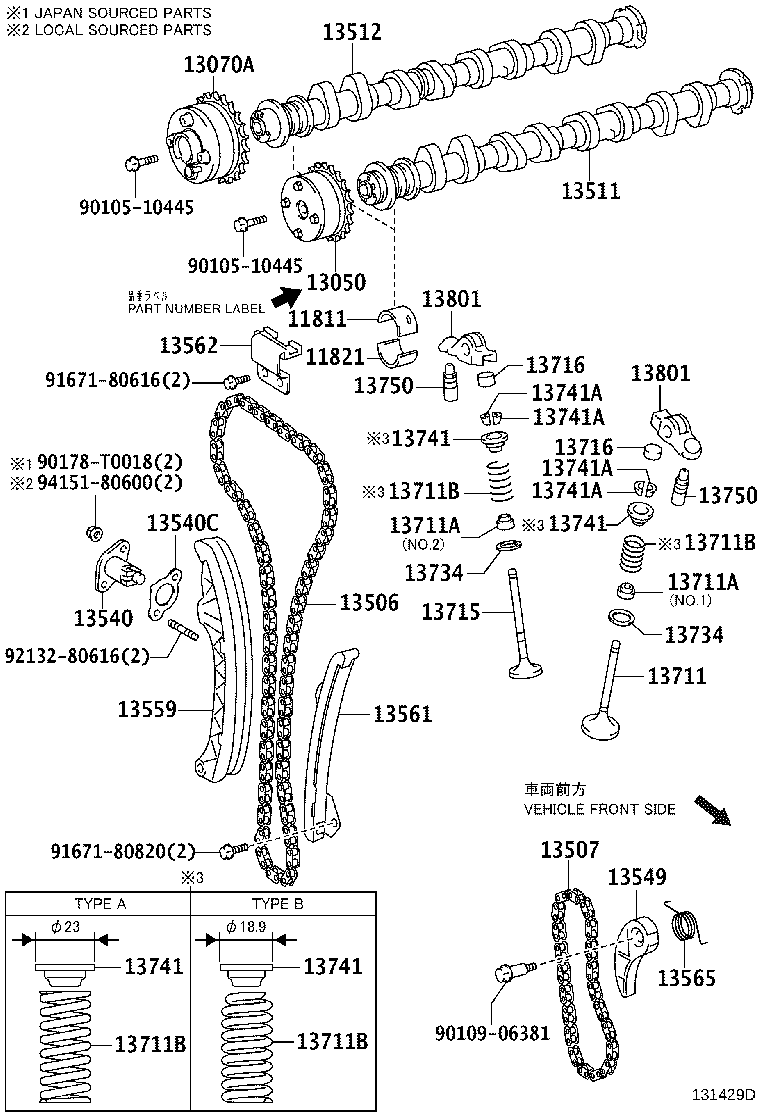

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11811 - BEARING, CAMSHAFT, NO.1 | ||||
| 11811-37010 |
3ZRFE..ZRE143..TAIW |
2 | ||
| 11821 - BEARING, CAMSHAFT, NO.2 | ||||
| 11821-37010 |
3ZRFE..ZRE143..TAIW |
2 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0T022 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13050-37012 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13050-0T021 |
3ZRFE..ZRE143 MADE IN CHINA |
1 | ||
| 13050-0T011 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13050-0T010 |
3ZRFE..ZRE143 MADE IN USA |
1 | ||
| 13050-0T021 |
3ZRFE..ZRE143 MADE IN CHINA |
1 | ||
| 13050-0T011 |
3ZRFE..ZRE143..TAIW PART NUMBER LABEL=13050-0T011 |
1 | ||
| 13050-0T010 |
3ZRFE..ZRE143 MADE IN USA |
1 | ||
| 13050-37012 |
3ZRFE..ZRE143..TAIW PART NUMBER LABEL=13050-37012 |
1 | ||
| 13050-0T022 |
3ZRFE..ZRE143..TAIW PART NUMBER LABEL=13050-0T022 |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-37010 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-37020 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-28010 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-37011 |
3ZRFE..ZRE143..TAIW (J) |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-37030 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-37010 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13549 - PLATE, CHAIN TENSIONER | ||||
| 13549-37010 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-37020 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-37020 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-37010 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13565 - SPRING, CHAIN DAMPER | ||||
| 13565-37010 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
3ZRFE..ZRE143..TAIW |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
3ZRFE..ZRE143..TAIW |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
3Z#..ZRE143,ZZE141..4FC,5F;1ZZFE..ZZE142..GCC,IDN,IND,MA,PHL,PKN,TAIW,TH |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
3Z#..ZRE143,ZZE141..4FC,5F;1ZZFE..ZZE142..GCC,IDN,IND,MA,PHL,PKN,TAIW,TH |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
3Z#..ZRE143,ZZE141..4FC,5F;1ZZFE..ZZE142..GCC,IDN,IND,MA,PHL,PKN,TAIW,TH |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
3Z#..ZRE143,ZZE141..4FC,5F;1ZZFE..ZZE142..GCC,IDN,IND,MA,PHL,PKN,TAIW,TH |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
3ZRFE..ZRE143..TAIW |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
3ZRFE..ZRE143..TAIW |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-23011 |
3ZRFE..ZRE143..TAIW |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-23011 |
3ZRFE..ZRE143..TAIW |
16 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90109-06381 | ||||
| 90178-T0018 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 92132-80616 | ||||
| 94151-80600 | ||||
