ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1ZRFE,2ZRFE,3ZRFE

Click highlighted areas on diagram

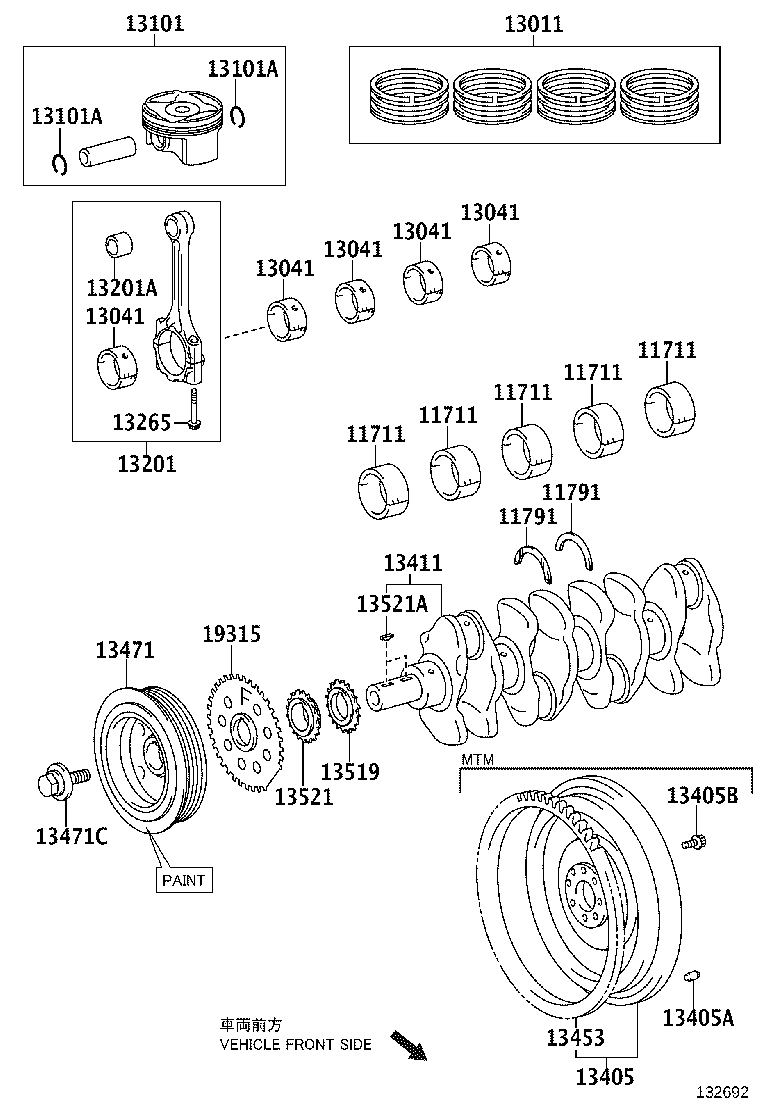

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13265 13405 13405A 13405B 13411 13453 13471 13471C 13519 13521 13521A 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-3702003

3ZRFE..ZRE143..TAIW

MARK3,REFER REPAIR MANUAL

 5
11701-3702002

3ZRFE..ZRE143..TAIW

MARK2,REFER REPAIR MANUAL

 5
11701-3702004

3ZRFE..ZRE143..TAIW

MARK4,REFER REPAIR MANUAL

 5
11701-3702001

3ZRFE..ZRE143..TAIW

MARK1,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702003

3ZRFE..ZRE143..TAIW

MARK3,REFER REPAIR MANUAL

 5
11701-3702002

3ZRFE..ZRE143..TAIW

MARK2,REFER REPAIR MANUAL

 5
11701-3702004

3ZRFE..ZRE143..TAIW

MARK4,REFER REPAIR MANUAL

 5
11701-3702001

3ZRFE..ZRE143..TAIW

MARK1,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702003

3ZRFE..ZRE143..TAIW

MARK3,REFER REPAIR MANUAL

 5
11701-3702002

3ZRFE..ZRE143..TAIW

MARK2,REFER REPAIR MANUAL

 5
11701-3702004

3ZRFE..ZRE143..TAIW

MARK4,REFER REPAIR MANUAL

 5
11701-3702001

3ZRFE..ZRE143..TAIW

MARK1,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702003

3ZRFE..ZRE143..TAIW

MARK3,REFER REPAIR MANUAL

 5
11701-3702002

3ZRFE..ZRE143..TAIW

MARK2,REFER REPAIR MANUAL

 5
11701-3702004

3ZRFE..ZRE143..TAIW

MARK4,REFER REPAIR MANUAL

 5
11701-3702001

3ZRFE..ZRE143..TAIW

MARK1,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702003

3ZRFE..ZRE143..TAIW

MARK3,REFER REPAIR MANUAL

 5
11701-3702002

3ZRFE..ZRE143..TAIW

MARK2,REFER REPAIR MANUAL

 5
11701-3702004

3ZRFE..ZRE143..TAIW

MARK4,REFER REPAIR MANUAL

 5
11701-3702001

3ZRFE..ZRE143..TAIW

MARK1,REFER REPAIR MANUAL

 5
13041 - BEARING, CONNECTING ROD
13041-3703001

3ZRFE..ZRE143..TAIW

MARK1,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFE..ZRE143..TAIW

MARK3,REFER REPAIR MANUAL

 4
13041-3703002

3ZRFE..ZRE143..TAIW

MARK2,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703001

3ZRFE..ZRE143..TAIW

MARK1,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFE..ZRE143..TAIW

MARK3,REFER REPAIR MANUAL

 4
13041-3703002

3ZRFE..ZRE143..TAIW

MARK2,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703001

3ZRFE..ZRE143..TAIW

MARK1,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFE..ZRE143..TAIW

MARK3,REFER REPAIR MANUAL

 4
13041-3703002

3ZRFE..ZRE143..TAIW

MARK2,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703001

3ZRFE..ZRE143..TAIW

MARK1,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFE..ZRE143..TAIW

MARK3,REFER REPAIR MANUAL

 4
13041-3703002

3ZRFE..ZRE143..TAIW

MARK2,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703001

3ZRFE..ZRE143..TAIW

MARK1,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFE..ZRE143..TAIW

MARK3,REFER REPAIR MANUAL

 4
13041-3703002

3ZRFE..ZRE143..TAIW

MARK2,REFER REPAIR MANUAL

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

1ZZFE,3Z#..ZRE143,ZZE14#..4FC,5F

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

1ZZFE,3Z#..ZRE143,ZZE14#..4FC,5F

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-39205

3ZRFE..ZRE143..TAIW

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73151

3ZZFE..ZZE141..16E..(MA,PHL);3ZZFE..ZZE141..(16G,16J,16V,LIMO,XLI)..(GCC,PHL,TH);1ZZFE,3ZRFE..ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 4
13265 - BOLT, CONNECTING ROD
13265-22020

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 8
13411 - CRANKSHAFT
13401-37031

3ZRFE..ZRE143..TAIW

 1
13471 - PULLEY, CRANKSHAFT
13470-37020

3ZRFE..ZRE143..TAIW

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14106

3ZRFE..ZRE143..TAIW

 1
13519 - GEAR, OIL PUMP DRIVE
13519-37010

3ZRFE..ZRE143..TAIW

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-37020

3ZRFE..ZRE143..TAIW

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04003

3ZRFE..ZRE143..TAIW

 2
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-37020

3ZRFE..ZRE143..TAIW

 1
