ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811-1007)3ZRFE..TAIW ; (0812-1008)3ZRFE..IDN,PHL,TH ; (0906-1010)3ZRFE..VN

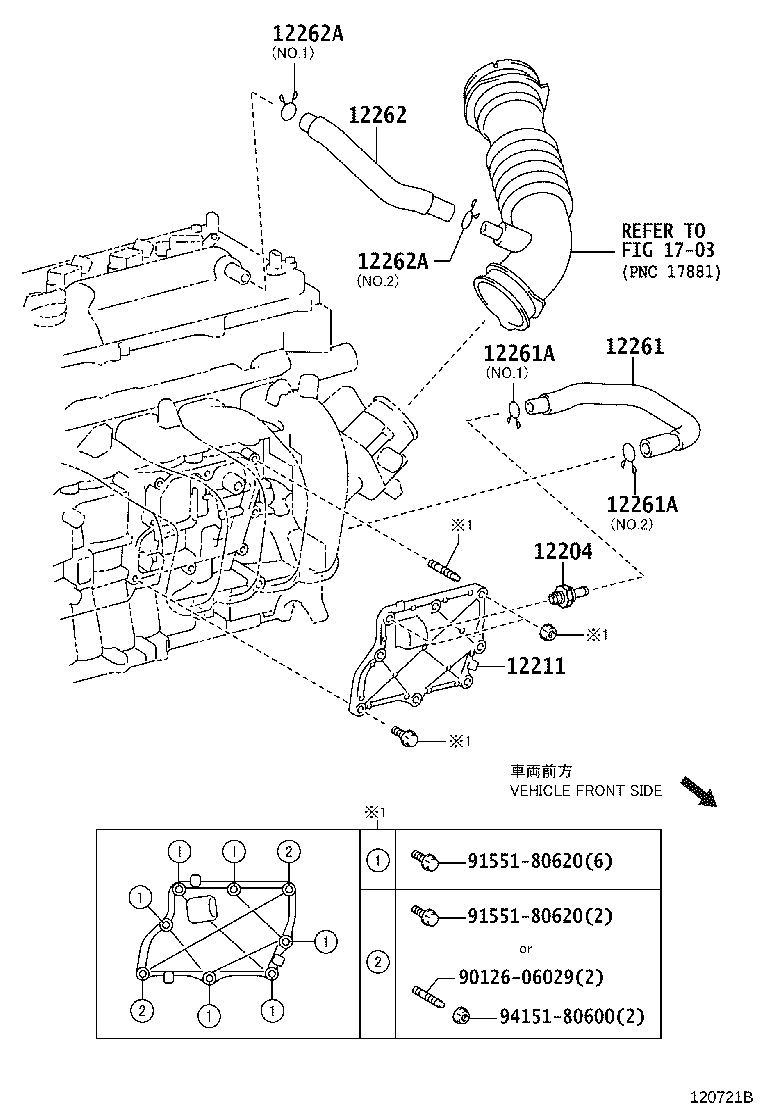

Click highlighted areas on diagram

diagram 12204 12211 12261 12261A 12261A 12262 12262A 12262A 1703 9012606029 9155180620 9155180620 9415180600
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-37010

3ZRFE..ZRE143..TAIW

 1
12211 - CASE, VENTILATION, NO.1
12211-37010

3ZRFE..ZRE143..TAIW

 1
12261 - HOSE, VENTILATION
12261-37040

3ZRFE..ZRE143

 1
12261-37080

3ZRFE..ZRE143..TAIW

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

3ZRFE..ZRE143..TAIW

NO.2

 1
90467-15120

3ZRFE..ZRE143..TAIW

NO.1

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

3ZRFE..ZRE143..TAIW

NO.2

 1
90467-15120

3ZRFE..ZRE143..TAIW

NO.1

 1
12262 - HOSE, VENTILATION, NO.2
12262-37020

3ZRFE..ZRE143..TAIW

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

3ZRFE..ZRE143..TAIW

NO.1,(J),NO.2

 1
90466-T0027

3ZRFE..ZRE143..TAIW

(L),NO.2

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

3ZRFE..ZRE143..TAIW

NO.1,(J),NO.2

 1
90466-T0027

3ZRFE..ZRE143..TAIW

(L),NO.2

 1
Common parts
90126-06029
91551-80620
94151-80600
Linked diagrams
1703
