ZRE143L-GEPEKR (2008)
Toyota Corolla/Altis
Production
Nov 2008
-
Jul 2010
Engine
3ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )3ZRFE..4FC

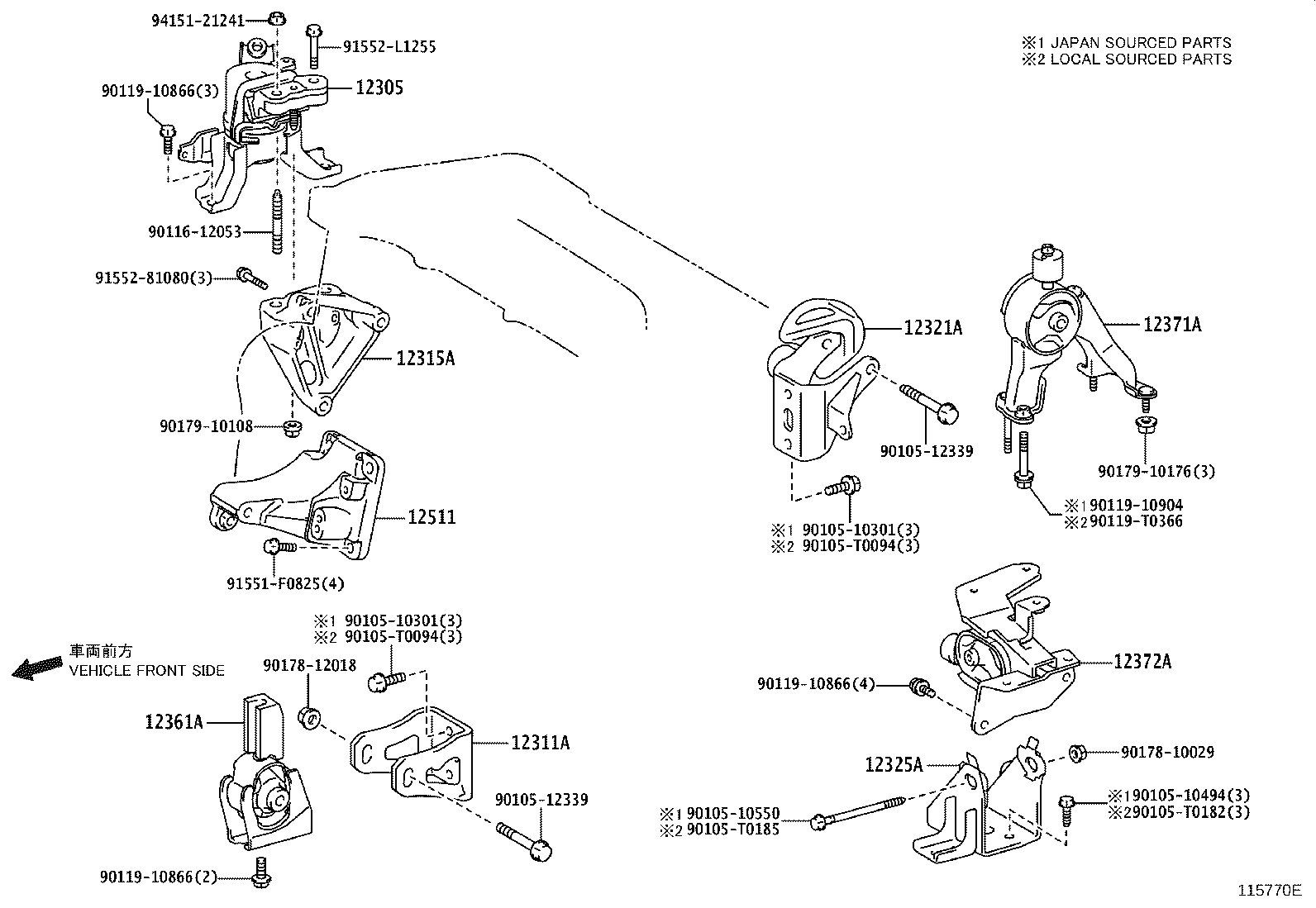

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-37200 |
3ZRFE..ZRE143 |
1 | ||
| 12305-37201 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0T130 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T160 |
3ZRFE..ZRE143..TAIW (L) |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12304-0T130 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T091 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 12361-0T090 |
3ZRFE..ZRE143 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-37110 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T140 |
3ZRFE..ZRE143..TAIW |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-37010 |
3ZRFE..ZRE143..TAIW |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12339 | ||||
| 90105-T0094 | ||||
| 90105-T0182 | ||||
| 90105-T0185 | ||||
| 90116-12053 | ||||
| 90119-10866 | ||||
| 90119-10904 | ||||
| 90119-T0366 | ||||
| 90178-10029 | ||||
| 90178-12018 | ||||
| 90179-10108 | ||||
| 90179-10176 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| 91552-L1255 | ||||
| 94151-21241 | ||||
