ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1ZRFE,2ZRFE,3ZRFE

Click highlighted areas on diagram

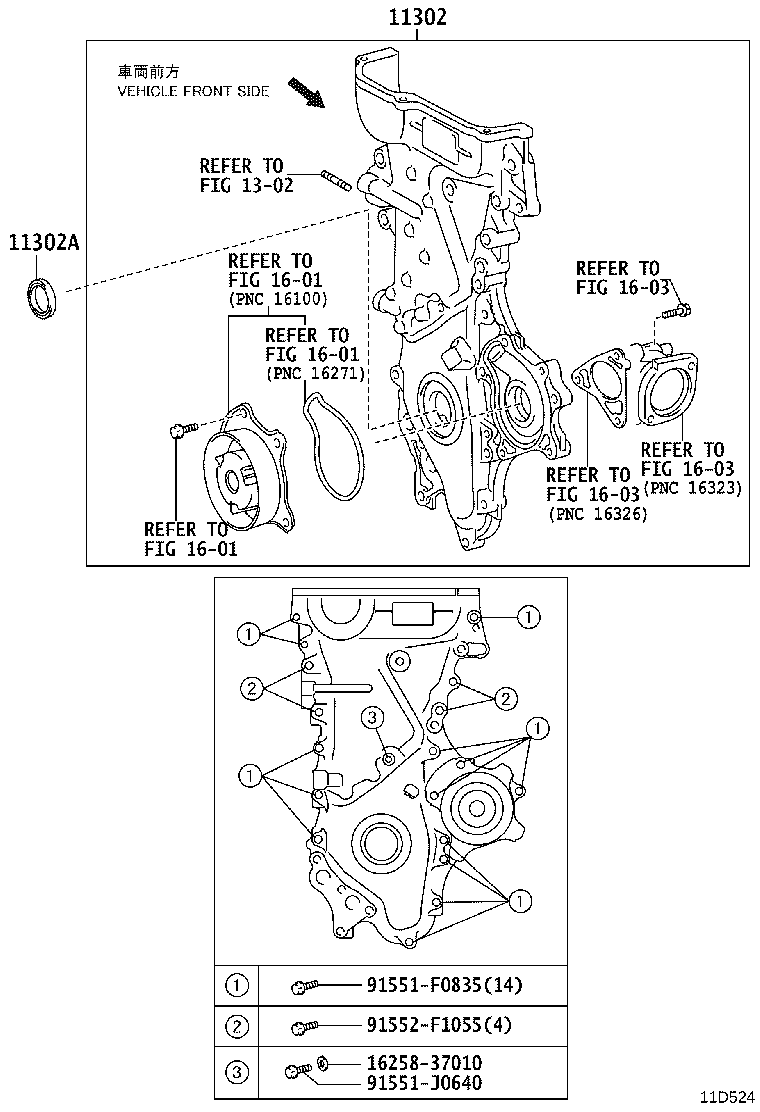

diagram 11302 11302A 1302 1601 1601 1601 1603 1603 1603 1625837010 91551F0835 91551J0640 91552F1055
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-37031

3ZRFE..ZRE143..TAIW

 1
Common parts
16258-37010
91551-F0835
91551-J0640
91552-F1055
Linked diagrams
1302
1601
1603
