ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

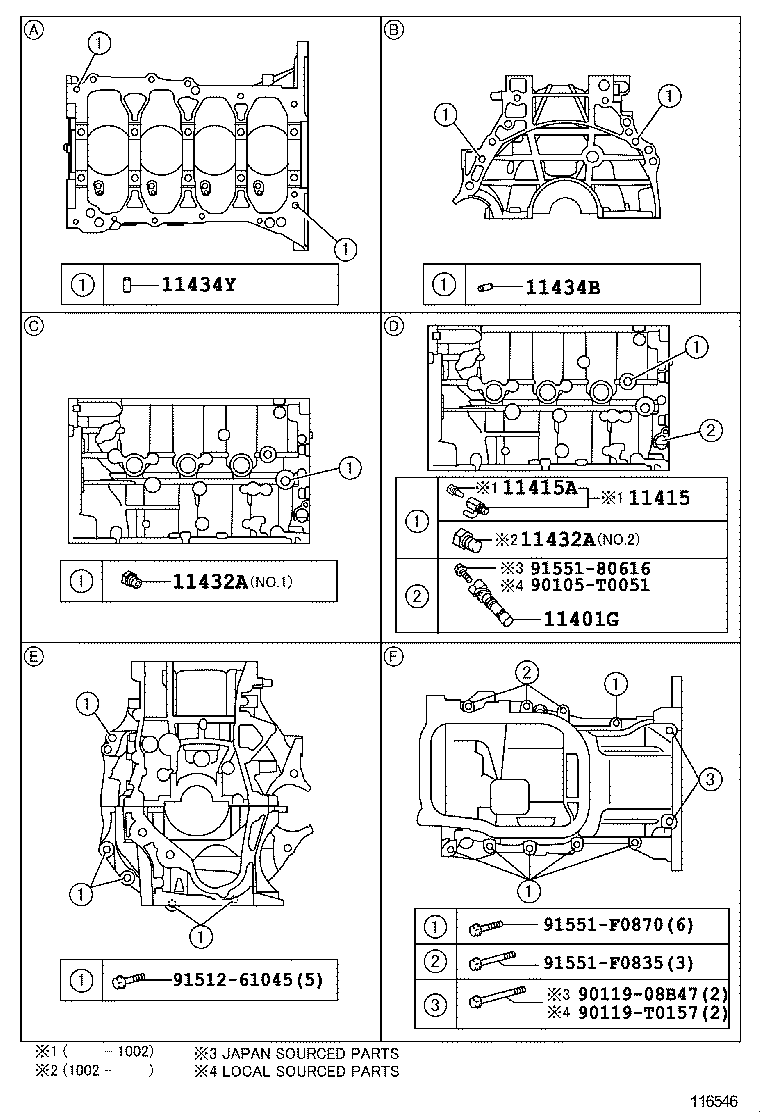

ILLUST NO. 2 OF 2(0811- )1ZRFE,2ZRFE,3ZRFE

Click highlighted areas on diagram

diagram 11401G 11415 11415A 11432A 11432A 11434B 11434Y 90105T0051 9011908B47 90119T0157 9151261045 9155180616 91551F0835 91551F0870
Part # Description Qty Price
11401G - SENSOR, CRANK POSITION
90919-05070

3ZRFE..ZRE143..TAIW

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

3ZRFE..ZRE143

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

3ZRFE..ZRE143

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53006

3ZRFE..ZRE143..TAIW

NO.1

 1
90345-52001

3ZRFE..ZRE143..TAIW

NO.2

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53006

3ZRFE..ZRE143..TAIW

NO.1

 1
90345-52001

3ZRFE..ZRE143..TAIW

NO.2

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

L=22,OD=10

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-08074

3ZRFE..ZRE143

L=15

 2
90250-08120

3ZRFE..ZRE143..TAIW

L=18

 2
Common parts
90105-T0051
90119-08B47
90119-T0157
91512-61045
91551-80616
91551-F0835
91551-F0870

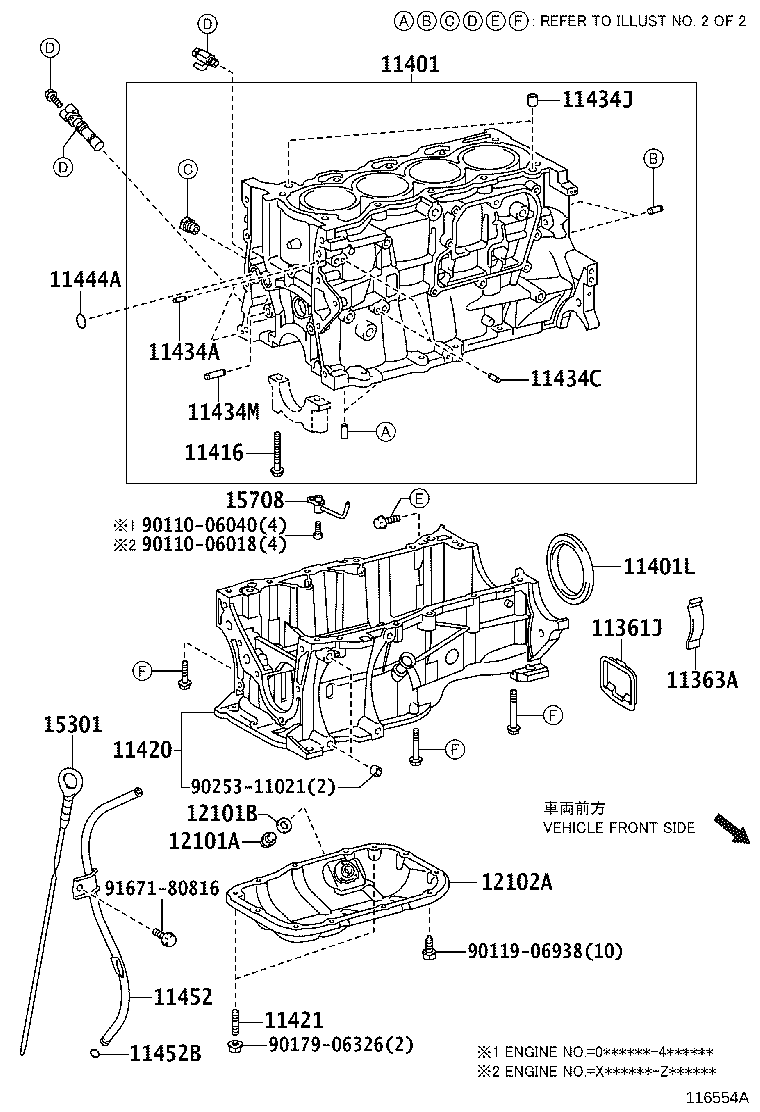

ILLUST NO. 1 OF 2(0811- )1ZRFE,2ZRFE,3ZRFE

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401L 11416 11420 11421 11434A 11434C 11434J 11434M 11444A 11452 11452B 12101A 12101B 12102A 15301 15708 9011006018 9011006040 9011906938 9017906326 9025311021 9167180816
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-21011

3ZRFE..ZRE143..TAIW

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-21010

3ZRFE..ZRE143..TAIW

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-39035

3ZRFE..ZRE143..TAIW

 1
11401L - SEAL, ENGINE REAR OIL
90311-76002

3ZRFE..ZRE143..TAIW

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02163

3ZRFE..ZRE143..TAIW

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-37020

3ZRFE..ZRE143..TAIW

 1
11421 - BOLT, STUD(FOR OIL PAN)
90126-06015

3ZRFE..ZRE143

 2
90126-06028

3ZRFE..ZRE143..TAIW

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

3ZRFE..ZRE143..TAIW

L=12,OD=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-04097

3ZRFE..ZRE143..TAIW

L=12,OD=4.0

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13001

3ZRFE..ZRE143..TAIW

 2
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-10030

3ZRFE..ZRE143..TAIW

 1
11444A - RING, O
96723-24020

3ZRFE..ZRE143..TAIW

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-37020

3ZRFE..ZRE143..TAIW

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-37010

3ZRFE..ZRE143..TAIW

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-37020

3ZRFE..ZRE143..TAIW

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-37011

3ZRFE..ZRE143..TAIW

 4
Common parts
90110-06018
90110-06040
90119-06938
90179-06326
90253-11021
91671-80816
