ZRE143L-GEPEKR (2008)

Toyota Corolla/Altis

Production Nov 2008 - Jul 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

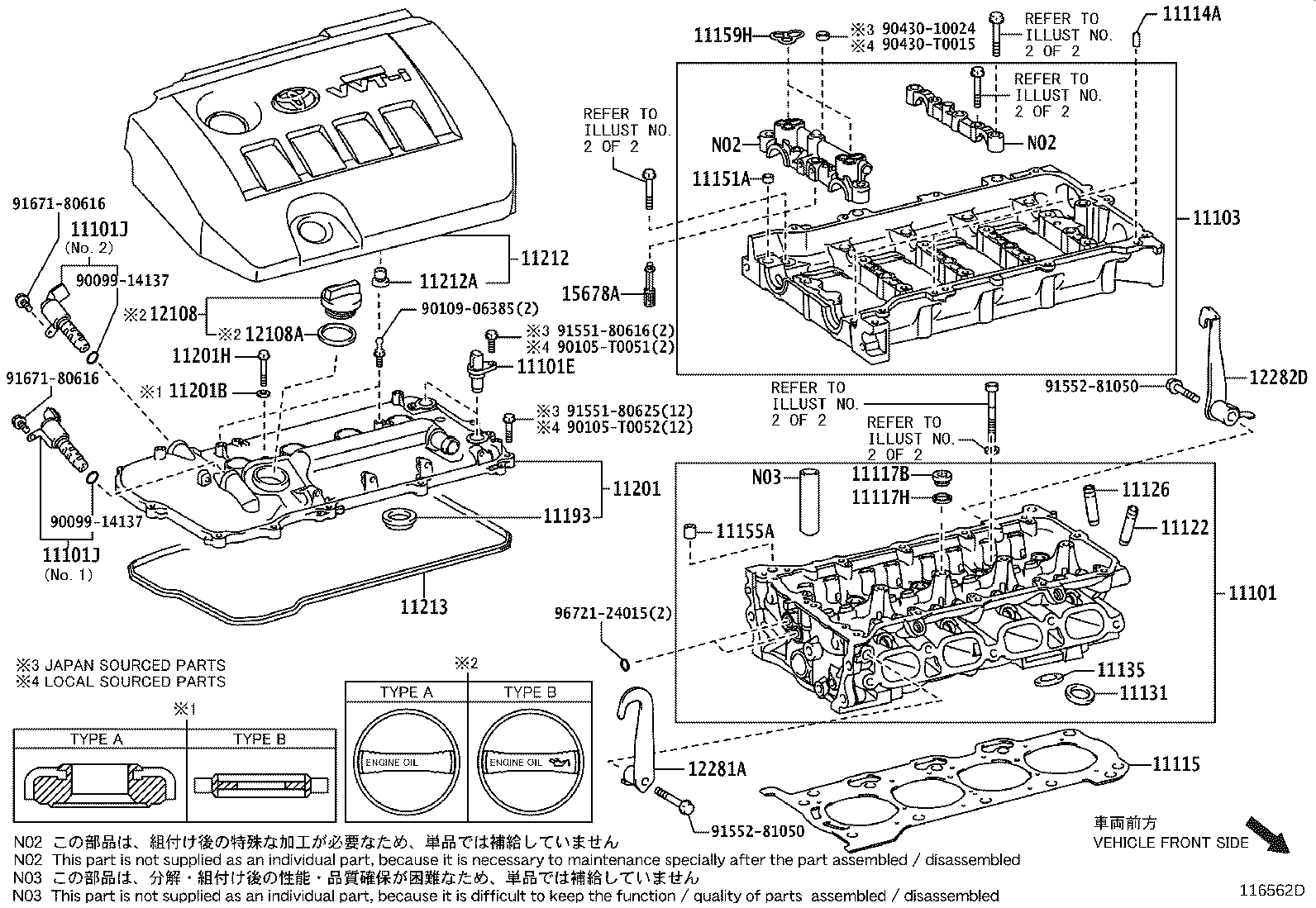

ILLUST NO. 1 OF 2(0811- )1ZRFE,2ZRFE,3ZRFE

Click highlighted areas on diagram

diagram 11101 11101E 11101J 11101J 11103 11114A 11115 11117B 11117H 11122 11126 11131 11135 11151A 11155A 11159H 11193 11201 11201B 11201H 11212 11212A 11213 12108 12108A 12281A 12282D 15678A 9009914137 9009914137 90105T0051 90105T0052 9010906385 9043010024 90430T0015 9155180616 9155180625 9155281050 9155281050 9167180616 9167180616 9672124015
Part # Description Qty Price
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-37020

3ZRFE..ZRE143..TAIW

NO.2

 1
15330-37010

3ZRFE..ZRE143..TAIW

NO.1

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-37020

3ZRFE..ZRE143..TAIW

NO.2

 1
15330-37010

3ZRFE..ZRE143..TAIW

NO.1

 1
11103 - HOUSING SUB-ASSY, CAMSHAFT
11103-37020

3ZRFE..ZRE143

 1
11114A - PIN, STRAIGHT
90250-06001

3ZRFE..ZRE143..TAIW

L=14,OD=6

 2
11115 - GASKET, CYLINDER HEAD
11115-37040

3ZRFE..ZRE143

 1
11115-37051

3ZRFE..ZRE143..TAIW

 1
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-13005

3ZRFE..ZRE143..TAIW

L=12.5,OD=8

 10
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
11159-37010

3ZRFE..ZRE143..TAIW

 2
11193 - GASKET, SPARK PLUG TUBE
11193-37020

3ZRFE..ZRE143..TAIW

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-37022

3ZRFE..ZRE143..TAIW

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
16258-37010

3ZRFE..ZRE143..TAIW

TYPE B:REFER ILLUST.

 1
90210-06013

3ZRFE..ZRE143..TAIW

TYPE A:REFER ILLUST.

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
91551-80670

3ZRFE..ZRE143..TAIW

 1
11212 - COVER, CYLINDER HEAD, NO.2
11212-37010

3ZRFE..ZRE143..TAIW

 1
11212A - CUSHION, CYLINDER HEAD COVER
90480-16049

3ZRFE..ZRE143..TAIW

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-37020

3ZRFE..ZRE143..TAIW

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-38010

3ZRFE..ZRE143..TAIW

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

3ZRFE..ZRE143..TAIW

 1
12281A - HANGER, ENGINE, NO.1
12281-37021

3ZRFE..ZRE143..TAIW

 1
12282D - HANGER, ENGINE, NO.2
12282-37011

3ZRFE..ZRE143..TAIW

 1
15678A - FILTER, OIL CONTROL VALVE
15678-37010

3ZRFE..ZRE143..TAIW

 1
Common parts
90099-14137
90105-T0051
90105-T0052
90109-06385
90430-10024
90430-T0015
91551-80616
91551-80625
91552-81050
91671-80616
96721-24015

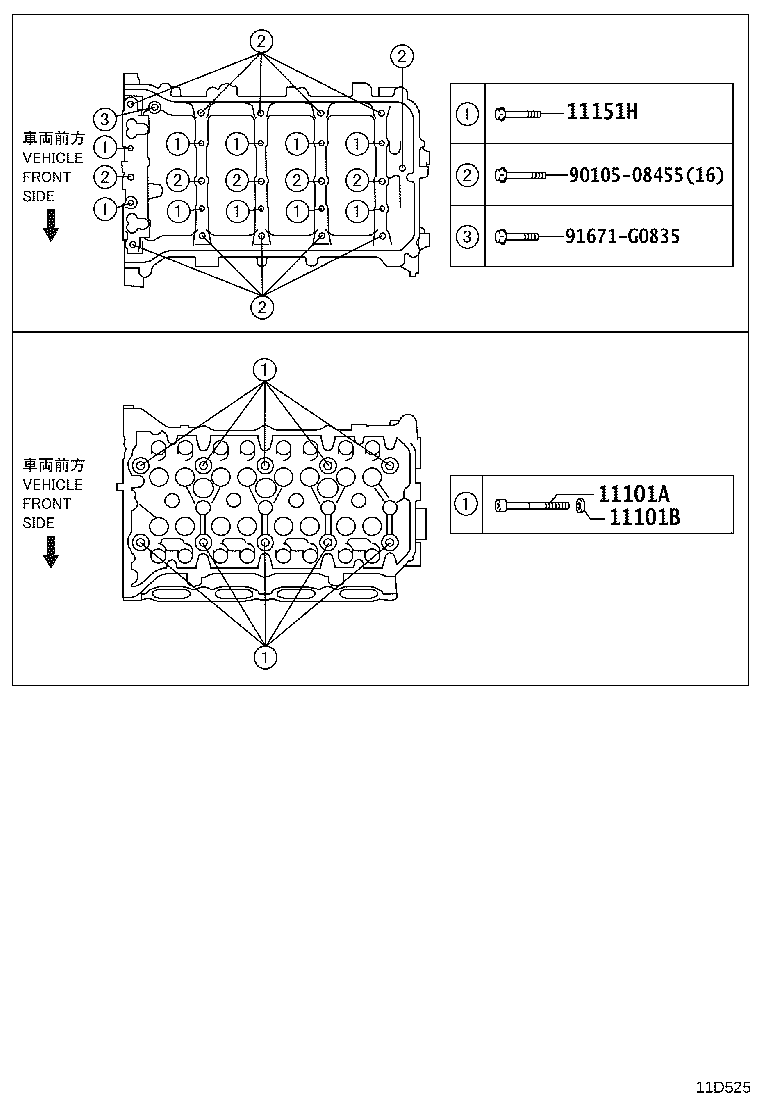

ILLUST NO. 2 OF 2(0811- )1ZRFE,2ZRFE,3ZRFE

Click highlighted areas on diagram

diagram 11101A 11101B 11151H 9010508455 91671G0835
Part # Description Qty Price
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02166

3ZRFE..ZRE143..TAIW

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 10
11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
90119-07009

3ZRFE..ZRE143..TAIW

 10
Common parts
90105-08455
91671-G0835
