ZRE142R-GEXEKT (2010)

Toyota Corolla/Altis

Production Aug 2010 - Nov 2013
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

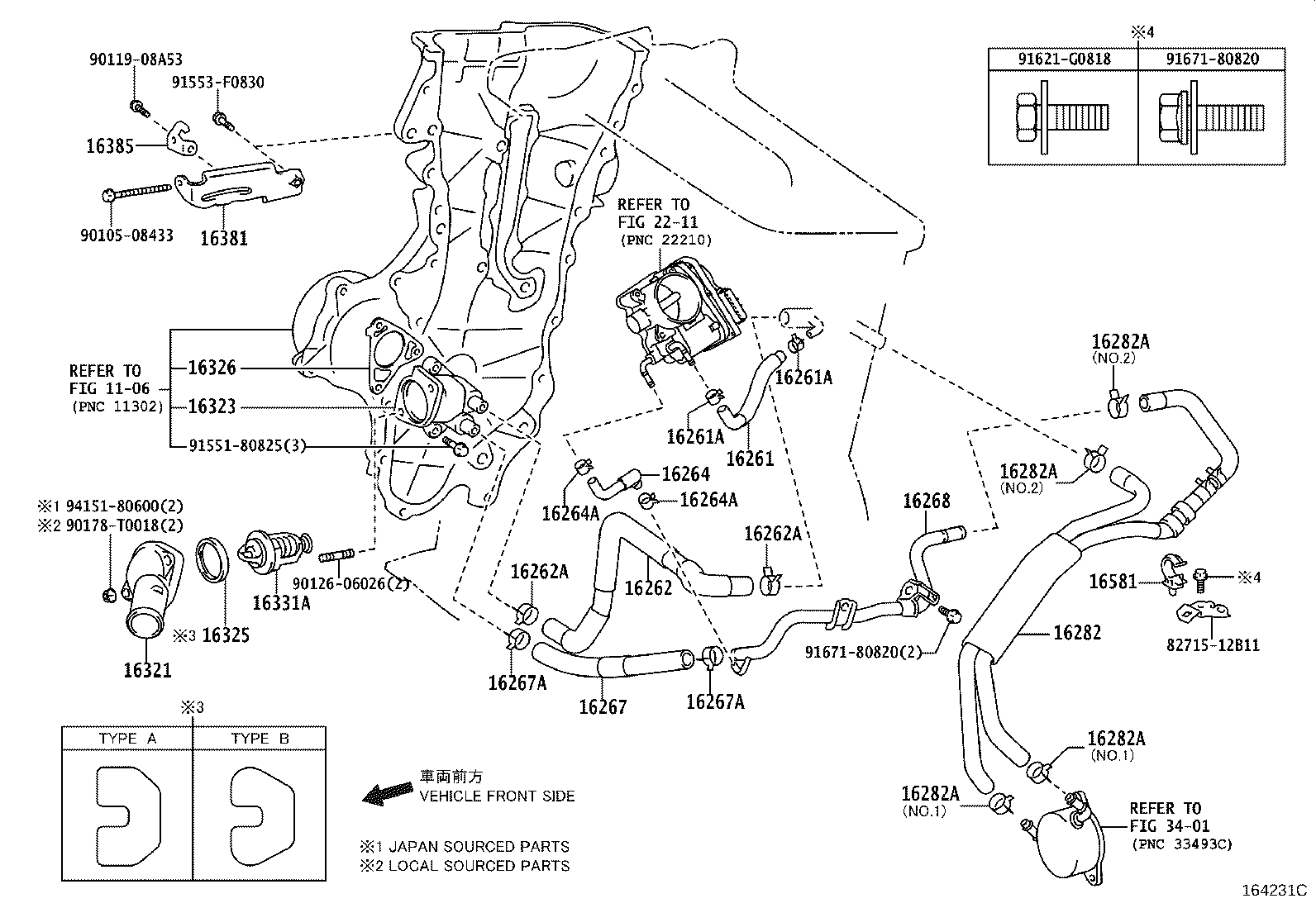

ILLUST NO. 2 OF 2(1008- )2ZRFE..CVFC..IDN,MA,TH

Click highlighted areas on diagram

diagram 1106 16261 16261A 16261A 16262 16262A 16262A 16264 16264A 16264A 16267 16267A 16267A 16268 16282 16282A 16282A 16282A 16282A 16321 16323 16325 16326 16331A 16381 16385 16581 2211 3401 8271512B11 9010508433 9011908A53 9012606026 90178T0018 9155180825 91553F0830 91621G0818 9167180820 9167180820 9415180600
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-0T121

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);2ZRFE,3ZRFE..ZRE142,143..(18E,18J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH,VN)..HTWC

(L)

 1
16261-37052

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);2ZRFE,3ZRFE..ZRE142,143..(18E,18J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH,VN)..HTWC

(J)

 1
16262A - CLIP(FOR WATER INLET HOSE)
90466-T0020

1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN

(L)

 2
96136-42501

1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN

(J)

 2
16262A - CLIP(FOR WATER INLET HOSE)
90466-T0020

1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN

(L)

 2
96136-42501

1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN

(J)

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0T081

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);2ZRFE,3ZRFE..ZRE142,143..(18E,18J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH,VN)..HTWC

(L)

 1
16264-37042

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);2ZRFE,3ZRFE..ZRE142,143..(18E,18J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH,VN)..HTWC

(J)

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0020

1ZRFE,2ZRFE..ZRE141,142..GCC,IDN,MA,PHL,TAIW,TH,VN

(L)

 2
96136-42501

1ZRFE,2ZRFE..ZRE141,142..GCC,IDN,MA,PHL,TAIW,TH,VN

(J)

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0020

1ZRFE,2ZRFE..ZRE141,142..GCC,IDN,MA,PHL,TAIW,TH,VN

(L)

 2
96136-42501

1ZRFE,2ZRFE..ZRE141,142..GCC,IDN,MA,PHL,TAIW,TH,VN

(J)

 2
16282 - HOSE, WATER BY-PASS, NO.5
16260-0T020

2ZRFE..ZRE142..CVFC..(IDN,MA,TH)

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42501

2ZRFE..ZRE142..CVFC..(IDN,MA,TH)

NO.2

 4
96134-41900

2ZRFE..ZRE142..CVFC..(IDN,MA,TH)

NO.1

 2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42501

2ZRFE..ZRE142..CVFC..(IDN,MA,TH)

NO.2

 4
96134-41900

2ZRFE..ZRE142..CVFC..(IDN,MA,TH)

NO.1

 2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42501

2ZRFE..ZRE142..CVFC..(IDN,MA,TH)

NO.2

 4
96134-41900

2ZRFE..ZRE142..CVFC..(IDN,MA,TH)

NO.1

 2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42501

2ZRFE..ZRE142..CVFC..(IDN,MA,TH)

NO.2

 4
96134-41900

2ZRFE..ZRE142..CVFC..(IDN,MA,TH)

NO.1

 2
16323 - HOUSING, WATER INLET
16323-37021

2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC

(J),*264

 1
16323-0T060

2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC

(L),*264

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-21030

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;2ZRFE..ZRE142..18G..(IDN,MA)

 1
Common parts
82715-12B11
90105-08433
90119-08A53
90126-06026
90178-T0018
91551-80825
91553-F0830
91621-G0818
91671-80820
94151-80600
Linked diagrams
1106
2211
3401
