ZRE142L-GEXDKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )ZRE142..CVFC..HTWC

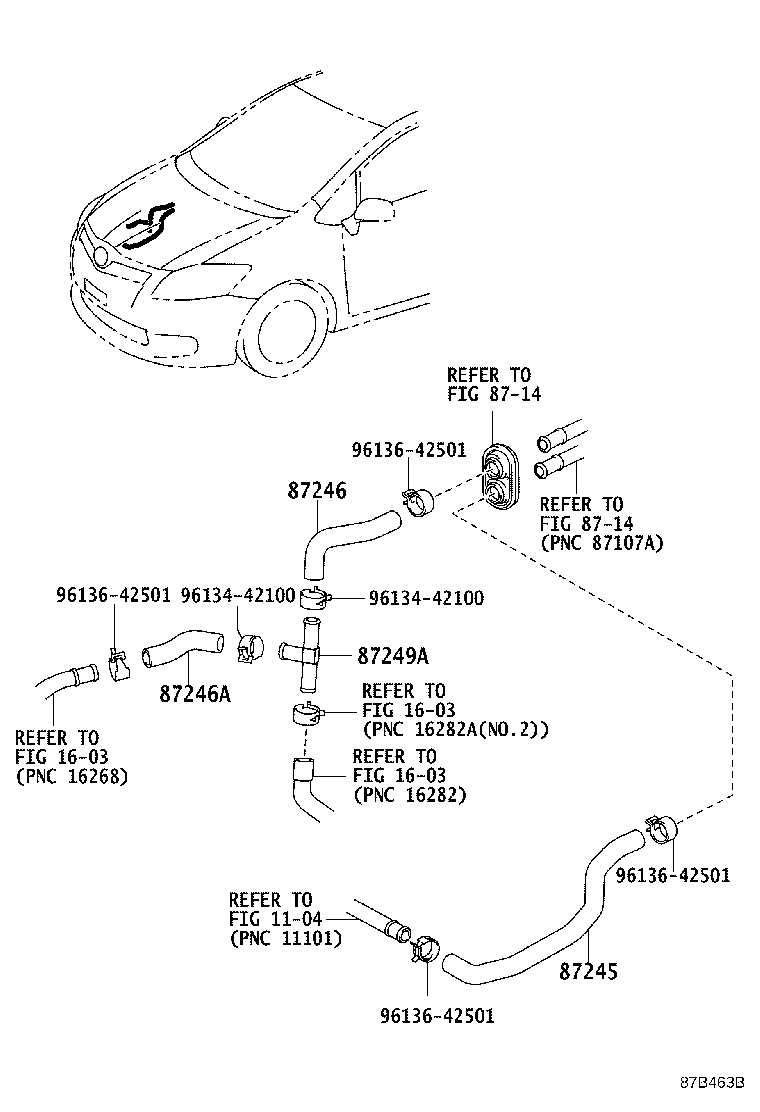

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 8714 8714 87245 87246 87246A 87249A 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-02J50

ZRE141,142..GCC,TAIW

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-02L71

ZRE142..TAIW

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-02L60

ZRE142..TAIW

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12300

ZRE142..CVFC..(IND,TAIW,VN)

 1
Common parts
96134-42100
96136-42501
Linked diagrams
1104
1603
8714
