ZRE142L-GEXDKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1105- )NDE140 ; (1105- )ZRE142..18V,G

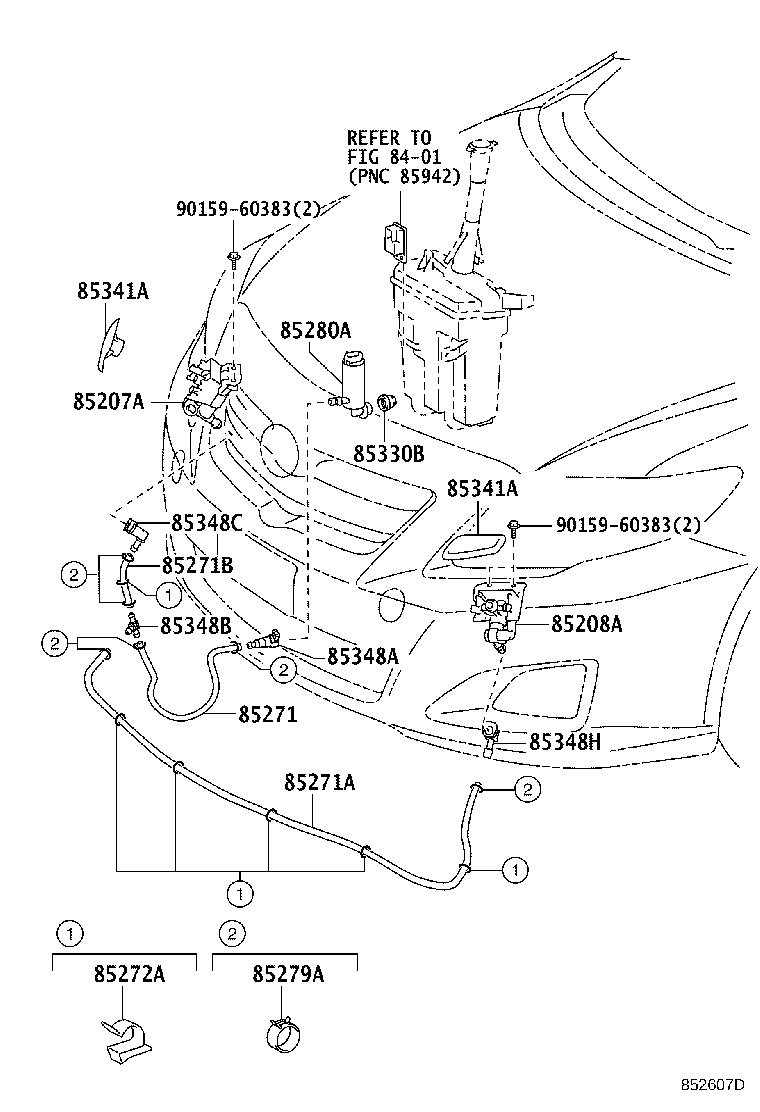

Click highlighted areas on diagram

diagram 8401 85207A 85208A 85271 85271A 85271B 85272A 85279A 85280A 85330B 85341A 85341A 85348A 85348B 85348C 85348H 9015960383 9015960383
Part # Description Qty Price
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85354-12901

NDE140,ZRE142..18V,G

LH

 1
85353-12901

NDE140,ZRE142..18V,G

RH

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85354-12901

NDE140,ZRE142..18V,G

LH

 1
85353-12901

NDE140,ZRE142..18V,G

RH

 1
Common parts
90159-60383
Linked diagrams
8401
