ZRE142L-GEXDKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )ZRE142..CVFC

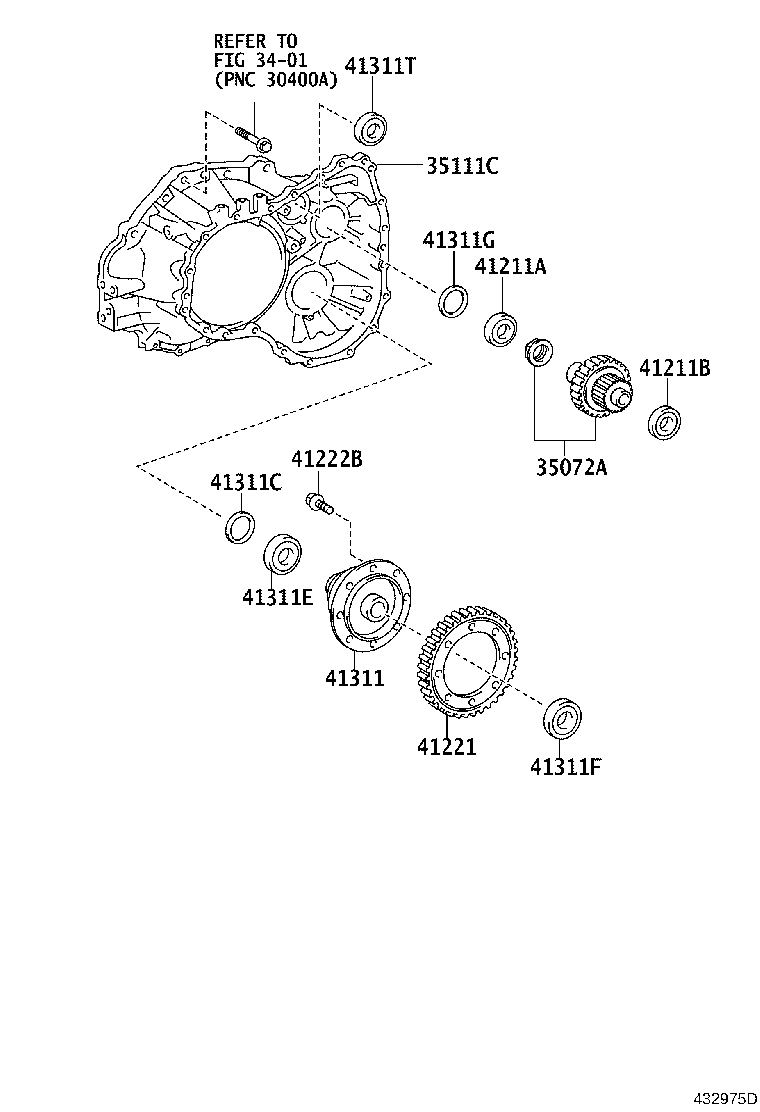

Click highlighted areas on diagram

K311

diagram 3401 35072A 35111C 41211A 41211B 41221 41222B 41311 41311C 41311E 41311F 41311G 41311T
Part # Description Qty Price
35072A - GEAR ASSY, COUNTER DRIVEN
35072-12030

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

 1
35111C - HOUSING, TRANSAXLE
35105-12090

ZRE142..CVFC

 1
35105-12091

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90366-25019

ZRE142..CVFC

 1
90366-25021

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90366-29010

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

 1
90366-29007

ZRE142..CVFC

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12431

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12379

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

 8
Linked diagrams
3401
