ZRE142L-GEXDKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )ZRE142..CVFC

Click highlighted areas on diagram

K311

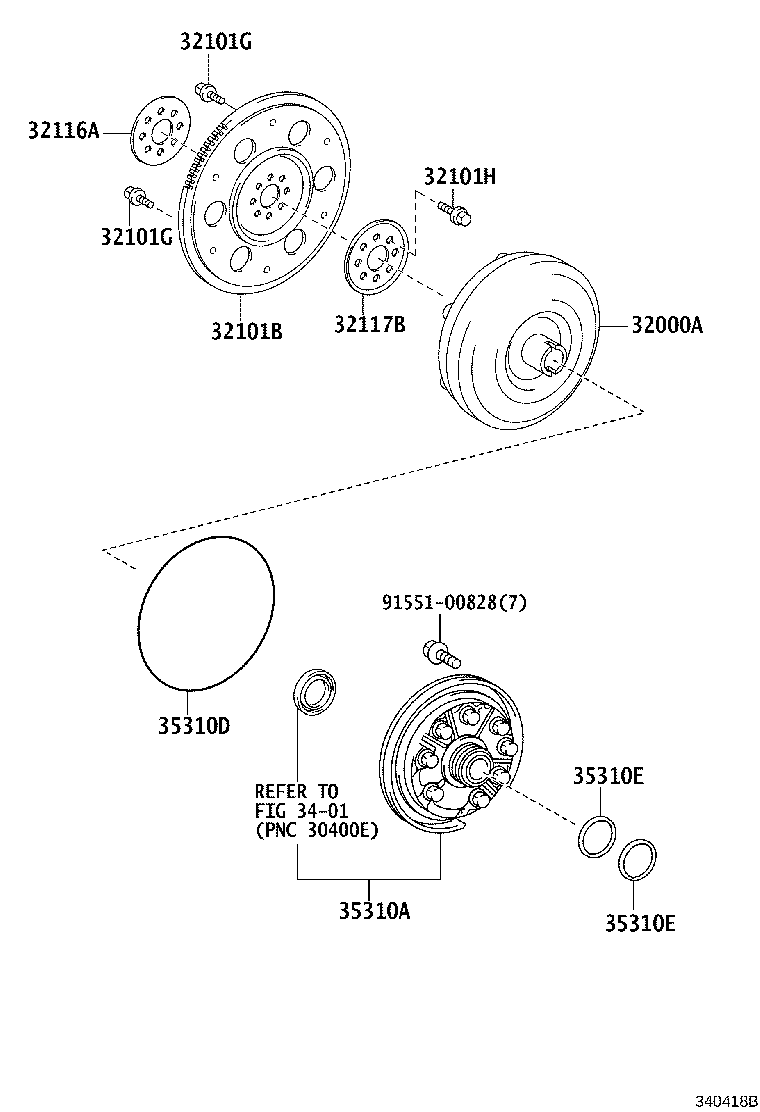

diagram 32000A 32101B 32101G 32101G 32101H 32116A 32117B 3401 35310A 35310D 35310E 35310E 9155100828
Part # Description Qty Price
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

*8-1.25PX12-8.4,BLACK

 1
90119-08498

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

*8-1.25PX12-8,YELLOW

 5
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

*8-1.25PX12-8.4,BLACK

 1
90119-08498

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

*8-1.25PX12-8,YELLOW

 5
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

ZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

 8
32116A - SPACER, DRIVE PLATE, FRONT
32116-12030

ZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

 1
32117B - SPACER, DRIVE PLATE, REAR
32117-12040

ZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)

 1
Common parts
91551-00828
Linked diagrams
3401
