ZRE142L-GEXDKR (2010)
Toyota Corolla/Altis

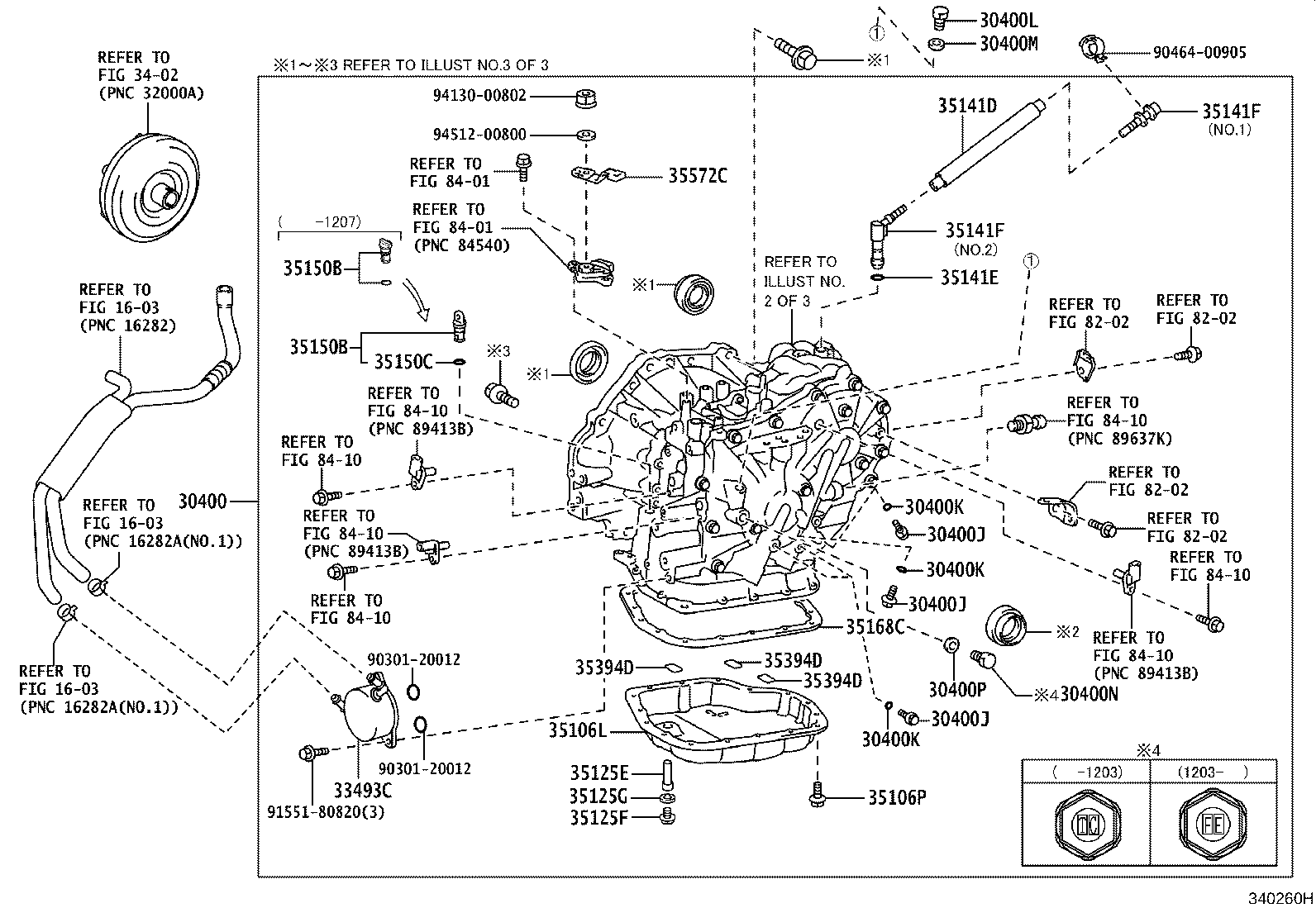

ILLUST NO. 1 OF 3(1007- )ZRE142..CVFC
K311
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-12240 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) K311 |
1 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
8 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
8 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-06196 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-06196 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-06196 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
8 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18061 |
ZRE142..CVFC |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-20040 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
16 | ||
| 35141D - HOSE(FOR BREATHER PLUG) | ||||
| 35121-12090 |
ZRE142..CVFC |
1 | ||
| 35121-12090 |
ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
ZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03191 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 90930-03149 |
ZRE142..CVFC NO.1 |
1 | ||
| 90930-03216 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03191 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 90930-03149 |
ZRE142..CVFC NO.1 |
1 | ||
| 90930-03216 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-44010 |
ZRE142,143..CVFC |
1 | ||
| 35150-48010 |
ZRE143;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-44010 |
ZRE142,143..CVFC |
1 | ||
| 35150-48010 |
ZRE143;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
ZRE143;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
3 | ||
| Common parts | ||||
| 90301-20012 | ||||
| 90464-00905 | ||||
| 91551-80820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||
ILLUST NO. 3 OF 3(1007- )ZRE142..CVFC
K311
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-T0225 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) (L) |
7 | ||
| 91612-61045 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) (J) |
7 | ||
| 91612-61045 |
ZRE142..CVFC |
7 | ||
| 30400B - SEAL, TYPE T OIL, NO.1(FOR CVT) | ||||
| 90311-35055 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 30400C - SEAL, TYPE T OIL, NO.2(FOR CVT) | ||||
| 90311-35068 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 90311-35054 |
ZRE142..CVFC |
1 | ||
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-45025 |
ZRE142,143..CVFC |
1 | ||
| 90311-45027 |
ZRE143;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35105C - BOLT(FOR TRANSAXLE HOUSING & CASE SET) | ||||
| 90105-08071 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
4 | ||
| 91551-10830 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
18 | ||
| 35105C - BOLT(FOR TRANSAXLE HOUSING & CASE SET) | ||||
| 90105-08071 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
4 | ||
| 91551-10830 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
18 | ||
| Common parts | ||||
| 91551-80645 | ||||
| 91551-80650 | ||||
| Linked diagrams | ||||
| 3402 | ||||

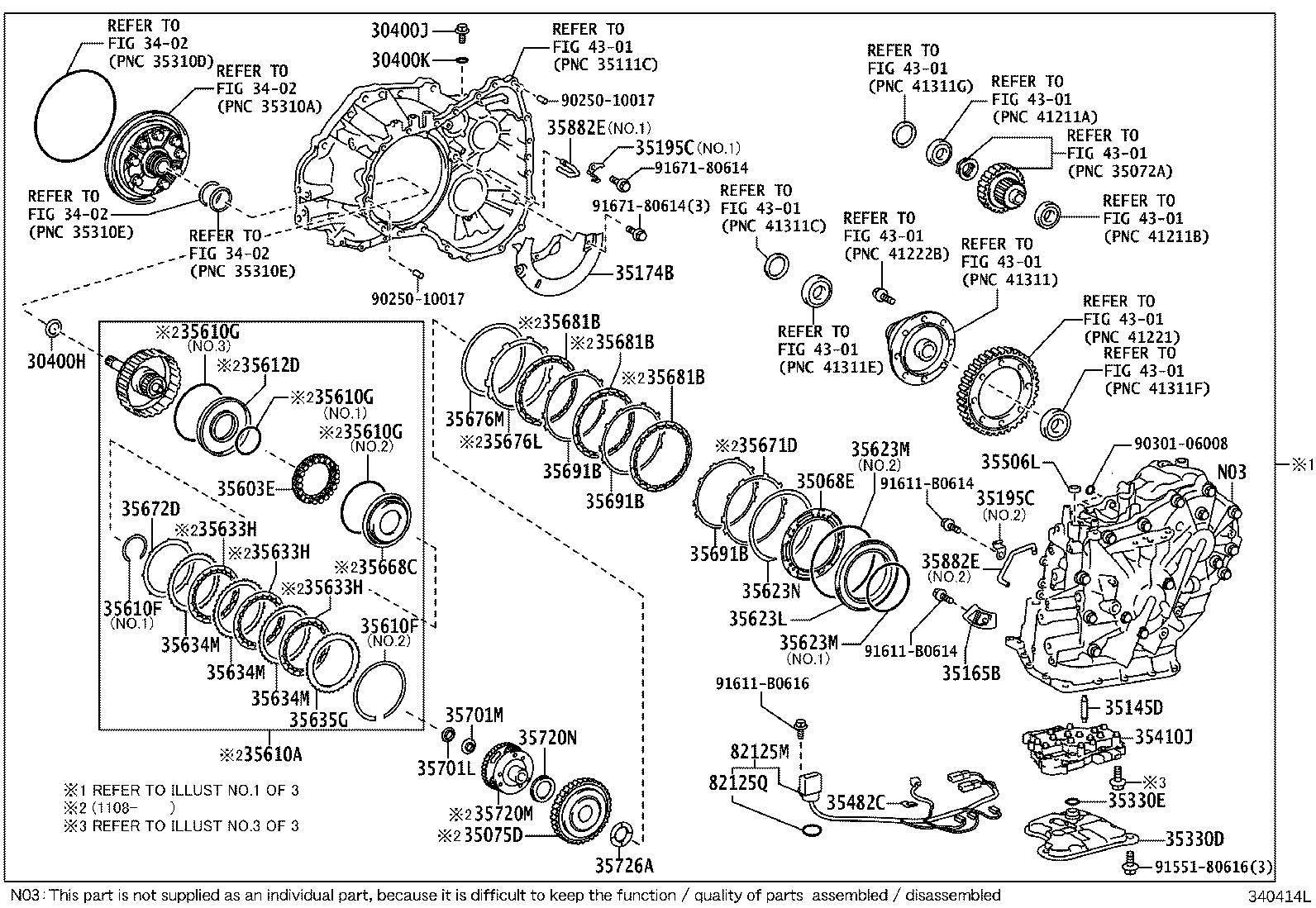

ILLUST NO. 2 OF 3(1007- )ZRE142..CVFC
K311
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400H - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-20005 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-06196 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
8 | ||
| 35068E - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-12020 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35075D - GEAR SUB-ASSY, FRONT PLANETARY RING | ||||
| 35075-12031 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35165B - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-12030 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35174B - PLATE, OIL RESERVOIR LOCK | ||||
| 35174-12010 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35195C - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12050 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 35195-12040 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 35195C - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12050 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 35195-12040 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-0W080 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-22014 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35482C - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-12010 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35506L - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
ZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-44041 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 90520-99087 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-44041 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 90520-99087 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-50001 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 90301-99155 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.3 |
1 | ||
| 90301-95003 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-50001 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 90301-99155 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.3 |
1 | ||
| 90301-95003 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-50001 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 90301-99155 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.3 |
1 | ||
| 90301-95003 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-98002 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 90301-99087 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-98002 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 90301-99087 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 35623N - RING, SNAP (FOR REVERSE BRAKE PISTON) | ||||
| 90520-99090 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12091 |
ZRE142..CVFC |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12091 |
ZRE142..CVFC |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12091 |
ZRE142..CVFC |
3 | ||
| 35635G - FLANGE, FORWARD CLUTCH | ||||
| 35635-12020 |
ZRE142..CVFC T=2.8,MARK 1 |
1 | ||
| 35676M - RING, SNAP (FOR BRAKE FLANGE) | ||||
| 90520-99086 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35701L - RACE, THRUST BEARING (FOR INPUT SHAFT) | ||||
| 35789-12090 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35701M - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-18008 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35720N - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY GEAR) | ||||
| 90374-34014 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35726A - WASHER, PLANETARY RING GEAR THRUST | ||||
| 35726-12010 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| 35882E - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12030 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 35882-12040 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 35882E - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12030 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.1 |
1 | ||
| 35882-12040 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) NO.2 |
1 | ||
| 82125Q - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) |
1 | ||
| Common parts | ||||
| 90250-10017 | ||||
| 90301-06008 | ||||
| 91551-80616 | ||||
| 91611-B0614 | ||||
| 91611-B0616 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 4301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
