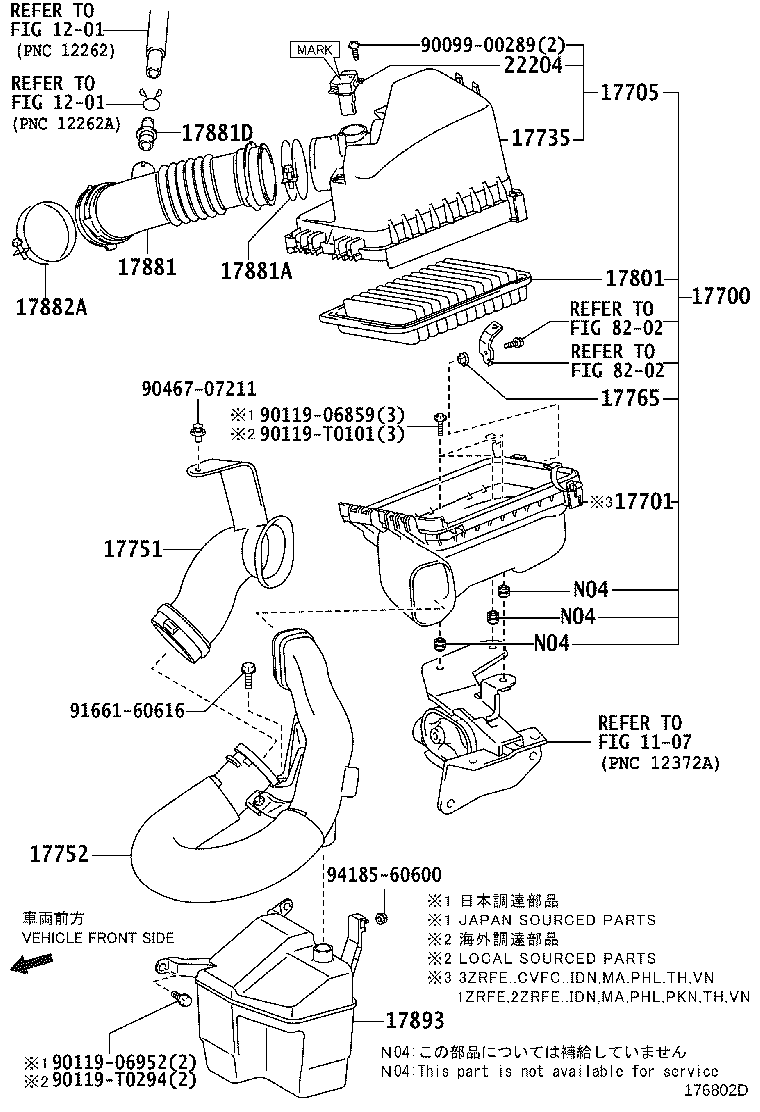

ZRE142L-GEXDKR (2010)
Toyota Corolla/Altis
(1007- )2ZRFE..HTWCF ; (1007- )1ZRFE,2ZRFE,3ZRFE..GCC,TAIW ; (1008- )1ZRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0T101 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 17700-0T101 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 17700-0T100 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 17700-0T100 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0T101 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 17705-0T101 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 17705-0T100 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 17705-0T100 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-37060 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 17751-37060 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-37070 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 17752-37070 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17706-21010 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 17706-21010 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0M020 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 17801-0M020 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0T190 |
2ZRFE..ZRE142..TAIW |
1 | ||
| 17881-0T190 |
2ZRFE..ZRE142..TAIW |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 96111-10750 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) | ||||
| 12229-21010 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW (J) |
1 | ||
| 12229-21010 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW (J) |
1 | ||
| 12229-0T040 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW (L) |
1 | ||
| 12229-0T040 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW (L) |
1 | ||
| 12229-21010 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 12229-21010 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) |
1 | ||
| 96111-10780 |
2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-22030 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 17893-22030 |
2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0T030 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 22204-0T030 |
1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW |
1 | ||
| 22204-0V020 |
2ZRFE..ZRE142..HTWCF;1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IND,TAIW MARK 22204-0V020 |
1 | ||
| 22204-0V020 |
2ZRFE..ZRE142..HTWCF;1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IND,TAIW MARK 22204-0V020 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-06952 | ||||
| 90119-T0101 | ||||
| 90119-T0294 | ||||
| 90467-07211 | ||||
| 91661-60616 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1201 | ||||
| 8202 | ||||
