ZRE142L-GEXDKR (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )2ZRFE..CVFC

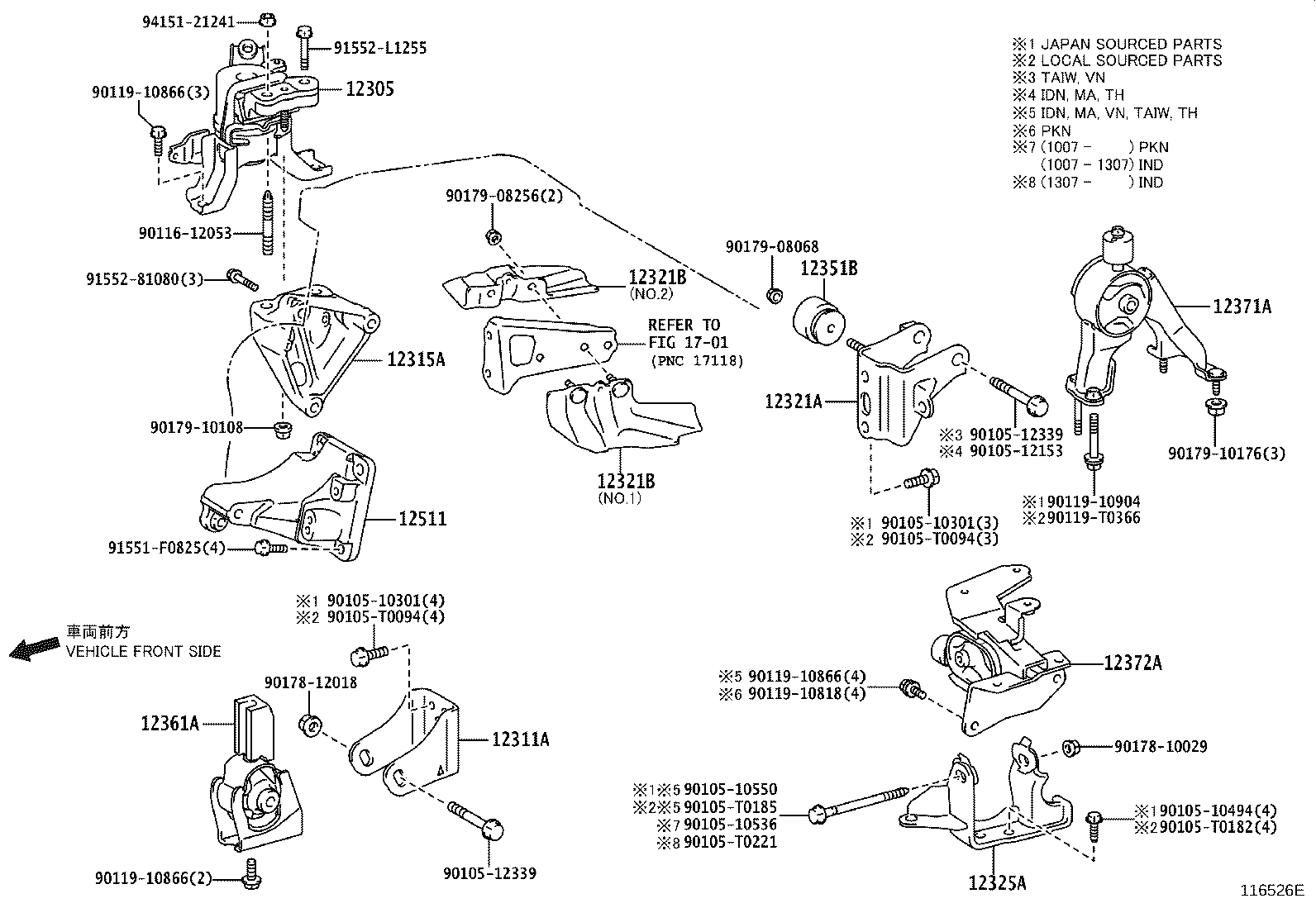

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321B 12321B 12325A 12351B 12361A 12371A 12372A 12511 1701 9010510301 9010510301 9010510494 9010510536 9010510550 9010512153 9010512339 9010512339 90105T0094 90105T0094 90105T0182 90105T0185 90105T0221 9011612053 9011910818 9011910866 9011910866 9011910866 9011910904 90119T0366 9017810029 9017812018 9017908068 9017908256 9017910108 9017910176 91551F0825 9155281080 91552L1255 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0T130

1ZRFE,2ZRFE..ZRE141,142..GCC,TAIW

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0T230

2ZRFE..ZRE142..TAIW

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37030

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0T270

2ZRFE..ZRE142..TAIW

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..IDN,IND,MA,TAIW,VN;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC

NO.1

 1
43498-12051

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..IDN,IND,MA,TAIW,VN;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC

NO.2

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..IDN,IND,MA,TAIW,VN;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC

NO.1

 1
43498-12051

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..IDN,IND,MA,TAIW,VN;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC

NO.2

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0T260

2ZRFE..ZRE142..TAIW

 1
12351B - DAMPER, ENGINE MOUNTING
12351-0D090

2ZRFE..ZRE142..TAIW

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0D231

2ZRFE..ZRE142..TAIW

 1
12361-0D232

2ZRFE..ZRE142..TAIW

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0T170

2ZRFE..ZRE142..TAIW

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T220

2ZRFE..ZRE142..TAIW

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-37010

2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)

(J)

 1
12511-0T050

2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH,VN)..HTWC

(L)

 1
Common parts
90105-10301
90105-10494
90105-10536
90105-10550
90105-12153
90105-12339
90105-T0094
90105-T0182
90105-T0185
90105-T0221
90116-12053
90119-10818
90119-10866
90119-10904
90119-T0366
90178-10029
90178-12018
90179-08068
90179-08256
90179-10108
90179-10176
91551-F0825
91552-81080
91552-L1255
94151-21241
Linked diagrams
1701
