ZRE142L-GEPNKV (2010)

Toyota Corolla/Altis

Production Jul 2010 - Oct 2013
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )ZRE142..GCC

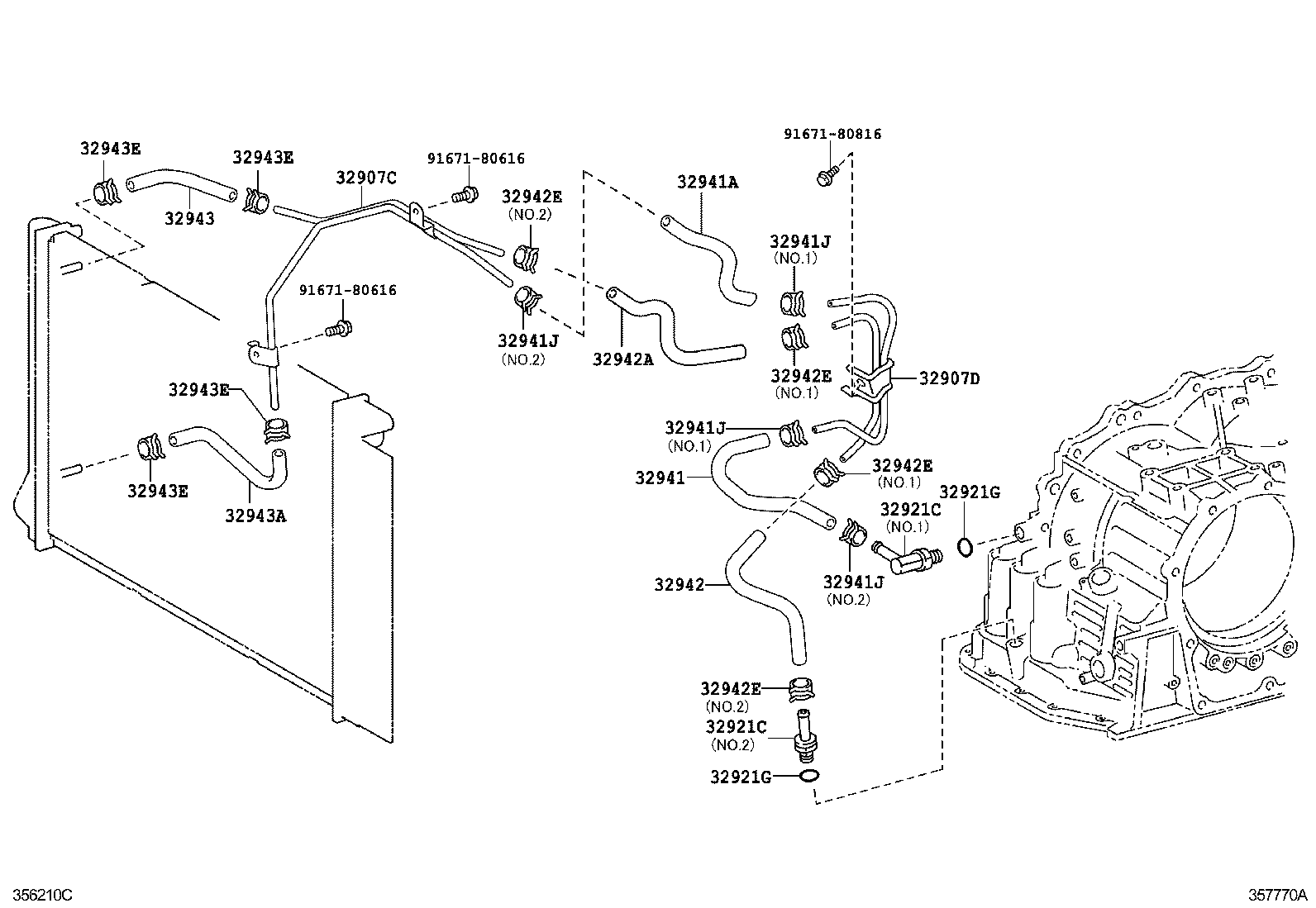

Click highlighted areas on diagram

U341E

diagram 32907C 32907D 32921C 32921C 32921G 32921G 32941 32941A 32941J 32941J 32941J 32941J 32942 32942A 32942E 32942E 32942E 32942E 32943 32943A 32943E 32943E 32943E 32943E 9167180616 9167180616 9167180816
Part # Description Qty Price
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-02190

ZRE141,142..GCC

 1
32907D - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2
32907-02230

ZRE142..GCC

 1
32907-02231

ZRE142..GCC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13007

ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)

NO.2

 1
90404-13005

ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)

NO.1

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13007

ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)

NO.2

 1
90404-13005

ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)

NO.1

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10018

ZRE141,142,ZZE141..4FC

 2
90301-10189

ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10018

ZRE141,142,ZZE141..4FC

 2
90301-10189

ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32943-02440

ZRE142..GCC

 1
32941A - HOSE, OIL COOLER INLET, NO.2
90445-T0021

ZRE141,142..GCC

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
96135-51300

ZRE141,142..GCC

NO.1

 2
96137-41501

ZRE141,142..GCC

NO.2

 2
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
96135-51300

ZRE141,142..GCC

NO.1

 2
96137-41501

ZRE141,142..GCC

NO.2

 2
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
96135-51300

ZRE141,142..GCC

NO.1

 2
96137-41501

ZRE141,142..GCC

NO.2

 2
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
96135-51300

ZRE141,142..GCC

NO.1

 2
96137-41501

ZRE141,142..GCC

NO.2

 2
32942 - HOSE, OIL COOLER OUTLET, NO.1
32943-02430

ZRE142..GCC

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
90445-T0022

ZRE141,142..GCC

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300

ZRE141,142..GCC

NO.1

 2
96137-41501

ZRE141,142..GCC

NO.2

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300

ZRE141,142..GCC

NO.1

 2
96137-41501

ZRE141,142..GCC

NO.2

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300

ZRE141,142..GCC

NO.1

 2
96137-41501

ZRE141,142..GCC

NO.2

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300

ZRE141,142..GCC

NO.1

 2
96137-41501

ZRE141,142..GCC

NO.2

 2
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-02320

ZRE141,142..GCC

 1
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
32943-02330

ZRE141,142..GCC

 1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

ZRE141,142..GCC

 4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

ZRE141,142..GCC

 4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

ZRE141,142..GCC

 4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

ZRE141,142..GCC

 4
Common parts
91671-80616
91671-80816
