ZRE141R-GEPEKT (2010)

Toyota Corolla/Altis

Production Aug 2010 - Nov 2013
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1008- )1ZRFE,2ZRFE..4FC,6F..IDN,MA,PHL,TH

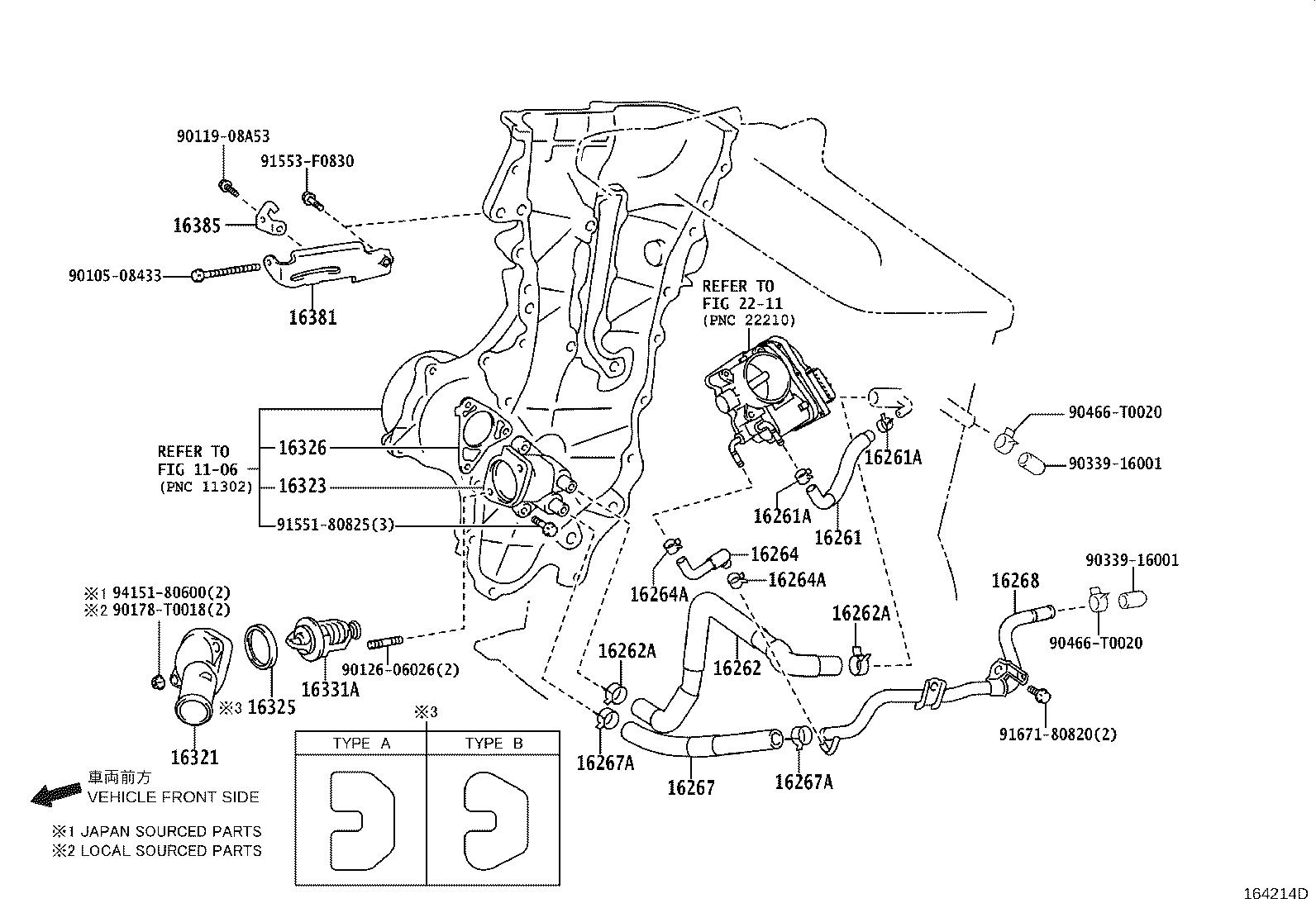

Click highlighted areas on diagram

diagram 1106 16261 16261A 16261A 16262 16262A 16262A 16264 16264A 16264A 16267 16267A 16267A 16268 16321 16323 16325 16326 16331A 16381 16385 2211 9010508433 9011908A53 9012606026 90178T0018 9033916001 9033916001 90466T0020 90466T0020 9155180825 91553F0830 9167180820 9415180600
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-37022

1ZRFE..ZRE141..6F..TH;1ZRFE,2ZRFE..ZRE141,142..16E,16G,16V,GLI,XLI

(J),*264

 1
16261-0T111

1ZRFE..ZRE141..6F..TH;1ZRFE,2ZRFE..ZRE141,142..16E,16G,16V,GLI,XLI

(L),*264

 1
16262A - CLIP(FOR WATER INLET HOSE)
90466-T0020

1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN

(L)

 2
96136-42501

1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN

(J)

 2
16262A - CLIP(FOR WATER INLET HOSE)
90466-T0020

1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN

(L)

 2
96136-42501

1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN

(J)

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0T071

1ZRFE..ZRE141..6F..TH;1ZRFE,2ZRFE..ZRE141,142..16E,16G,16V,GLI,XLI

(L),*264

 1
16264-37022

1ZRFE..ZRE141..6F..TH;1ZRFE,2ZRFE..ZRE141,142..16E,16G,16V,GLI,XLI

(J),*264

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0020

1ZRFE,2ZRFE..ZRE141,142..GCC,IDN,MA,PHL,TAIW,TH,VN

(L)

 2
96136-42501

1ZRFE,2ZRFE..ZRE141,142..GCC,IDN,MA,PHL,TAIW,TH,VN

(J)

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0020

1ZRFE,2ZRFE..ZRE141,142..GCC,IDN,MA,PHL,TAIW,TH,VN

(L)

 2
96136-42501

1ZRFE,2ZRFE..ZRE141,142..GCC,IDN,MA,PHL,TAIW,TH,VN

(J)

 2
16323 - HOUSING, WATER INLET
16323-37021

2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC

(J),*264

 1
16323-0T060

2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC

(L),*264

 1
Common parts
90105-08433
90119-08A53
90126-06026
90178-T0018
90339-16001
90466-T0020
91551-80825
91553-F0830
91671-80820
94151-80600
Linked diagrams
1106
2211
