ZRE141R-GEFNKP (2011)

Toyota Corolla/Altis

Production Apr 2011 - Jun 2014
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

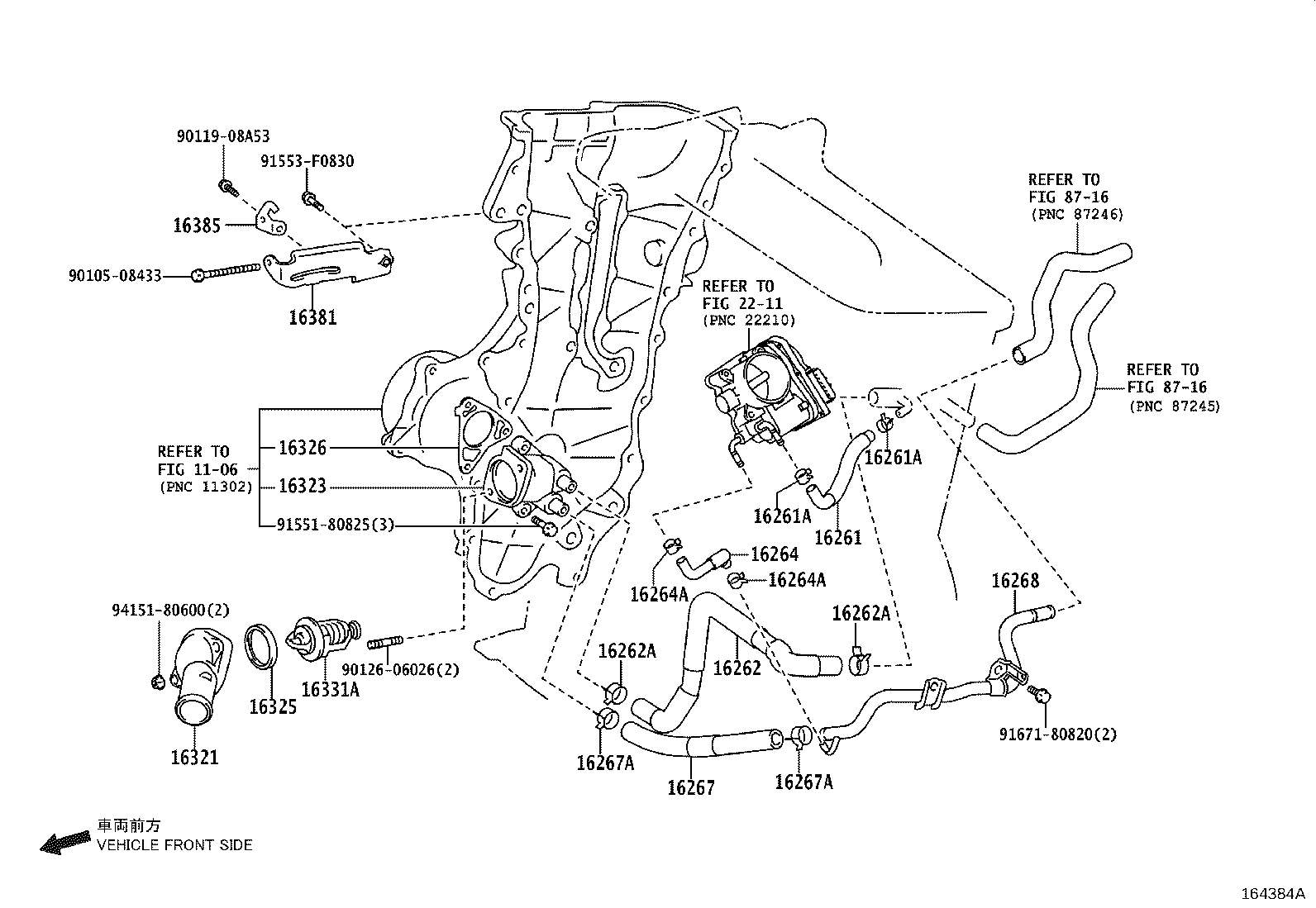

ILLUST NO. 2 OF 2(1104- )1ZRFE..PKN

Click highlighted areas on diagram

diagram 1106 16261 16261A 16261A 16262 16262A 16262A 16264 16264A 16264A 16267 16267A 16267A 16268 16321 16323 16325 16326 16331A 16381 16385 2211 8716 8716 9010508433 9011908A53 9012606026 9155180825 91553F0830 9167180820 9415180600
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-37022

1ZRFE..ZRE141..PKN

 1
16262 - HOSE, WATER INLET
16262-37010

1ZRFE..ZRE141..PKN

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-37022

1ZRFE..ZRE141..PKN

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-37010

1ZRFE..ZRE141..PKN

 1
16323 - HOUSING, WATER INLET
16323-37020

1ZRFE..ZRE141..PKN

(J)

 1
16323-37021

1ZRFE..ZRE141..PKN

(J)

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-28010

1ZRFE..ZRE141..PKN

 1
Common parts
90105-08433
90119-08A53
90126-06026
91551-80825
91553-F0830
91671-80820
94151-80600
Linked diagrams
1106
2211
8716

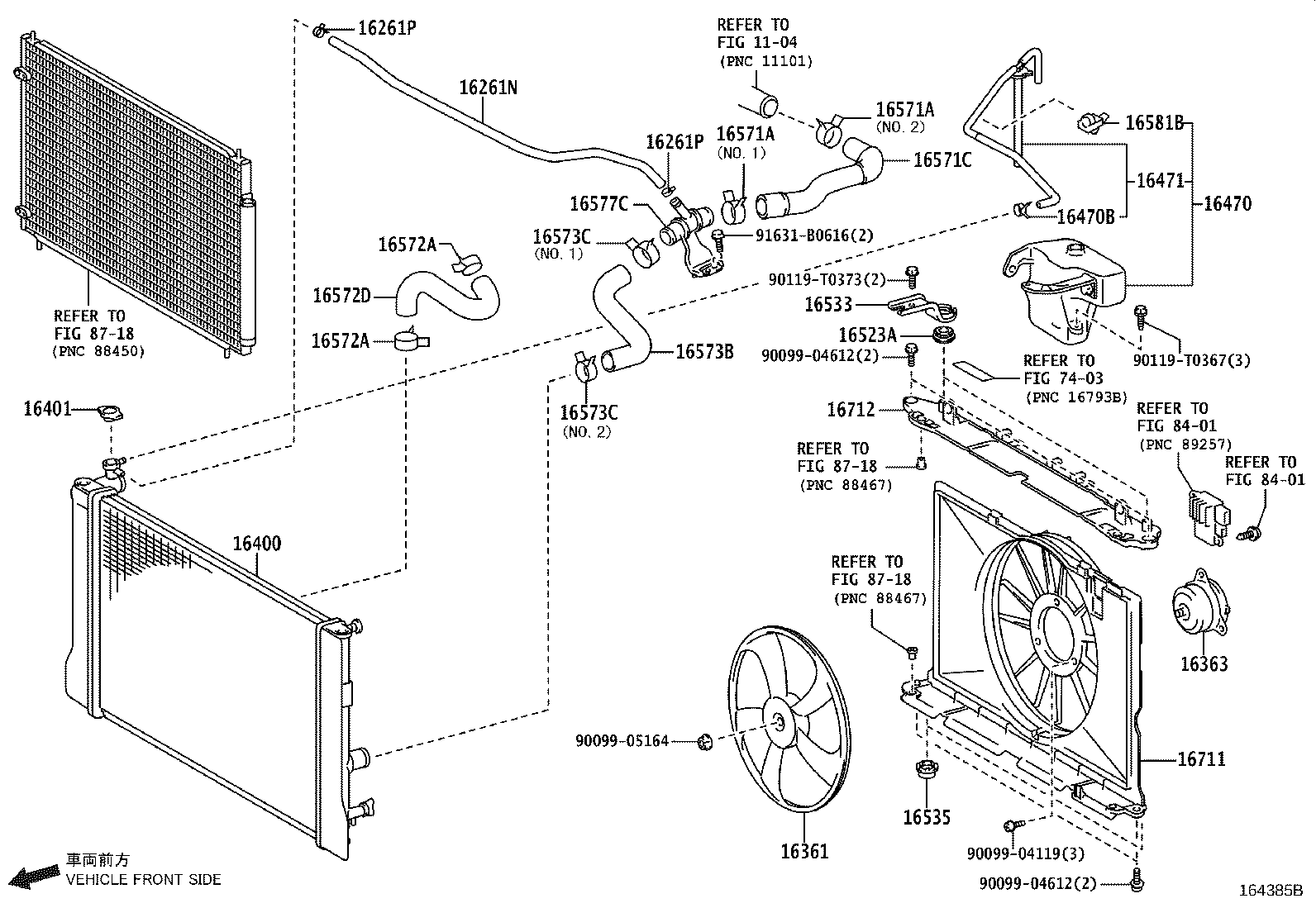

ILLUST NO. 1 OF 2(1104- )1ZRFE..PKN

Click highlighted areas on diagram

diagram 1104 16261N 16261P 16261P 16361 16363 16400 16401 16470 16470B 16471 16523A 16533 16535 16571A 16571A 16571C 16572A 16572A 16572D 16573B 16573C 16573C 16577C 16581B 16711 16712 7403 8401 8401 8718 8718 8718 9009904119 9009904612 9009904612 9009905164 90119T0367 90119T0373 91631B0616
Part # Description Qty Price
16363 - MOTOR, COOLING FAN
16363-22120

1ZRFE,2ZRFE..ZRE141,142..IND,PKN

 1
16400 - RADIATOR ASSY
16410-0D510

1ZRFE..ZRE141..6F..PKN

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-0T010

1ZRFE..ZRE141

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-0D100

1ZRFE..ZRE141..PKN

 1
16711 - SHROUD, FAN
16711-0M080

1ZRFE..ZRE141..PKN

 1
16712 - SHROUD, FAN, NO.2
16712-0M020

1ZRFE..ZRE141..PKN

 1
Common parts
90099-04119
90099-04612
90099-05164
90119-T0367
90119-T0373
91631-B0616
Linked diagrams
1104
7403
8401
8718
