ZRE141R-GEFDKT (2010)

Toyota Corolla/Altis

Production Aug 2010 - Nov 2013
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )IDN,MA,PHL,TH ; (1010- )VN ; (1104- )PKN ; (1105- )IND

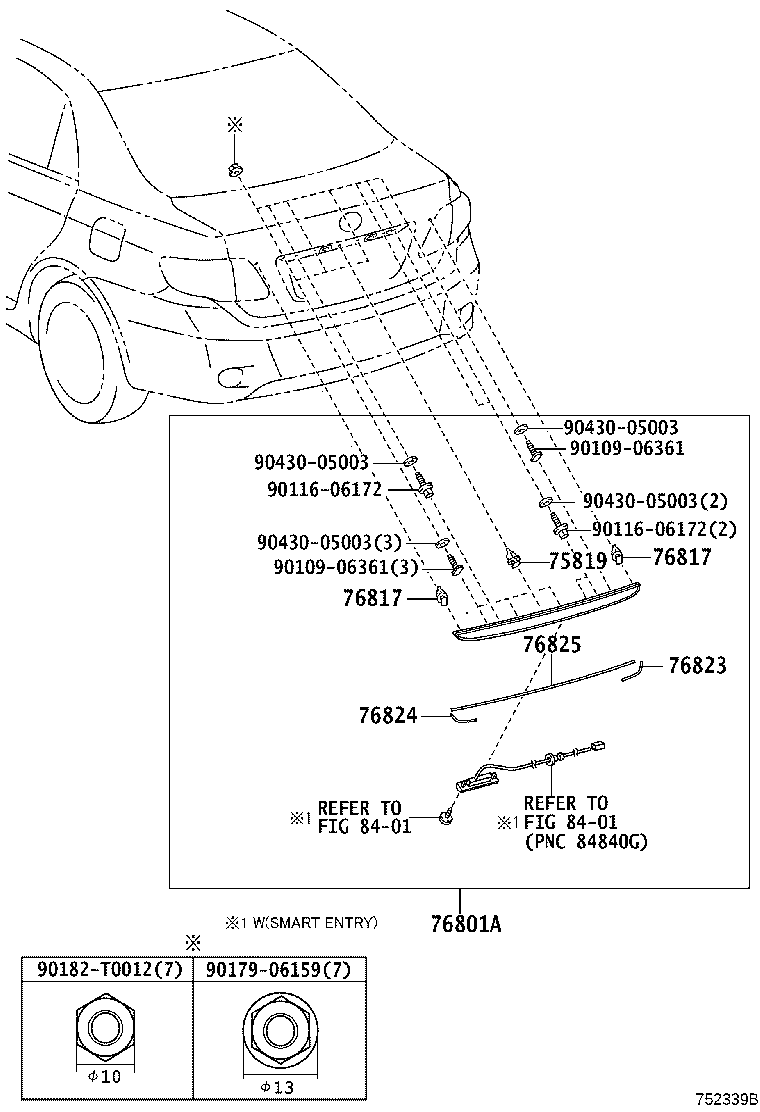

Click highlighted areas on diagram

diagram 75819 76801A 76817 76817 76823 76824 76825 8401 8401 9010906361 9010906361 9011606172 9011606172 9017906159 90182T0012 9043005003 9043005003 9043005003 9043005003
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02902

ZRE141..6F..TH;CE140,NZE140,ZRE141,142,ZZE141..(16E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)

PAINT REQ.

 1
76801-02750

ZRE143..MA;ZRE142..HTWCF;ZRE142..(18G,E)..(IND,MA,VN);NDE140,ZRE141,ZZE141..16G,E,G;ZRE142..(18E,18J)..(IDN,TH)..HTWC

PLATED

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-02100

ZRE142..HTWCF;ZRE141..6F..TH;CE140,NDE140,NZE140,ZRE142,143..IDN,IND,MA,PHL,PKN,VN;ZRE141,142,ZZE141..(16E,16G,16V,18E,D,LIMO,N)..(MA,PHL,PKN,TH)..HTWC

(L)

 2
76817-12100

ZRE142..HTWCF;ZRE141..6F..TH;CE140,NDE140,NZE140,ZRE142,143..IDN,IND,MA,PHL,PKN,VN;ZRE141,142,ZZE141..(16E,16G,16V,18E,D,LIMO,N)..(MA,PHL,PKN,TH)..HTWC

(J)

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-02100

ZRE142..HTWCF;ZRE141..6F..TH;CE140,NDE140,NZE140,ZRE142,143..IDN,IND,MA,PHL,PKN,VN;ZRE141,142,ZZE141..(16E,16G,16V,18E,D,LIMO,N)..(MA,PHL,PKN,TH)..HTWC

(L)

 2
76817-12100

ZRE142..HTWCF;ZRE141..6F..TH;CE140,NDE140,NZE140,ZRE142,143..IDN,IND,MA,PHL,PKN,VN;ZRE141,142,ZZE141..(16E,16G,16V,18E,D,LIMO,N)..(MA,PHL,PKN,TH)..HTWC

(J)

 2
Common parts
90109-06361
90116-06172
90179-06159
90182-T0012
90430-05003
Linked diagrams
8401
