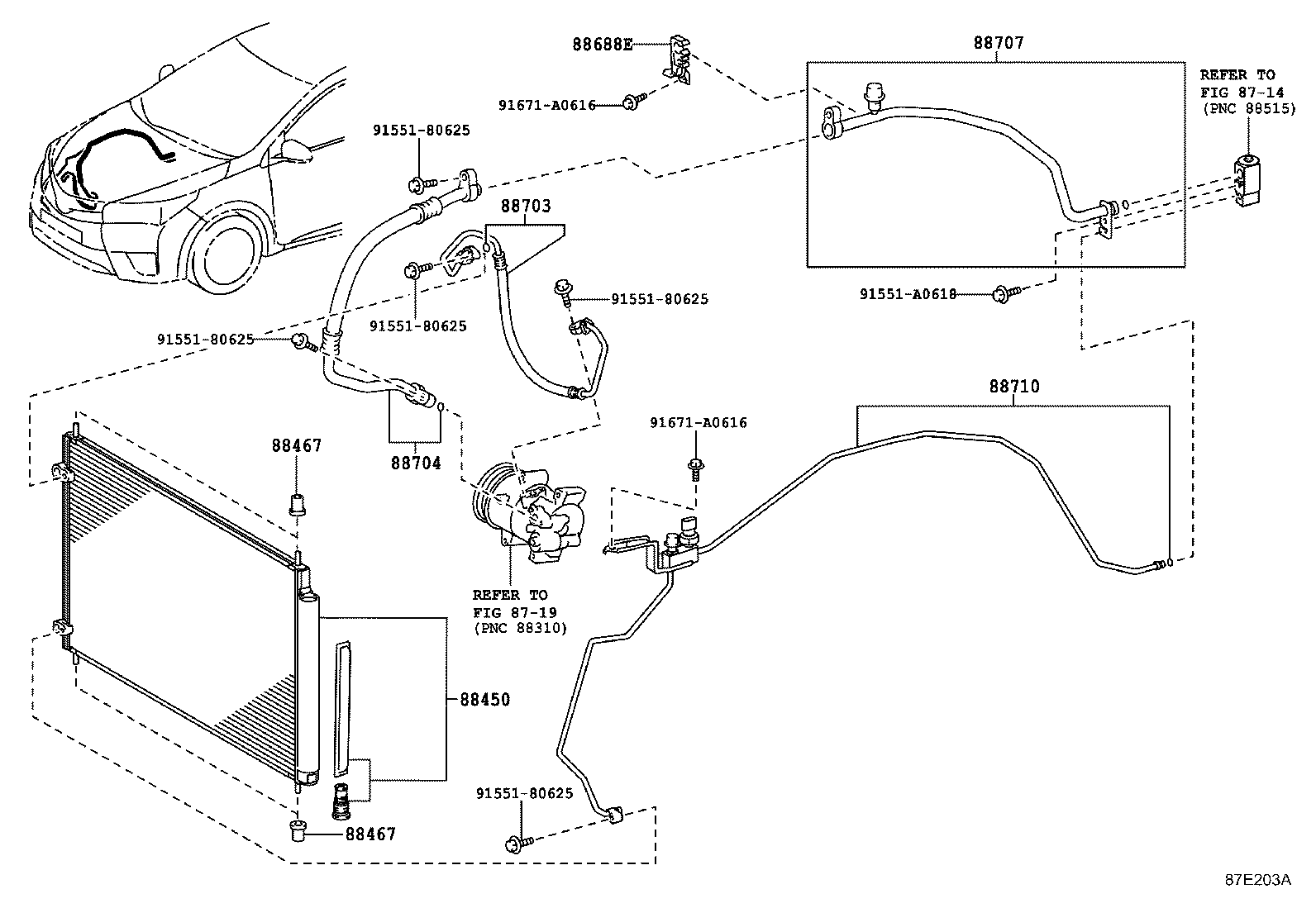

Toyota Corolla/altis NZE170 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88450 - CONDENSER ASSY, W/RECEIVER
88450-02370	NZE170,ZRE171,172..PKN	07/2014 - 07/2017	1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NZE170,ZRE171,172..PKN	10/2013 - 07/2017	4
16716-28010	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NZE170,ZRE171,172..PKN	10/2013 - 07/2017	4
16716-28010	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	4
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-02A30	NZE170,ZRE171,172..PKN	07/2014 - 07/2017	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02A50	NZE170	07/2014 - 07/2017	1
88704 - HOSE SUB-ASSY, SUCTION
88704-02A70	NZE170	07/2014 - 07/2017	1
88707 - PIPE SUB-ASSY, SUCTION
88707-02311	NZE170,ZRE171,172..PKN	04/2017 - 07/2017	1
88707-02310	NZE170,ZRE171,172..PKN	07/2014 - 04/2017	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-02A40	NZE170,ZRE171,172..PKN	07/2014 - 04/2017	1
88710-02A41	NZE170,ZRE171,172..PKN	04/2017 - 07/2017	1
Common parts
91551-80625
91551-A0618
91671-A0616
Linked diagrams
8714
8719

NZE170R-GEPDKP (2014)
