NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1611- )RHD..ARL,GEN,IDN,MA,SGP,TH ; (1703-)IND ; (1707- )PKN

Click highlighted areas on diagram

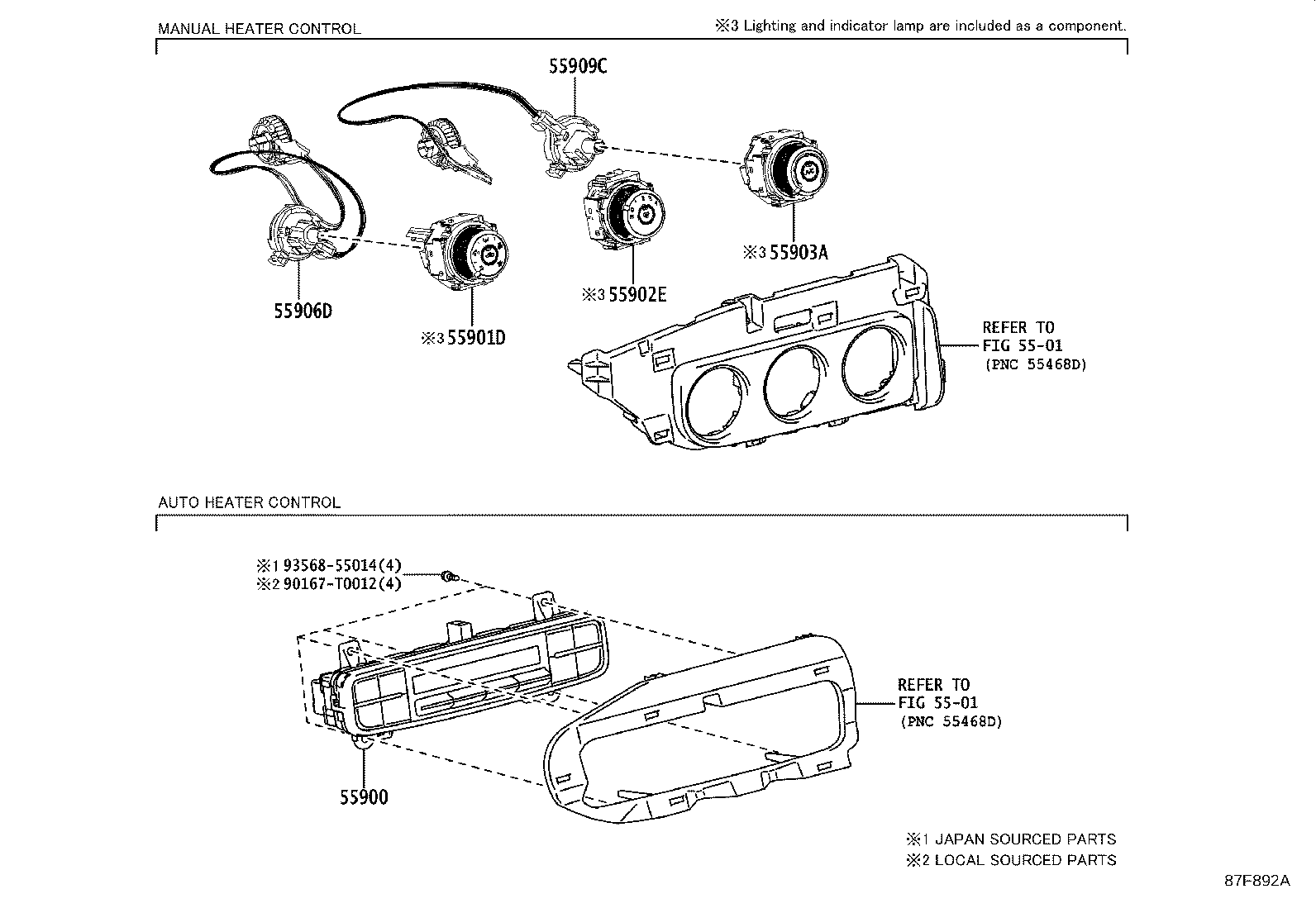

HEATER CONTROL PANEL

diagram 5501 5501 55900 55901D 55902E 55903A 55906D 55909C 90167T0012 9356855014
Part # Description Qty Price
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-02170

ZRE172..RHD..(D,N);ZRE171,172..RHD..(18G,XLI);NZE170,ZRE171..(4FC,5F)..PKN;ZRE171..(CVT,MTM)..(GEN,PKN,TH);ZRE171,172..(16E,18E,J)..(HTWC,HTWCF)..(IND,PHL,TH,VN)

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-02180

ZRE172..RHD..(D,N);ZRE171,172..RHD..(18G,XLI);NZE170,ZRE171..(4FC,5F)..PKN;ZRE171..(CVT,MTM)..(GEN,PKN,TH);ZRE171,172..(16E,18E,J)..(HTWC,HTWCF)..(IND,PHL,TH,VN)

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-02310

ZRE171..RHD..XLI;ZRE172..RHD..(D,N);ZRE172..6F..(18E,J);ZRE171..6F..(GEN,PKN);NZE170,ZRE171..(4FC,5F)..PKN

 1
55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2
55906-0K010

ZRE171..4FC..N;ZRE171..16E..PHL;ZRE172..RHD..(D,N);ZRE171,172..RHD..(18G,XLI);ZRE171..(CVT,MTM)..(GCC,GEN,PKN,TH);NZE170,ZRE172,173..(18E,GLI,J,XLI)..(GCC,IND,PKN,TH,VN)

 1
55906-0K010

NZE170,ZRE171,172..PKN

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K010

ZRE171..4FC..N;ZRE171..RHD..XLI;ZRE172..RHD..(D,N);ZRE171..(CVT,MTM)..(GCC,GEN,PKN);NZE170,ZRE172,173..(18E,GLI,J,XLI)..(GCC,IND,PKN,VN)

 1
55909-0K010

NZE170,ZRE171,172..PKN

 1
Common parts
90167-T0012
93568-55014
Linked diagrams
5501
