NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )PKN

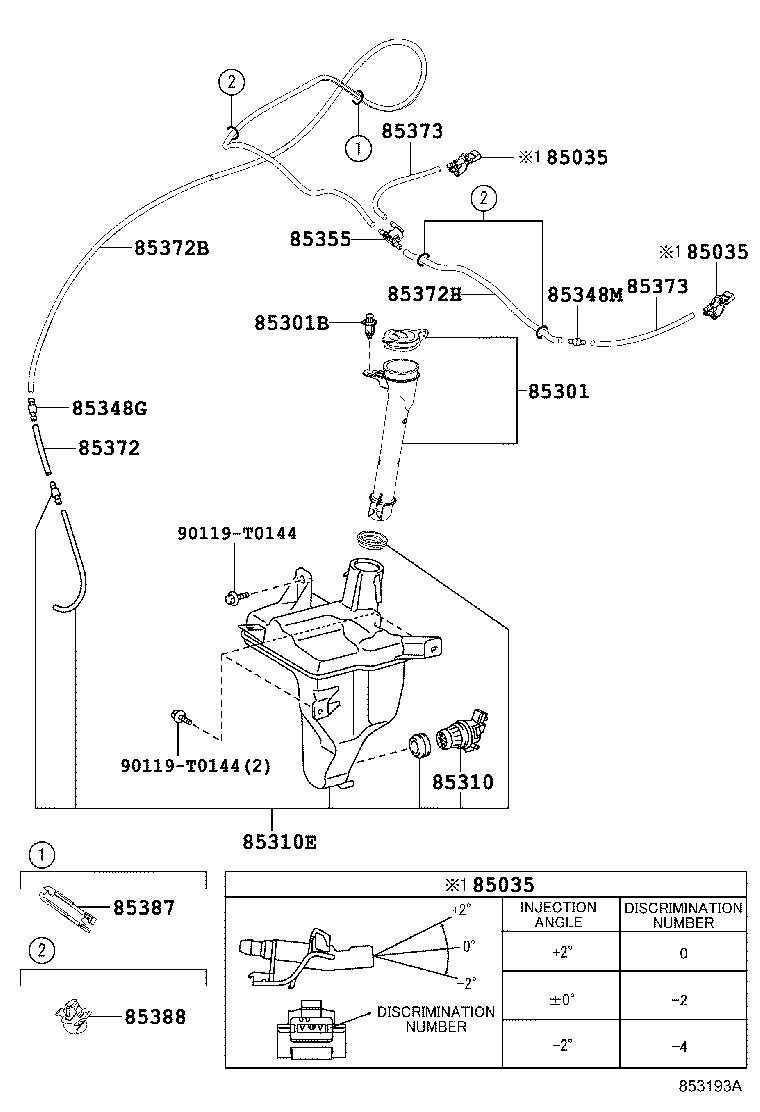

Click highlighted areas on diagram

diagram 85035 85035 85035 85301 85301B 85310 85310E 85348G 85348M 85355 85372 85372B 85372H 85373 85373 85387 85388 90119T0144 90119T0144
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

NZE170,ZRE171,172..PKN

ANGLE 0

 2
85381-12410

NZE170,ZRE171,172..PKN

ANGLE -2

 2
85381-12400

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

ANGLE 0

 2
85381-12410

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

ANGLE -2

 2
85381-12420

NZE170,ZRE171,172..PKN

ANGLE +2

 2
85381-12420

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

NZE170,ZRE171,172..PKN

ANGLE 0

 2
85381-12410

NZE170,ZRE171,172..PKN

ANGLE -2

 2
85381-12400

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

ANGLE 0

 2
85381-12410

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

ANGLE -2

 2
85381-12420

NZE170,ZRE171,172..PKN

ANGLE +2

 2
85381-12420

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

NZE170,ZRE171,172..PKN

ANGLE 0

 2
85381-12410

NZE170,ZRE171,172..PKN

ANGLE -2

 2
85381-12400

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

ANGLE 0

 2
85381-12410

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

ANGLE -2

 2
85381-12420

NZE170,ZRE171,172..PKN

ANGLE +2

 2
85381-12420

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

ANGLE +2

 2
85301 - INLET SUB-ASSY, WASHER
85301-02090

NZE170,ZRE171,172..PKN

 1
85301B - CLIP, WASHER
90467-07076C7

NZE170,ZRE171,172..PKN

BLACK

 1
90467-07076C7

ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SGP,TAIW,TH

BLACK

 1
90467-07076C0

NZE170,ZRE17#..PKN,VN

BLACK

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-71020

NZE170,ZRE171,172..PKN

 1
85330-71020

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
85310E - JAR & PUMP ASSY, WASHER
85310-02620

NZE170,ZRE171,172..PKN

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-06101

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-06101

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
85321-28020

NZE170,ZRE171,172..PKN

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33160

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

L=40

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-59119

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

L=1870

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90068-59120

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

L=370

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-59066

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

L=180

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-59066

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

L=180

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387-02330

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
85371-12040

NZE170,ZRE171,172..PKN

 3
Common parts
90119-T0144
