NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )NZE170

Click highlighted areas on diagram

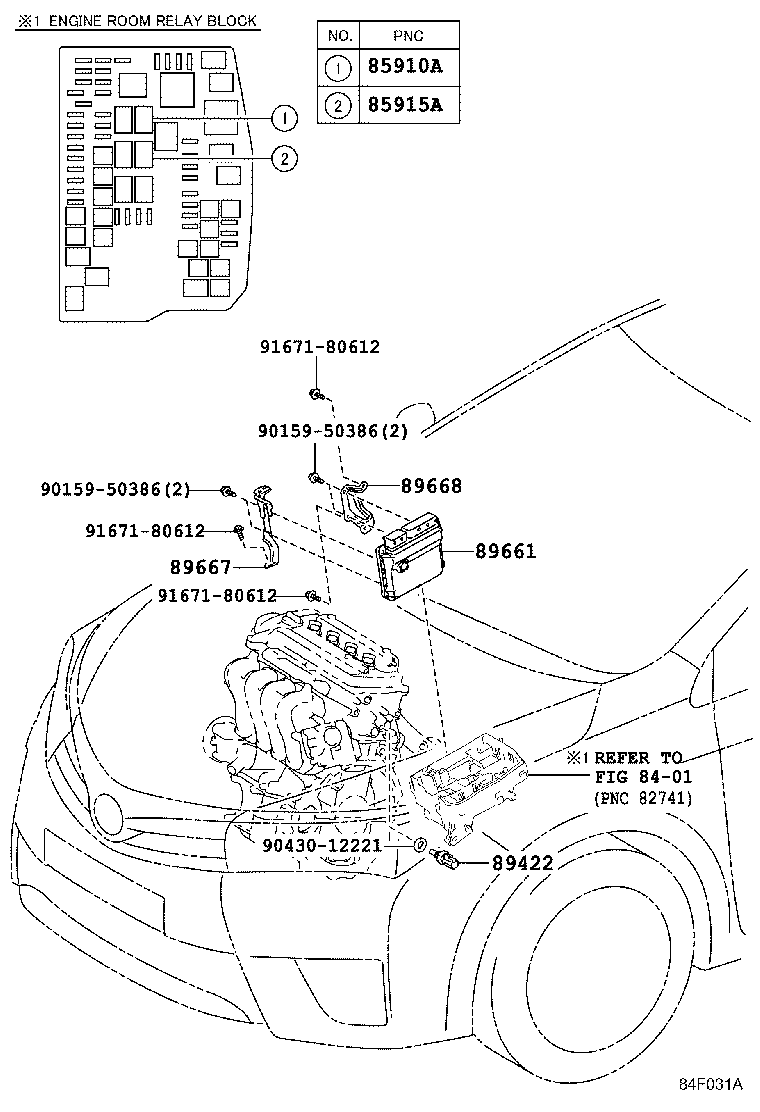

diagram 8401 85910A 85915A 89422 89661 89667 89668 9015950386 9015950386 9043012221 9167180612 9167180612 9167180612
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
89422-33030

NZE170,ZRE171,172..PKN

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0ZE50

NZE170..4FC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-02340

NZE170;ZRE171..(ATM,CVT)..(CNG,HTWC)..(GEN,PKN,TH)

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02320

NZE170;ZRE171..(ATM,CVT)..(CNG,HTWC)..(GEN,PKN,TH)

 1
Common parts
90159-50386
90430-12221
91671-80612
Linked diagrams
8401
